GENERAL
M6040, M7040, WSM
G-69

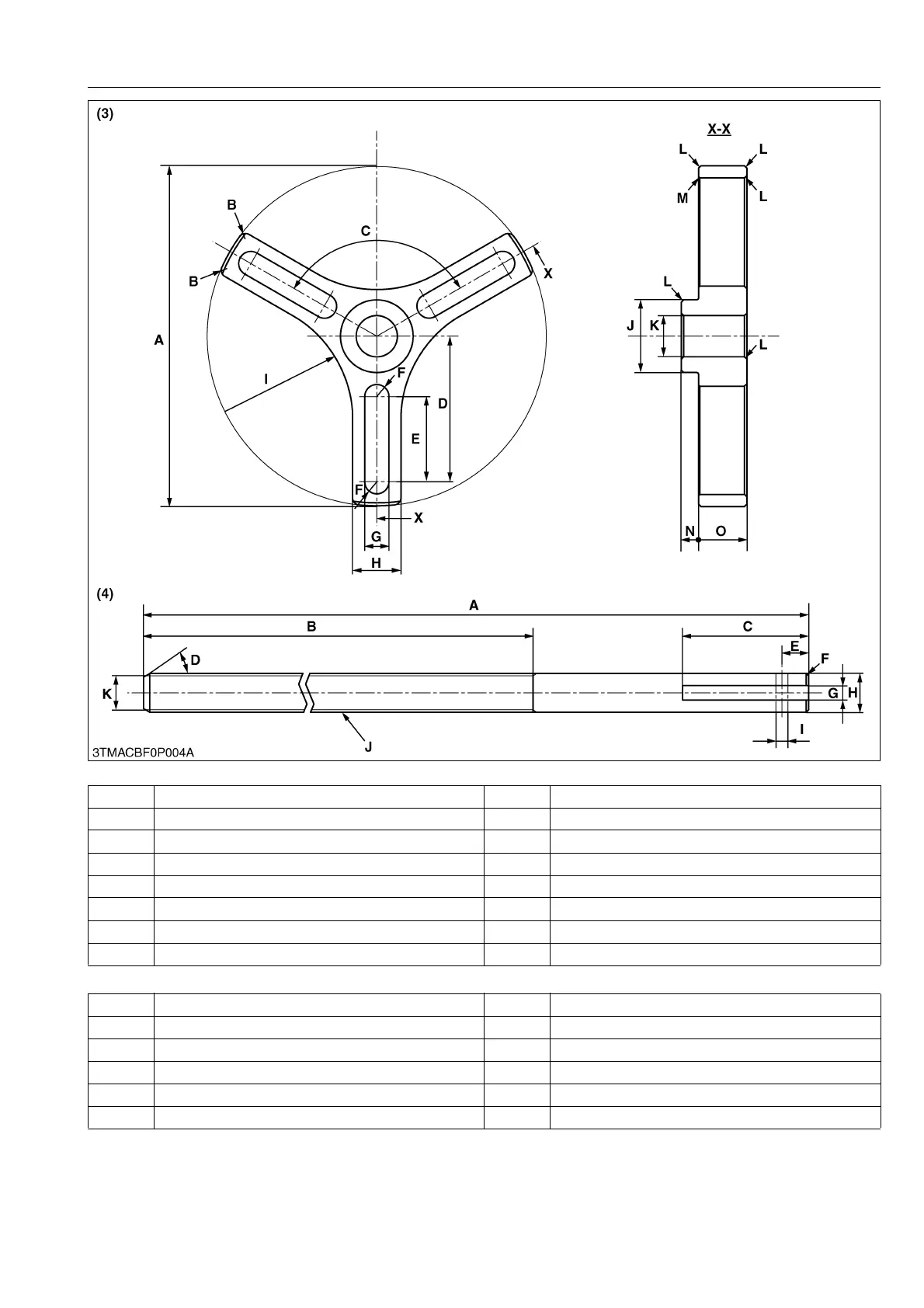

(3) Tool 1 (Body)
(4) Tool 2 (Center Bar)
9Y1210143GEG0100US0
A 140 mm dia. (5.51 in. dia.) I Radius 50 mm (2.0 in.)
B Radius 3 mm (0.1 in.) J 30 mm dia. (1.2 in. dia.)
C 2.09 rad (120 °) K 17 mm dia. (0.67 in. dia.)
D 60 mm (2.4 in.) L Chamfer 1.0 mm (0.039 in.)
E 35 mm (1.4 in.) M Chamfer 0.5 mm (0.02 in.)
F Radius 5 mm (0.2 in.) N 7 mm (0.3 in.)
G 10.00 to 10.27 mm (0.3937 to 0.4043 in.) O 20 mm (0.79 in.)
H 20 mm (0.79 in.) X (X-X) View direction
A 330 mm (13.0 in.) G 6.00 to 6.58 mm (0.237 to 0.259 in.)
B 210 mm (8.27 in.) H 16 mm dia. (0.63 in. dia.)
C 52 mm (2.0 in.) I 5.00 to 5.18 mm dia. (0.197 to 0.203 in. dia.)
D 0.52 rad (30 °) J M16 × P1.5 mm
E 11 mm (0.43 in.) K 13 mm dia. (0.51 in. dia.)
F Chamfer 1.0 mm (0.039 in.)
KiSC issued 07, 2012 A
