GENERAL
M6040, M7040, WSM
G-70

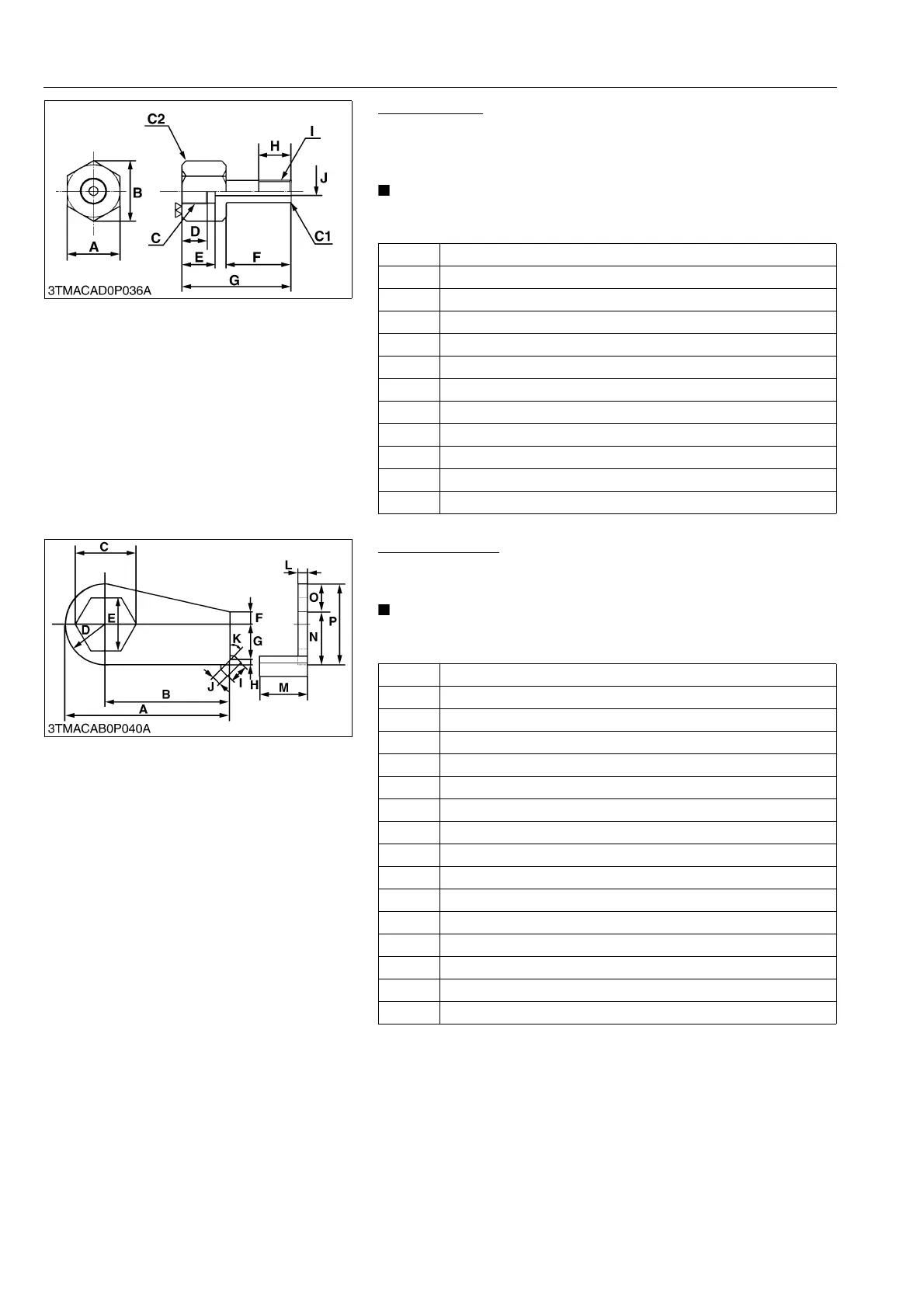

Valve Adaptor
Application
• Use for measuring the system pressure of shuttle valve, 4WD
and PTO clutch valve.
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0101US0
Locking Wrench
Application
• Use for locking pinion nut.
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0102US0
A 24 mm (0.94 in.)
B 27.7 mm (1.09 in.)
C PS1/4
D 11 mm (0.43 in.)
E 15 mm (0.59 in.)
F 40 mm (1.57 in.)
G 60 mm (2.36 in.)
H 15 mm (0.59 in.)
I PT1/8
J 4 mm dia. (0.15 in. dia.)
C1 Chamfer 1 mm (0.039 in.)
C2 Chamfer 2 mm (0.079 in.)
A 170 mm (6.69 in.)
B 130 mm (5.12 in.)
C 63.5 mm (2.5 in.)
D 40 mm radius (1.57 in. radius)
E 55 mm (2.17 in.)
F 15 mm (0.59 in.)
G 35 mm (1.38 in.)
H 5 mm (0.2 in.)
I 20 mm (0.55 in.)
J 10 mm (0.39 in.)
K 0.78 rad (45 °)
L 10 mm (0.39 in.)
M 50 mm (1.97 in.)
N 55 mm (2.17 in.)
O 25 mm (0.97 in.)
P 80 mm (3.15 in.)
KiSC issued 07, 2012 A
