GENERAL
M6040, M7040, WSM
G-71

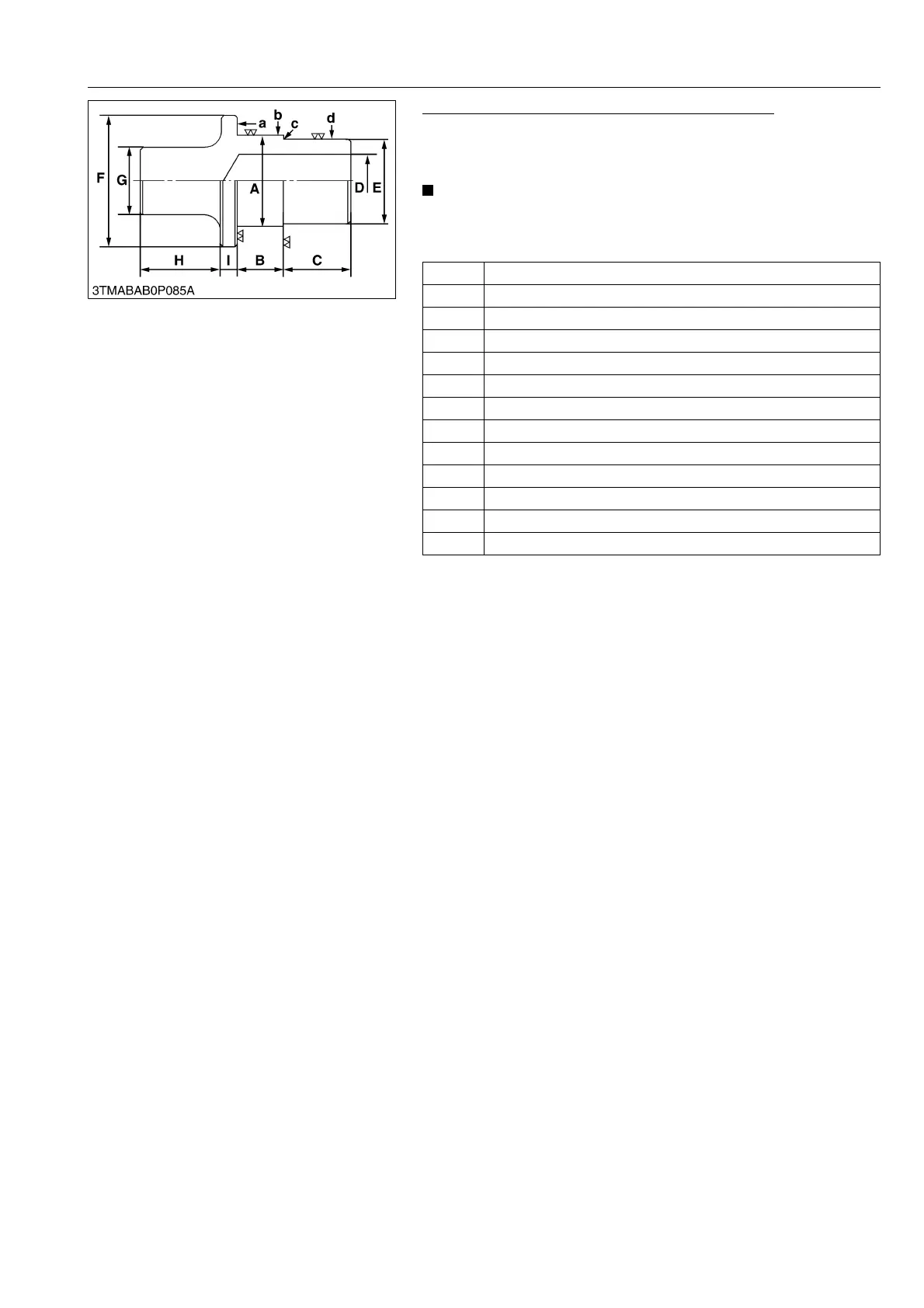

Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application
• Use for replacing the hydraulic arm shaft bushings in the
hydraulic cylinder body.
NOTE
• The following special tools are not provided, so make them
referring to the figure.
• Unless otherwise specified: All surface 12.5 µm (0.0005 in.)
9Y1210143GEG0103US0
A 49.85 to 49.95 mm (1.963 to 1.966 in.)
B 15 mm (0.59 in.)
C 50 mm (1.969 in.)
D 30 mm (1.18 in.)
E 44.85 to 44.95 mm (1.766 to 1.770 in.)
F 78 mm dia. (3.07 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 20 mm (0.79 in.)
a 6.3 µm (0.00025 in.)
b 6.3 µm (0.00025 in.)
c 6.3 µm (0.00025 in.)
d 6.3 µm (0.00025 in.)
KiSC issued 07, 2012 A
