GENERAL
M6040, M7040, WSM
G-67

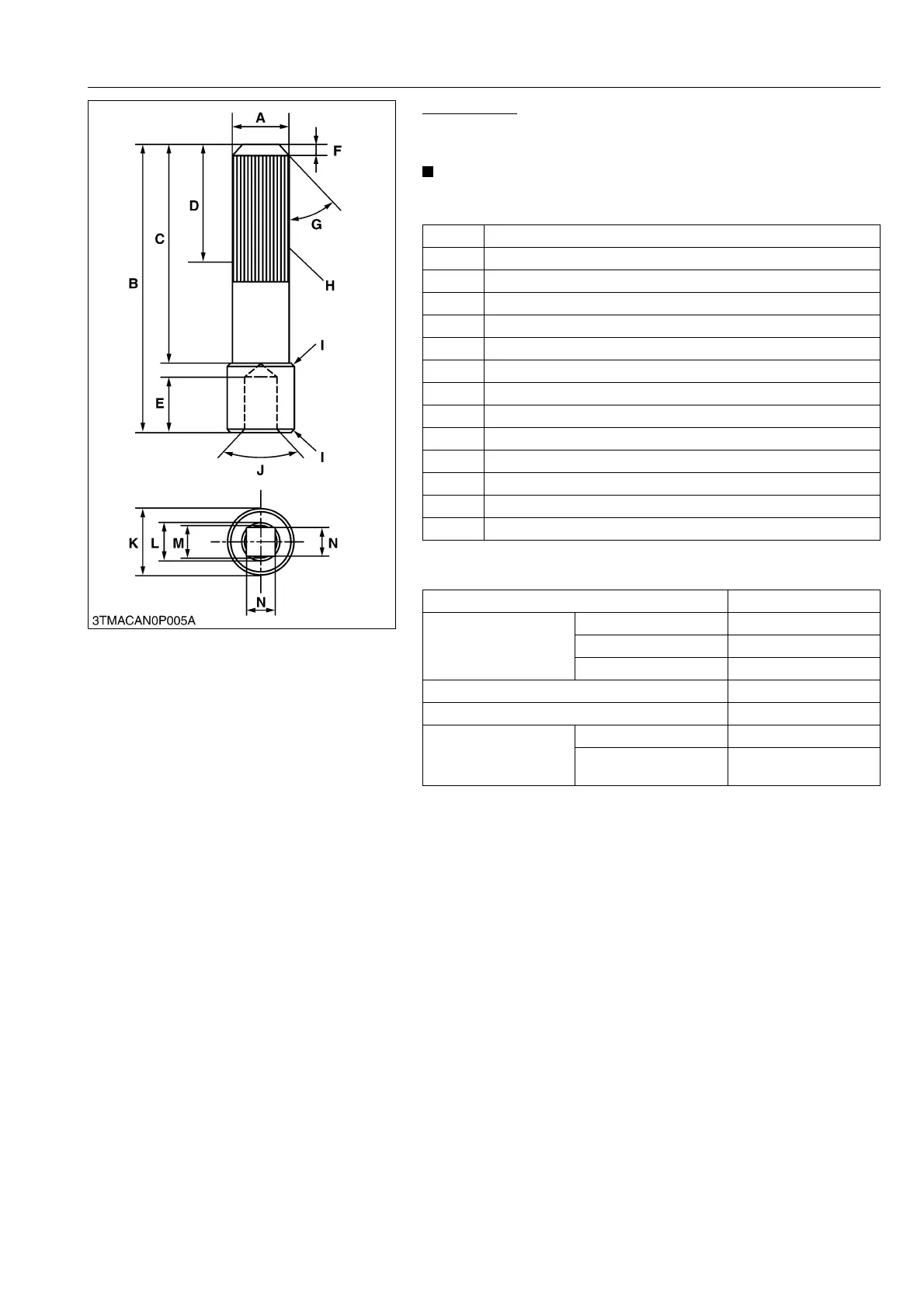

LSD Adaptor
Application
• Use for measuring the turning torque of LSD.
• The following special tools are not provided, so make them
referring to the figure.
(Involute Spline)
• EXTERNAL 25 × 24Z × 1.0 m × 30
(Reference)
• This tool can be made by welding the yoke shaft R.H.
(3C091-43210) and socket wrench.
9Y1210143GEG0097US0
A 24.65 to 24.80 mm dia. (0.970 to 0.976 in. dia.)
B 131.85 to 132.15 mm (5.19 to 5.20 in.)
C 99.25 to 100.75 mm (3.91 to 3.97 in.)
D 54 to 60 mm full spline (2.12 to 2.36 in. full spline)
E 22.4 to 28.4 mm (0.88 to 1.11 in.)
F 4 to 6 mm (0.16 to 0.23 in.)
G 0.52 rad (30 °)
H Involute spline (refer to below)
I Chamfer 3.0 mm (0.12 in.)
J 1.05 rad (60 °)
K 29.5 to 30.5 mm dia. (1.16 to 1.20 in. dia.)
L 17.87 mm dia. (0.7 in. dia.)
M 13.95 to 14.25 mm dia. (0.55 to 0.56 in. dia.)
N 12.75 to 12.90 mm square (0.50 to 0.51 in. square)
Coefficient of profile shifting 0.000
Tool
Tooth form Stub tooth
Module 1.00
Pressure angle 0.52 rad (30 °)
Number of teeth 24
Diameter of basic pitch circle 24 mm
Tooth thickness
Grade Class a
Over pitch diameter
26.534 to 26.645 mm
(Pin diameter = 1.8 mm)
