Adaptor for Sliding Hammer
Application
• Use to removing the front axle bevel pinion shaft and hydraulic
pump drive gear pin with sliding hammer.

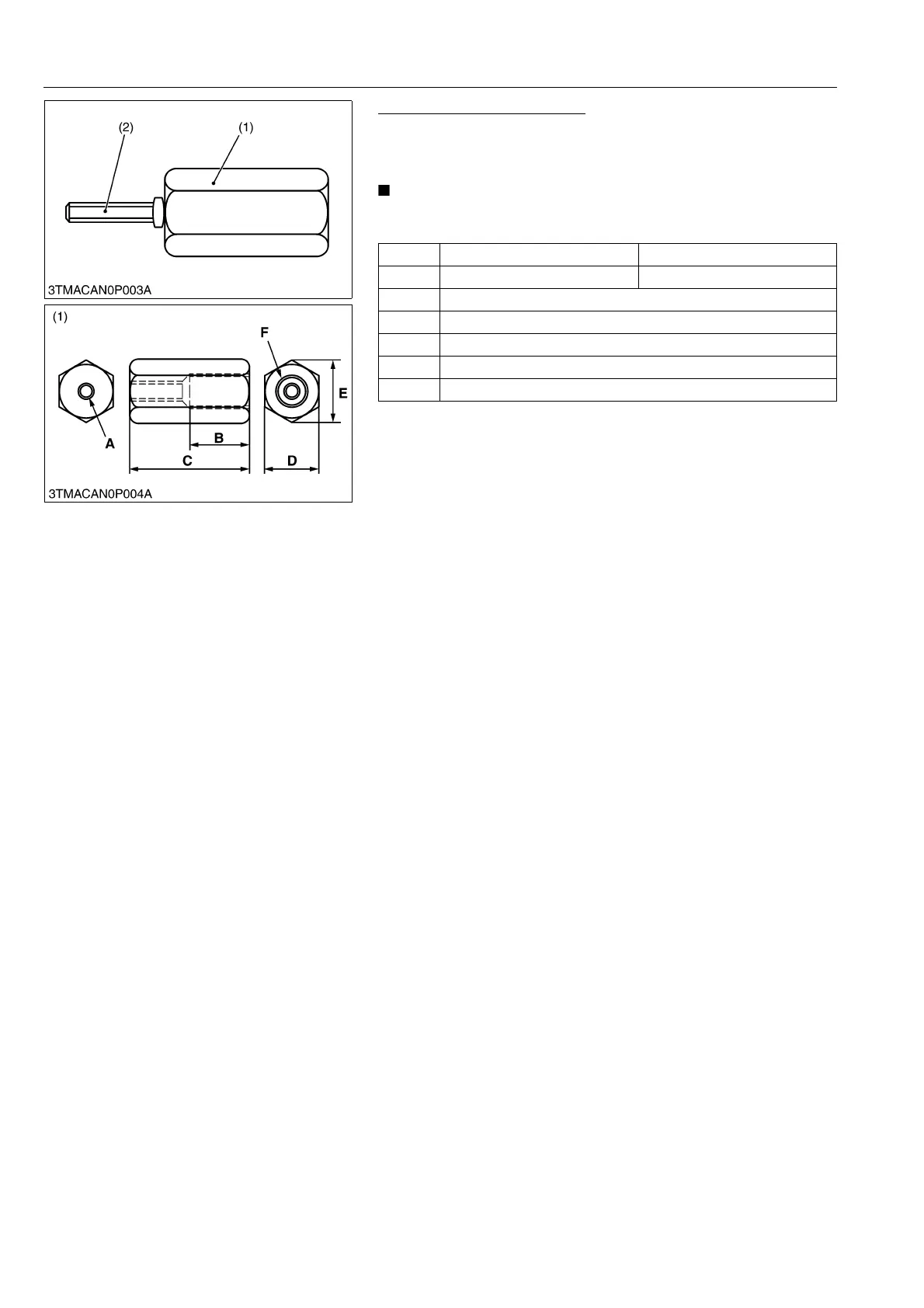

• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0096US0
Front axle bevel pinion shaft Hydraulic pump drive gear pin
A M6 × P1.0 M8 × P1.25
B 25 mm (0.98 in.)
C 50 mm (1.97 in.)
D 23 mm (0.91 in.)
E 27 mm (1.06 in.)
F M14 × P1.5
(1) Adaptor (M6) (2) Stud Bolt (M6 × P1.0)
Stud Bolt (M8 × P1.25)
