TRANSMISSION
M6040, M7040, WSM
3-S46

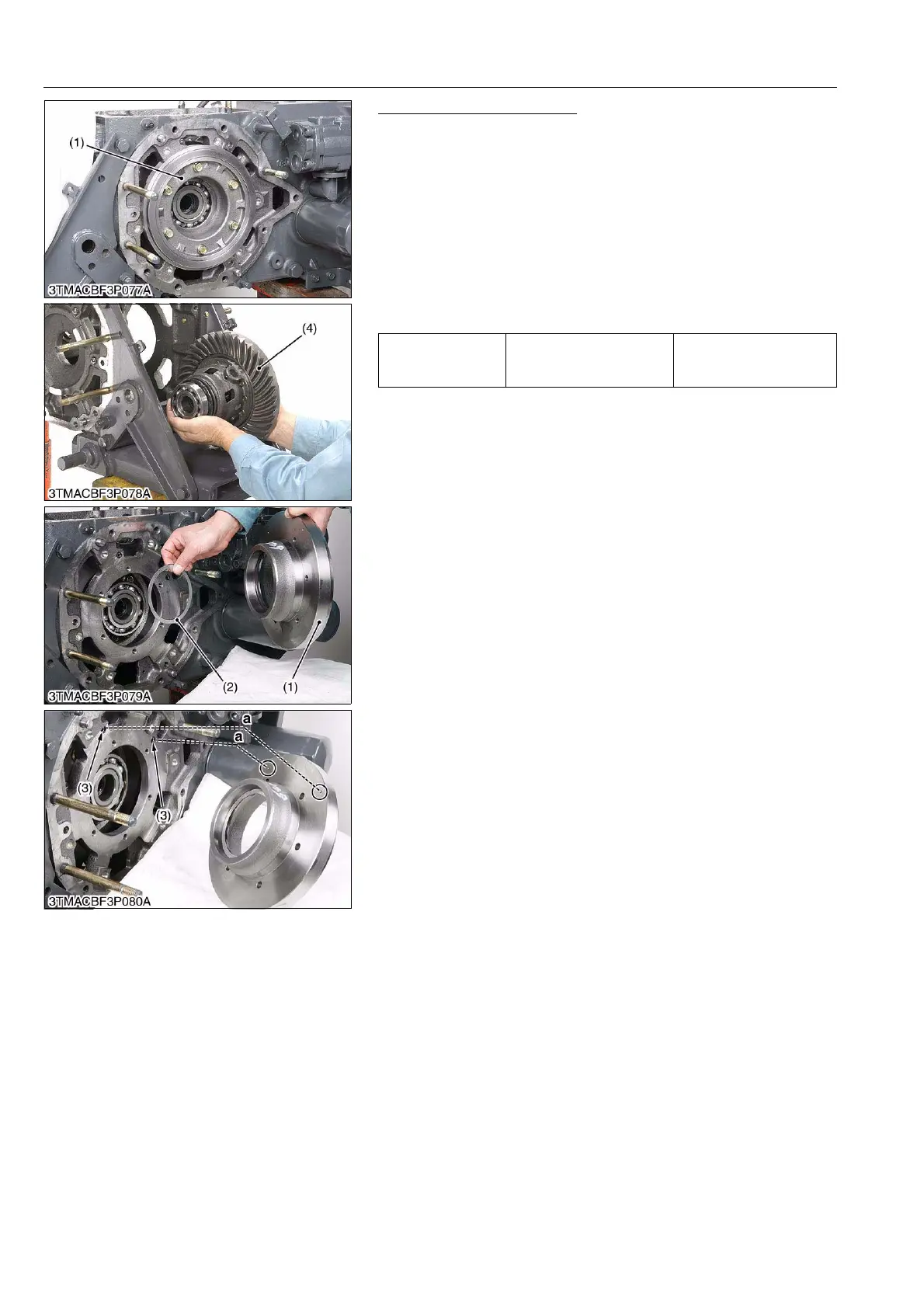

Differential Gear Assembly
1. Remove the differential bearing support (1), noting the number
of shims (2).
2. Take out the differential gear assembly (4) from transmission
case.
(When reassembling)
• Be sure to fix the O-rings (3).
• Align the oil passage "a" as shown photo.
• Be sure to adjust the turning torque of spiral bevel pinion shaft
(see page 3-S56).
• Be sure to adjust the backlash and tooth contact between the
spiral bevel gear and spiral bevel pinion shaft (see page 3-S57).
9Y1210143TRS0077US0
Tightening torque
Differential bearing support
mounting screw
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Differential Support
(2) Shim
(3) O-ring
(4) Differential Gear Assembly
a: Oil Passage
To Next Page
