TRANSMISSION
M6040, M7040, WSM
3-M11

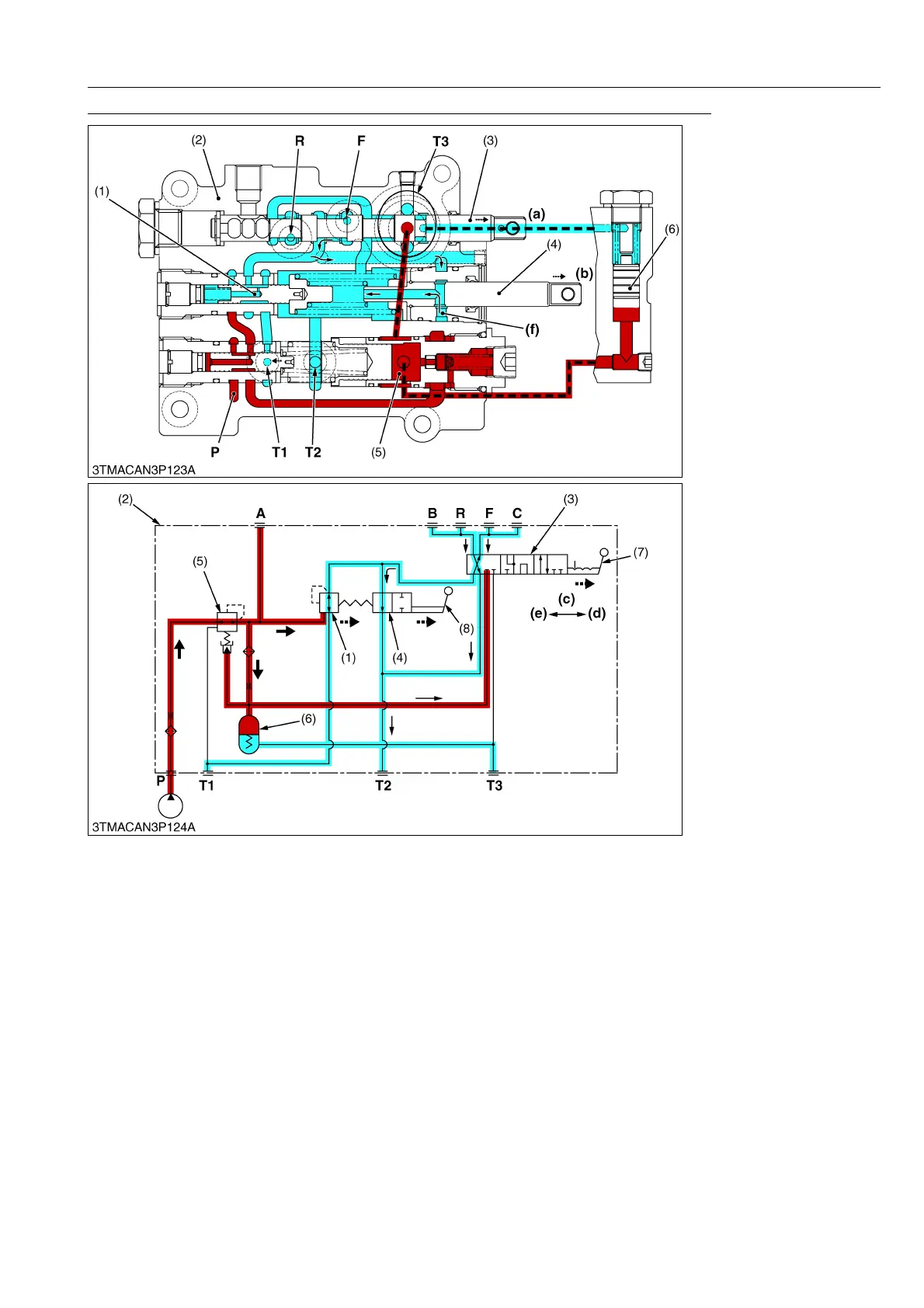

When Clutch Pedal is Depressed (with Shuttle Lever at Reverse or Forward Position)
With the shuttle lever at R or F position, when the clutch pedal is depressed, the inching valve (4) is moved to the
right. And connect the passage 1 (f) to T2 port. As the proportionally reducing valve (1) is moved to the right by
pressure difference, R port (or F port) and T2 port are connected.
The oil in the shuttle clutch returns into the transmission case via R port (or F port) through the proportionally
reducing valve (1) and T2 port. This cause the shuttle clutch to be set to off.
As a result, even when the proportionally reducing valve (1) does not move, the oil passage from R port (or F side)
to T2 port is secured.
9Y1210143TRM0011US0
(1) Proportionally Reducing
Valve
(2) Shuttle Valve
(3) Shuttle Shift Spool
(Forward, Reverse)
(4) Inching Valve
(5) Modulating Valve
(6) Accumulate Valve
(7) Shuttle Lever
(8) Clutch Pedal
A: Check Port (Modulation)
B: Check Port (Reverse)
C: Check Port (Forward)
P: P Port (Pump)
T1 to T3: To Transmission
Case
(a) Connect to Shuttle Lever
(b) Connect to Clutch Pedal
(c) Neutral
(d) Forward
(e) Reverse
(f) Passage f
To Next Page
