TRANSMISSION
M6040, M7040, WSM
3-S51

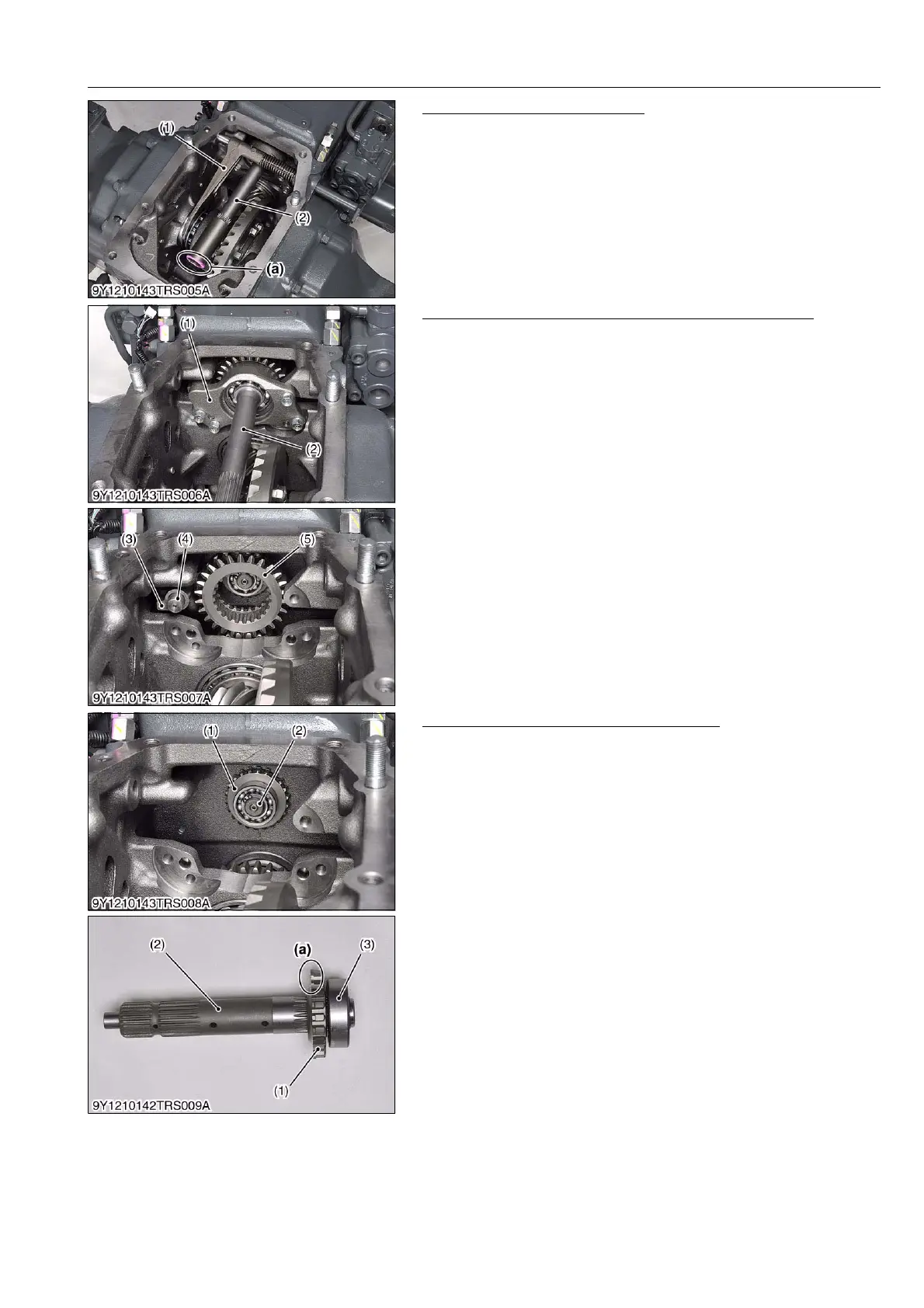

Differential Pipe and Coupling
1. Remove the coupling (2).
2. Remove the differential lock fork (1).
(When reassembling)
• When assemble the coupling (2), toward the ID paint mark (a)
to the rearward.
9Y1210143TRS0106US0
Bearing Holder, Shift Fork and 26T Ground PTO Gear
1. Remove the bearing holder (1) with propeller shaft 3 (2).
2. Remove the 26T ground PTO gear (5) and shift fork (3) with fork
rod (4).
(When reassembling)
• When assemble the 26T ground PTO gear (5), toward the
groove for the shift fork (3) to the rearward.
9Y1210143TRS0107US0
60T Coupling Gear and Propeller Shaft 2
1. Remove the 60T coupling gear (1) with propeller shaft 2 (2).
2. Remove the external circlip, bearing (3) and 60T coupling gear
(1).
(When reassembling)
• When assemble the 60T coupling gear (1), toward the stopper
portion (a) to the forward.
9Y1210143TRS0108US0
(1) Differential Lock Fork
(2) Coupling
(a) ID Paint Mark
(1) Bearing Holder
(2) Propeller Shaft 3
(3) Shift Fork
(4) Fork Rod
(5) 26T Ground PTO Gear
(1) 60T Coupling Gear
(2) Propeller Shaft 2
(3) Bearing
(a) Stopper Portion of 60T Coupling
Gear
KiSC issued 07, 2012 A
