FRONT AXLE
M6040, M7040, WSM
6-S17

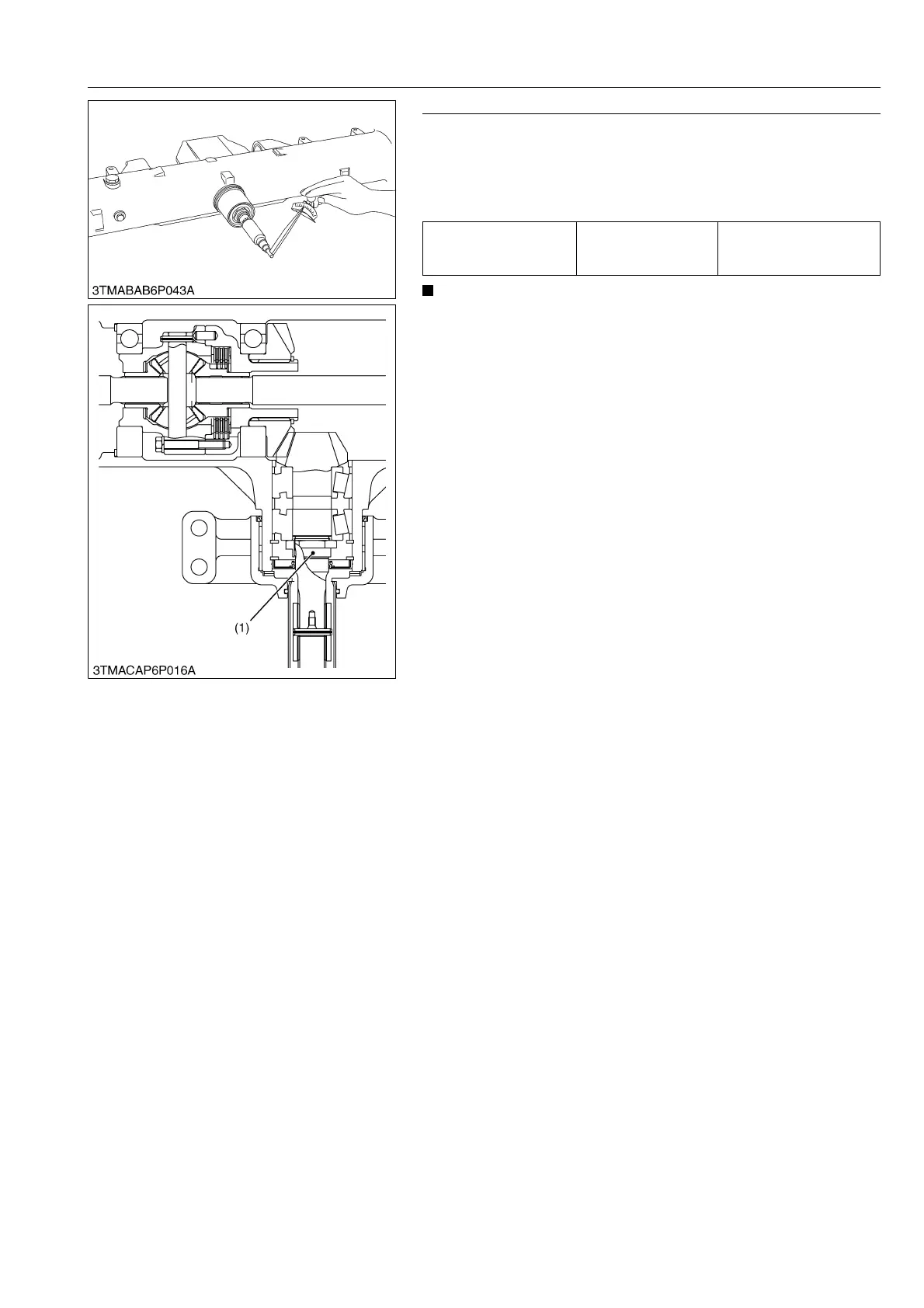

Turning Torque of Spiral Bevel Pinion Shaft (Pinion Shaft Only)
1. Install the spiral bevel pinion shaft assembly only to the front
axle case
2. Measure the turning torque of spiral bevel pinion shaft.
3. If the turning torque is not within the factory specifications,
adjust with the lock nut (1).
• After turning torque adjustment, be sure to stake the lock
nut.
9Y1210143FAS0028US0
Turning torque of spiral
bevel pinion shaft
Factory specification
1.43 to 1.56 N·m
0.145 to 0.160 kgf·m
1.05 to 1.15 lbf·ft
(1) Lock Nut
