REAR AXLE
M6040, M7040, WSM
4-S9

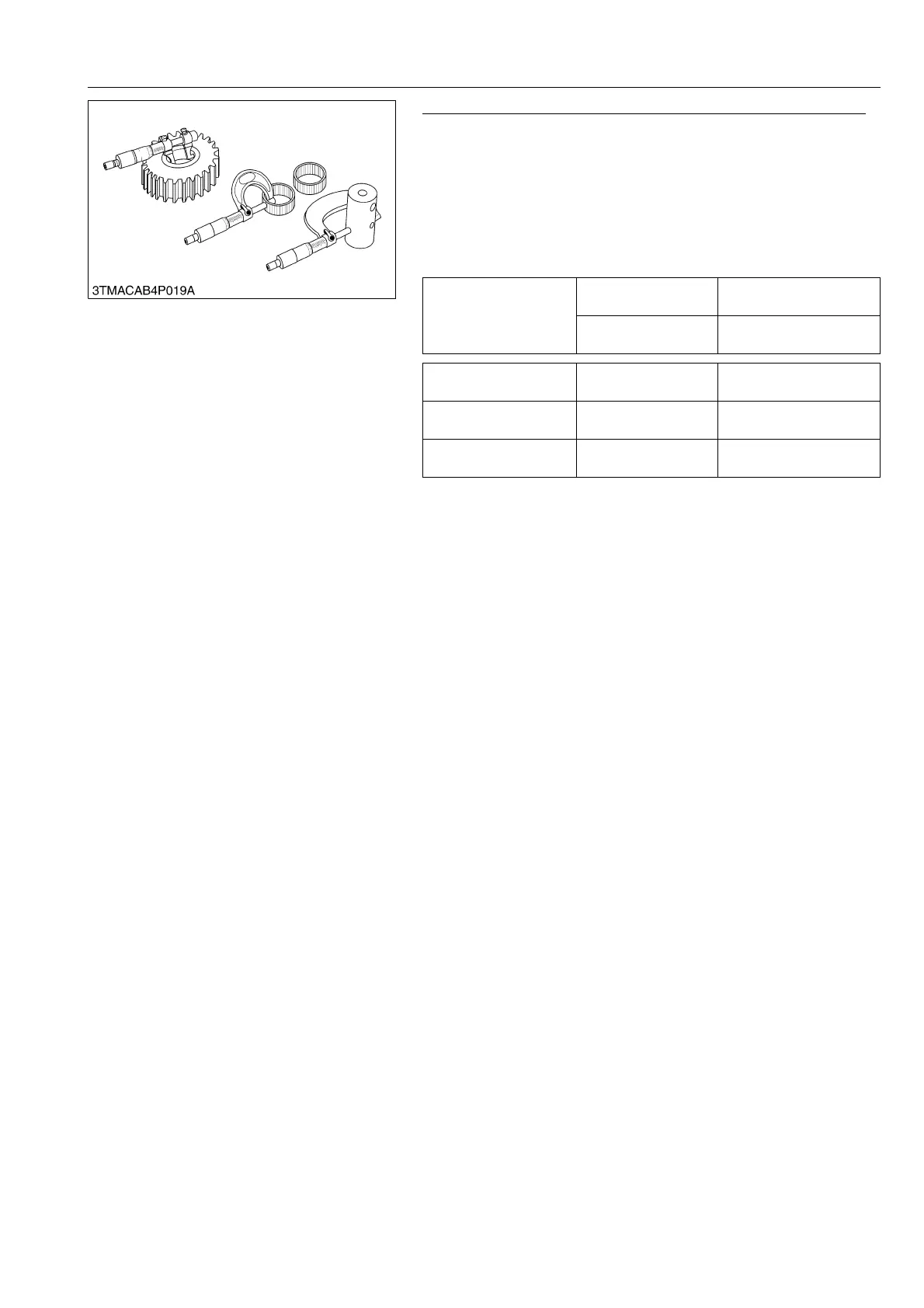

Clearance between Planetary Gear and Planetary Gear Shaft
1. Measure the planetary gear shaft O.D. (rubbing surface).
2. Measure the planetary gear I.D. (rubbing surface).
3. Measure the O.D. of the two needles installed diagonally in the
needle bearing.
4. Calculate the clearance.
5. (Clearance = Planetary gear I.D. – {(2 × Needle O.D.) +
Planetary gear shaft O.D.}).
6. If the clearance exceeds the allowable limit, replace them.
9Y1210143RAS0014US0
Clearance between
planetary gear and
planetary gear shaft
Factory specification
0.009 to 0.046 mm
0.00035 to 0.00180 in.
Allowable limit
0.30 mm
0.0118 in.
Planetary gear shaft
O.D.
Factory specification
29.991 to 30.000 mm
1.18075 to 1.18110 in.
Planetary gear I.D. Factory specification
38.009 to 38.025 mm
1.4965 to 1.4970 in.
Needle O.D. Factory specification
3.994 to 4.000 mm
0.1573 to 0.1674 in.
KiSC issued 07, 2012 A
