BRAKES
M6040, M7040, WSM
5-S16

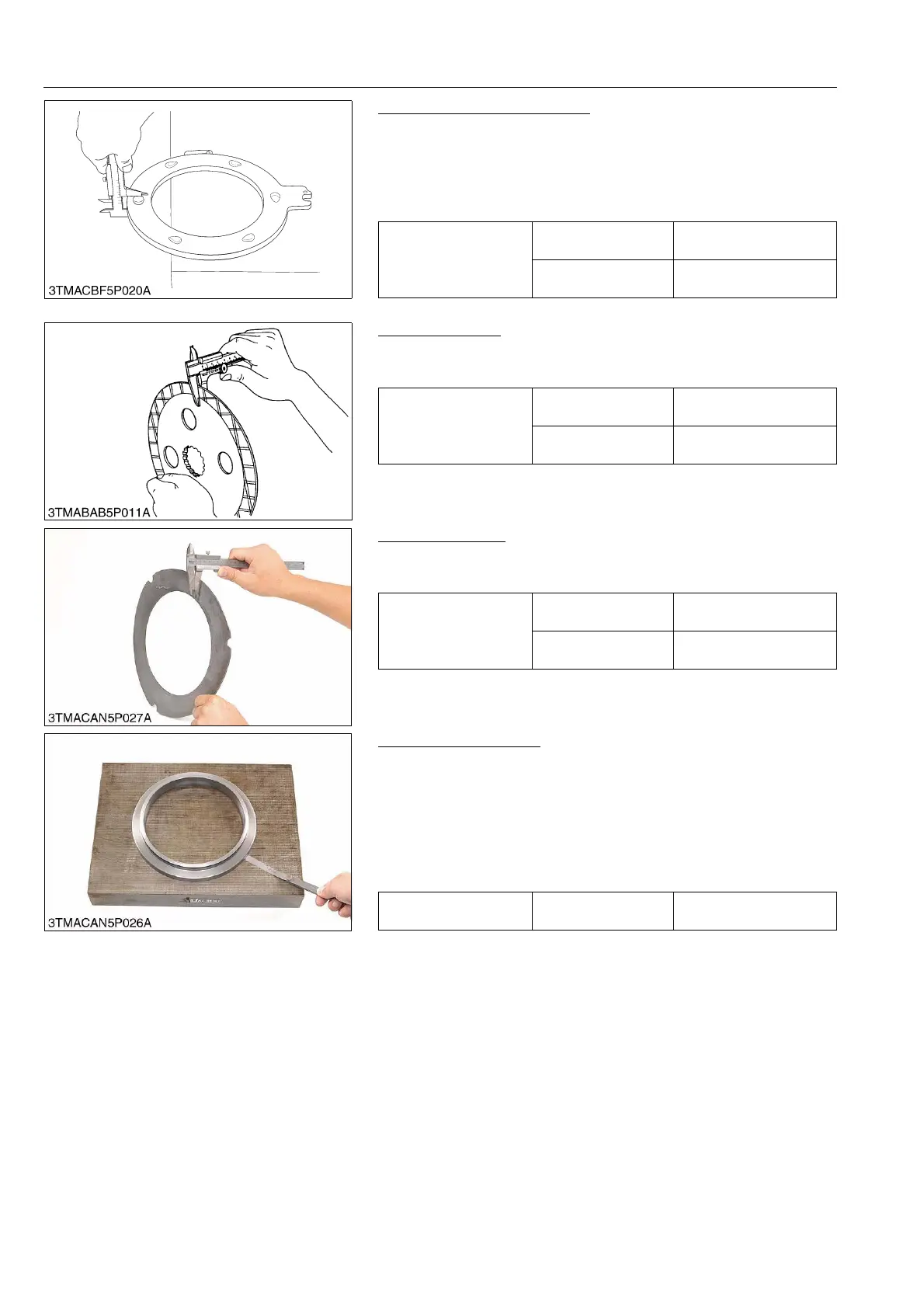

Height of Cam Plate and Ball
1. Measure the dimensions of the cam plate with the ball installed.
2. If the measurement is less than the allowable limit, replace the
cam plate and balls.
3. Inspect the ball holes of cam plate for uneven wear. If the
uneven wear is found, replace it.
9Y1210143BRS0029US0
Brake Disc Wear
1. Measure the brake disc thickness with vernier calipers.
2. If the measurement is less than the allowable limit, replace it.
9Y1210143BRS0030US0
Brake Plate Wear
1. Measure the brake plate thickness with vernier calipers.
2. If the measurement is less than the allowable limit, replace it.
9Y1210143BRS0031US0
Brake Piston Flatness
1. Place the brake piston on flat surface (surface plate) and
determine if a 0.3 mm (0.012 in.) feeler gauge will fit
underneath.
2. Check this at four points on a diagonal line.
3. If it will fit, grind in a circular motion with sandpaper or replace it.
4. Inspect the sliding portion of the brake piston and brake case
interior. If damage or wear is found, replace it.
9Y1210143BRS0032US0
Height of cam plate and
ball
Factory specification
25.45 to 25.55 mm
1.002 to 1.0059 in.
Allowable limit
25.00 mm
0.9843 in.
Brake disc thickness
Factory specification
4.15 to 4.35 mm
0.1634 to 0.1713 in.
Allowable limit
3.3 mm
0.130 in.
Brake plate wear
Factory specification
2.1 to 2.5 mm
0.0827 to 0.0984 in.
Allowable limit
1.5 mm
0.059 in.
Brake piston flatness Allowable limit
0.3 mm
0.012 in.
KiSC issued 07, 2012 A
