FRONT AXLE
M6040, M7040, WSM
6-M1
1. STRUCTURE
The front axle supports the front of tractor and facilitates steering.
NOTE
• Refer to "6. FRONT AXLE" section in the workshop manual of tractor mechanism (Code No. 9Y021-18200).
9Y1210143FAM0001US0

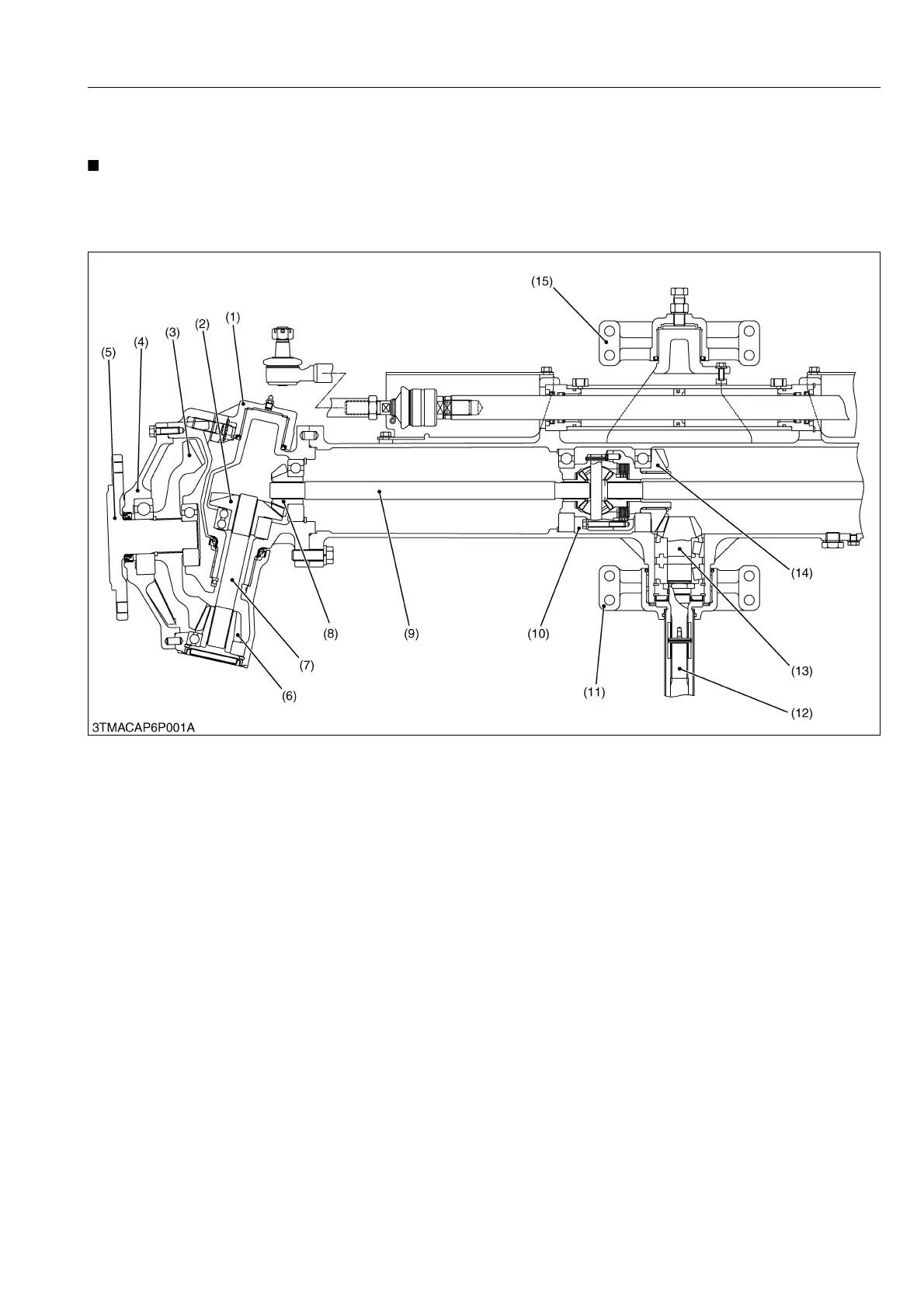

[1] 4 WHEEL DRIVE
9Y1210143FAM0002US0
(1) Front Axle Case Support
(2) 18T Bevel Gear
(3) 51T Bevel Gear
(4) Front Axle Case Cover
(5) Front Axle
(6) 10T Bevel GEar
(7) Bevel Gear Shaft
(8) 10T Bevel Gear
(9) Differential Yoke Shaft
(10) Differential Gear Assembly
(LSD)
(11) Bracket (Rear)
(12) Propeller Shaft
(13) 9T Bevel Pinion Shaft
(14) 21T Bevel Gear
(15) Bracket (Front)
