FRONT AXLE
M6040, M7040, WSM
6-S7

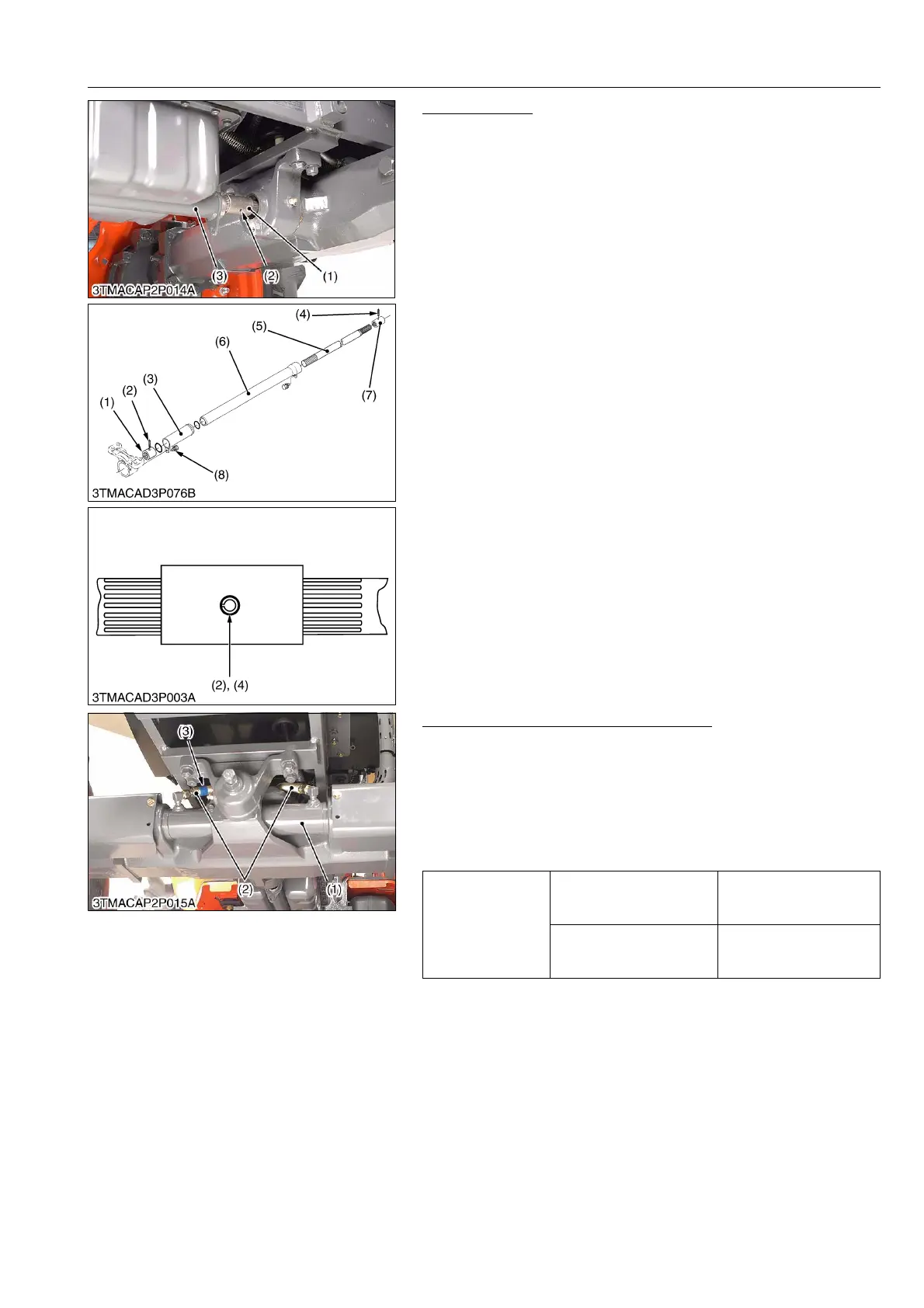

Propeller Shaft
1. Slide the propeller shaft cover (3) after removing the screw (8).
2. Tap out the roll pins (2) and then slide the coupling (1) to the
rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft (5) and pinion
shaft.
• Tap in the roll pins (2) as shown in figure.
9Y1210143ENS0028US0
Front Wheel and Power Steering Hoses
1. Check the front axle and engine are securely mounted on the
disassembly stand.
2. Remove the front wheel.
3. Lift the front axle and remove the front wheels.
4. Disconnect the power steering hoses (1), (2).
(When reassembling)
• Connect the power steering hose with blue tape to the R.H..
9Y1210143FAS0010US0
(1) Coupling
(2) Roll Pin
(3) Propeller Shaft Cover
(4) Roll Pin
(5) Propeller Shaft
(6) Cover
(7) Coupling
(8) Screw
Tightening torque
Power steering hose
retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
Front wheel mounting nut
(M16)
259 to 304 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
(1) Power Steering Hose 1
(2) Power Steering Hose 2
(3) Blue Tape
