STEERING
M6040, M7040, WSM
7-S7

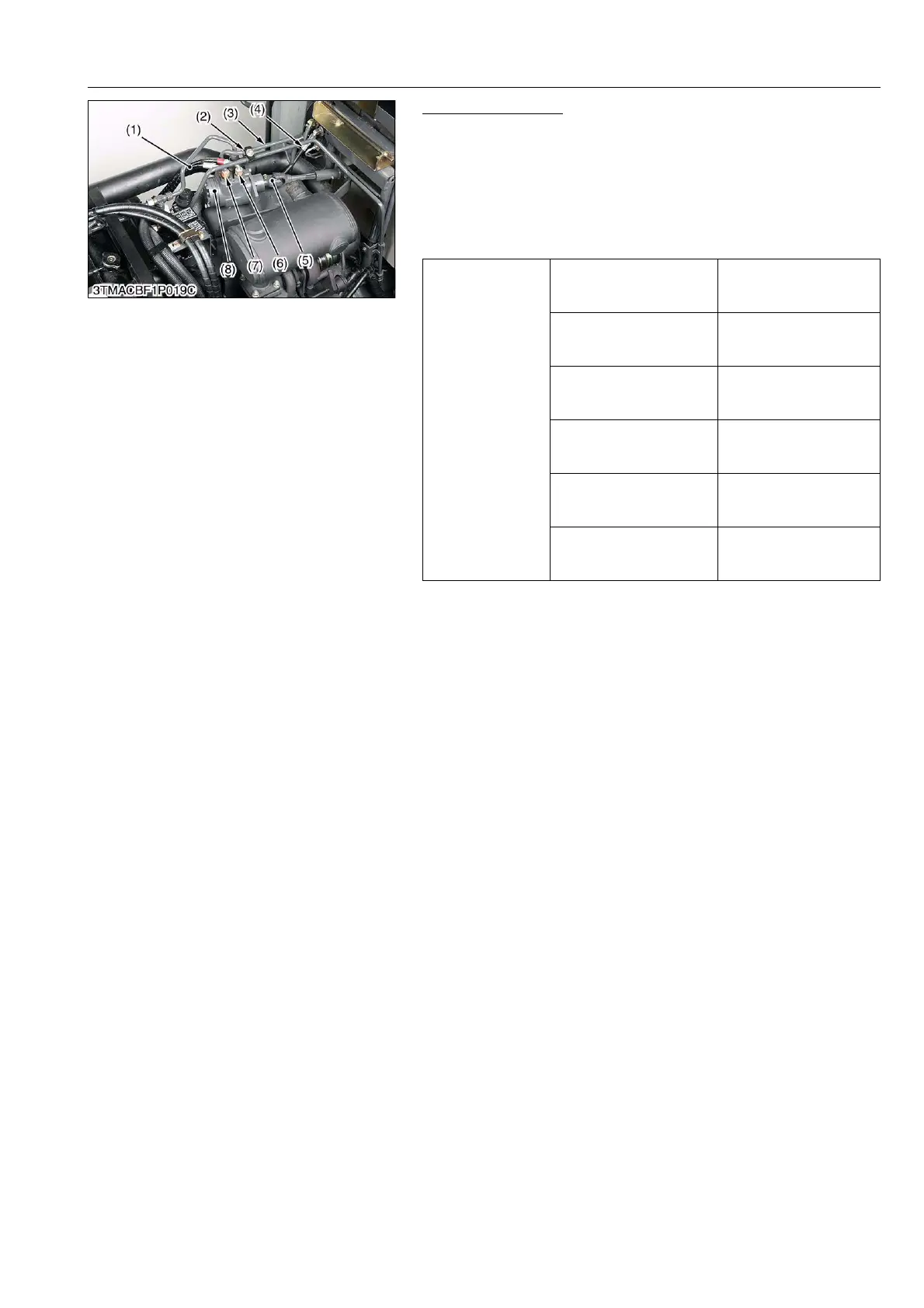

Steering Controller
1. Remove the pipe clamp (2), brake hose (4), power steering pipe
(3) and oil cooler pipe (1).
2. Disconnect the power steering delivery hoses (6) and (7).
3. Remove the steering joint shaft mounting screw (5).
4. Remove the steering controller mounting screws and steering
controller (8).
(When reassembling)
9Y1210143STS0010US0
Tightening torque
Power steering pipe
retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Oil cooler pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Power steering delivery
hose retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
Power steering joint shaft
mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
Power steering controller
mounting screw
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.5 to 41.2 lbf·ft
Brake hose retaining nut
22.6 to 27.5 N·m
2.7 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
(1) Oil Cooler Pipe
(2) Pipe Clamp
(3) Power Steering Pipe
(4) Brake Hose
(5) Steering Joint Shaft Mounting
Screw
(6) Power Steering Delivery Hose
(7) Power Steering Delivery Hose
(8) Steering Controller
