HYDRAULIC SYSTEM
M6040, M7040, WSM
8-S20

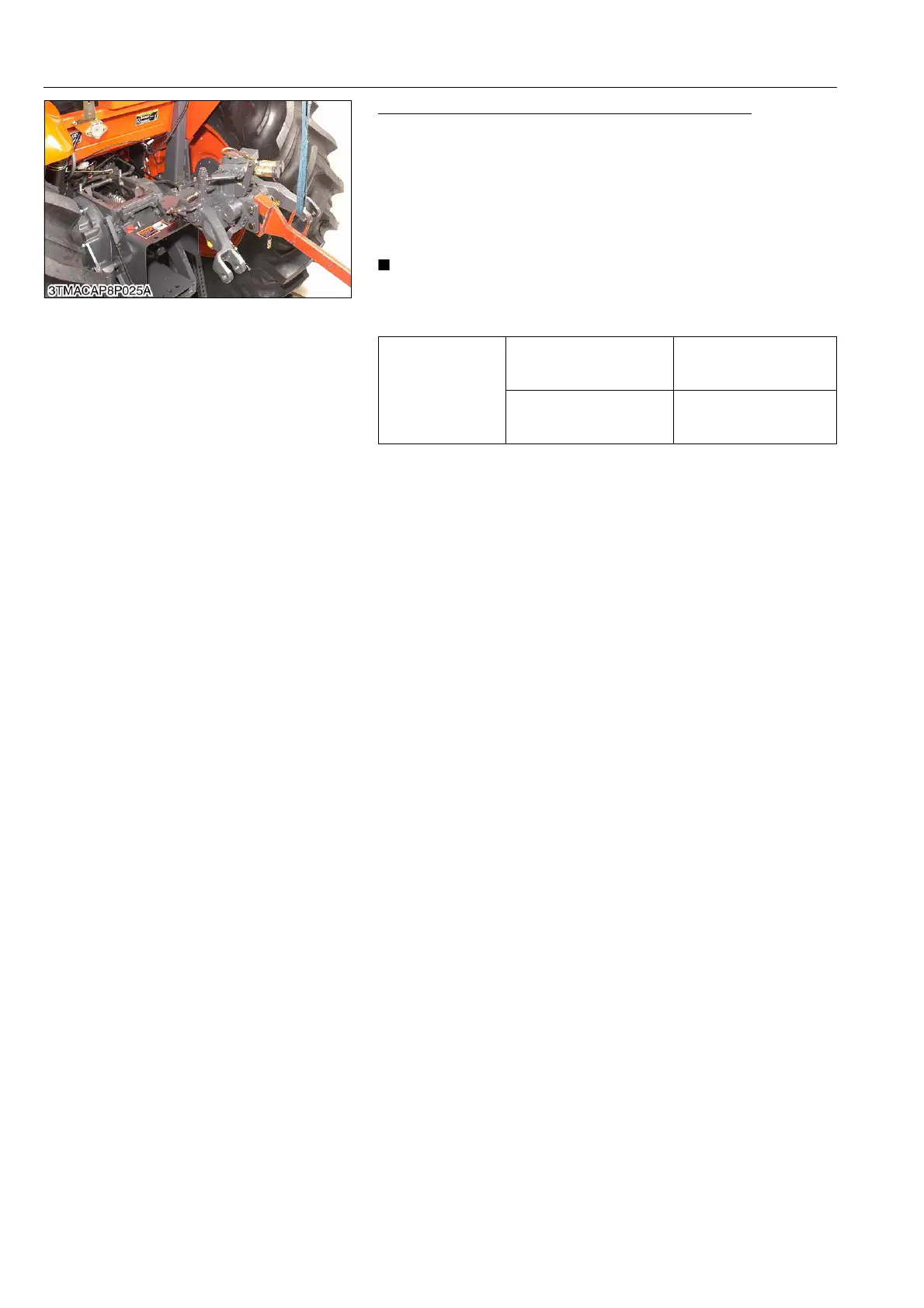

Removing 3-point Hitch Hydraulic Block Assembly
1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the e-point hitch hydraulic block assembly with nylon
lift strap and hoist.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and cylinder block.
• After reassembling the cylinder block assembly to the
tractor, be sure to adjust the position and draft feedback
rods.
9Y1210143HYS0021US0
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
