ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S49

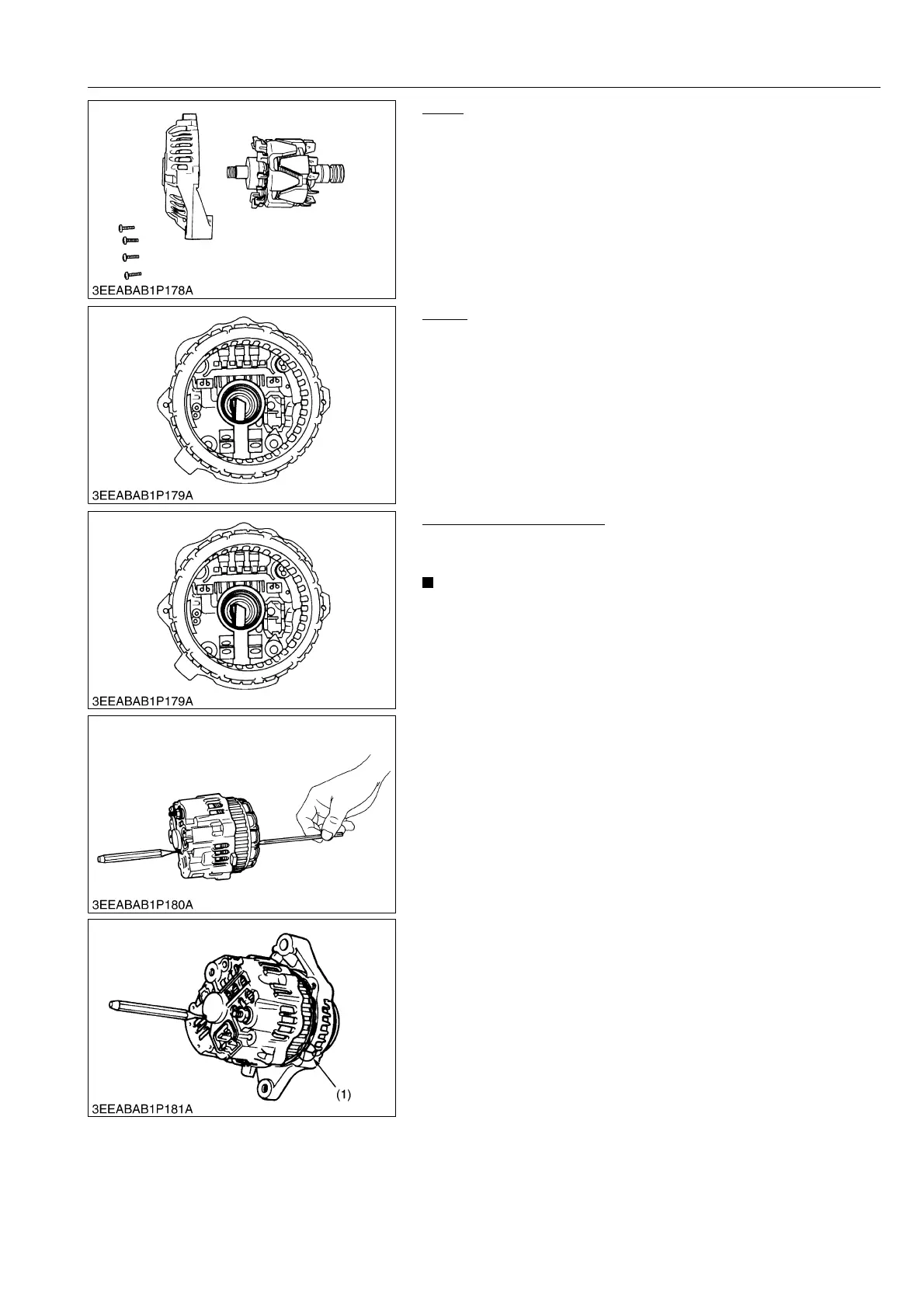

Rotor
1. Remove the 4 screws and detach the bearing retainer.
2. Temporarily install the nut on the pulley screw, and detach the
rotor.
9Y1210143ELS0080US0
Brush
1. When the rotor is detached, the 2 brushes are found to stretch
out of the shaft hole.
9Y1210143ELS0081US0
Reassembling the Brush
1. Fit the brush with its sliding face in the clockwise direction when
viewed from front.
IMPORTANT
• Be sure to keep the 2 brushes deep in the brush holder.
Otherwise the rotor and the rear section can not be fitted
into position.
• Use a 4 mm hex. wrench to push the brushes into place.
• Using a pin-pointed (2 mm) punch, keep the brushes from
popping out.
2. Match the tally line of the front section with that of the rear
section.
3. Tighten the 4 screws, and draw out the pin-pointed punch out of
the brush holder.
9Y1210143ELS0082US0
(1) Marking
KiSC issued 07, 2012 A
