CABIN
M6040, M7040, WSM
10-S51
Before Replacing Windshields (3)

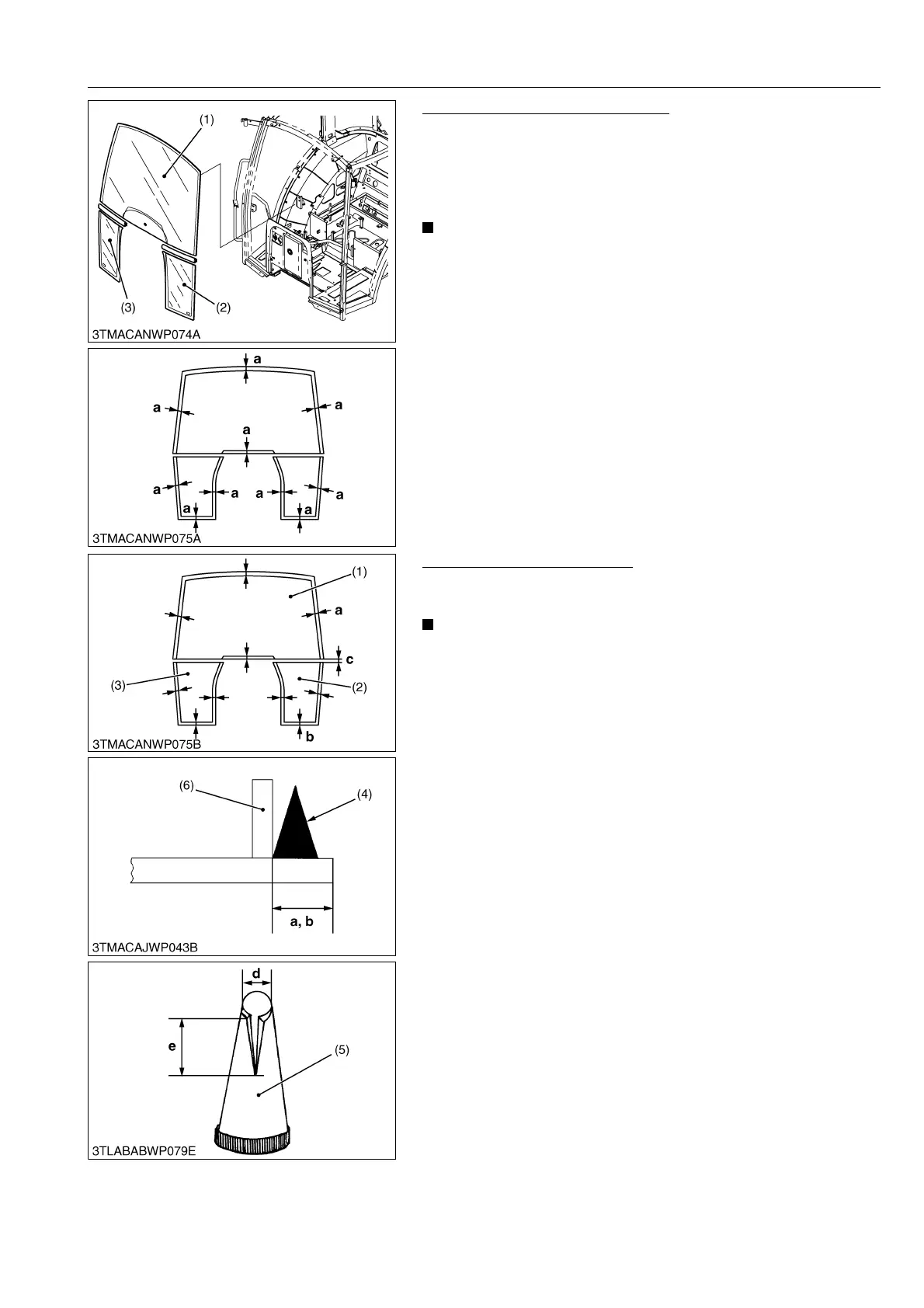

1. Check that the glasses are not damaged and cracked.
2. Turn over the glass and clean this surface of the glass by
Sika-cleaner No. 1.
3. The cleaning area of the rear surface is indicated "a" in the
figure left.
• If not cleaning the glass, it may result in adhesive failure.
9Y1210143CAS0094US0
Applying Sika Tack-Ultrafast
1. Apply a Sika Tack-Ultrafast (or equivalent) on the glasses as
shown in figure left.
• Apply the Sika Tack-Ultrafast (or equivalent) with the jig
having the specified tip shape as shown in the figure left.
• Apply it with a uniform speed to minimize unevenness.
• Follow the instruction manual of Sika Tack-Ultrafast.
9Y1210143CAS0095US0
(1) Upper Windshield
(2) Lower Windshield (Left)
(3) Lower Windshield (Right)
a: 25 mm (1.0 in.)
(1) Upper Windshield
(2) Lower Windshield (Left)
(3) Lower Windshield (Right)
(4) Sika Tack-Ultrafast
(5) Jig
(6) Shield
a: 10 mm (0.39 in.)
b: 12 mm (0.47 in.)
c: 4 mm (0.16 in.)
d: 8 mm dia. (0.31 in. dia.)
e: 12 mm (0.47 in.)
To Next Page
