Balancer Shaft 1 Bearing C Replacing Tool
Application
• Use to press fit the bearing.
NOTE

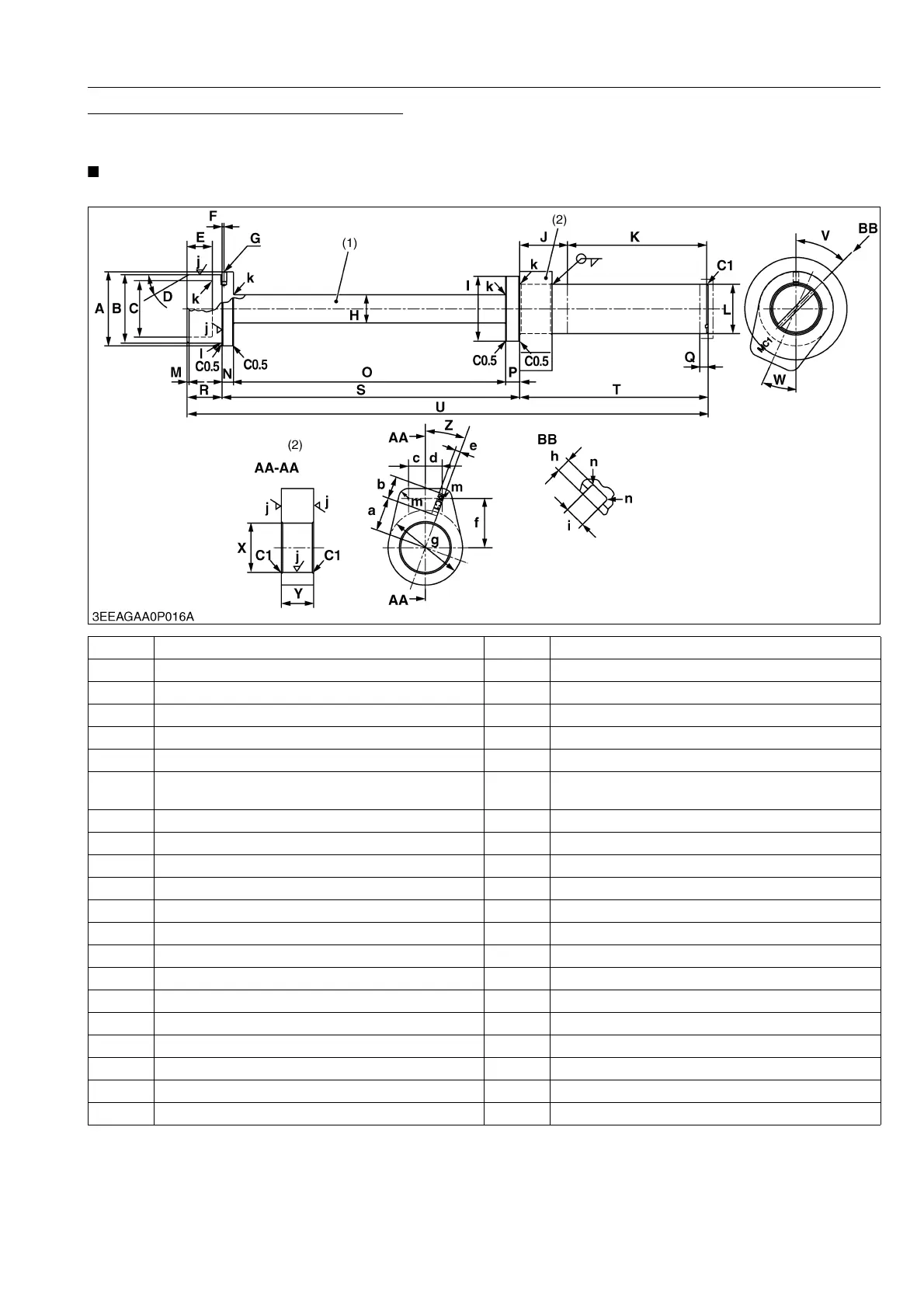

• The following special tools are not provided, so make them referring to the figure.
9Y1210143GEG0089US0
A 52.5 mm dia. (2.0669 in. dia.) V 0.855 rad (49 °)
B 48.4 to 48.5 mm dia. (1.9055 to 1.9095 in.) W 0.427 rad (24.5 °)
C 40 mm dia. (1.5748 in. dia.) X 35 mm dia. (1.3780 in. dia.)
D 0.523 rad (30 °) Y 23 mm (0.9055 in.)
E 18 mm (0.7087 in.) Z 0.349 rad (20 °)
F 1.2 mm (0.0472 in.) a 24 mm (0.9449 in.)
G
4.000 to 4.018 mm dia., 7 mm depth
(0.1575 to 0.1582 in. dia., 0.2756 in. depth)
b 16 mm (0.6299 in.)
H 20 mm dia. (0.7874 in. dia.) c 12 mm (0.4724 in.)
I 46 mm dia. (1.8110 in. dia.) d 12 mm (0.4724 in.)
J 34 mm (1.3386 in.) e 4 mm (0.1575 in.)
K 99 mm (3.8976 in.) f 35 mm (1.3780 in.)
L 34.9 to 35.0 mm (1.3740 to 1.3780 in.) g 53 mm (2.0866 in.)
M 1.5 mm (0.0591 in.) h 2 mm (0.0787 in.)
N 8 mm (0.3150 in.) i 3 mm (0.1181 in.)
O 193.5 mm (7.6181 in.) j Ra = 3.2 a
P 10 mm (0.3937 in.) k 0.8 mm radius (0.0315 in. radius)
Q 6 mm (0.2362 in.) l 0.3 mm radius (0.0118 in. radius)
R 25 mm (0.9843 in.) m 7.0 mm radius (0.2756 in. radius)
S 211.0 to 212.0 mm (8.3071 to 8.3465 in.) n 0.4 mm radius (0.0157 in. radius)
T 134 mm (5.2756 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 370.5 mm (14.5866 in.) C1 Chamfer 1.0 mm (0.0394 in.)
(1) Shaft (2) Stopper
