Yamaha F150A - Page 112

4-1
YDIS
0
1
2
3
4
5
6
7
8
9
10
A
YDIS
The Yamaha Diagnostic System uses precision fault diagnosis to offer better serviceability at a time
when there is increasing demand for service tools for electronically controlled products. It provides
quick, reliable, safe, and reasonable service, and is intended to obtain customer satisfaction. The
Yamaha Diagnostic System features updated software and expanded tool functions that allow it to
respond to new models and technologies, maintaining compatibility with regulations. This manual
contains the model-specific information. See YDIS (Ver. 2.00 or later) instruction manual for detailed
information.

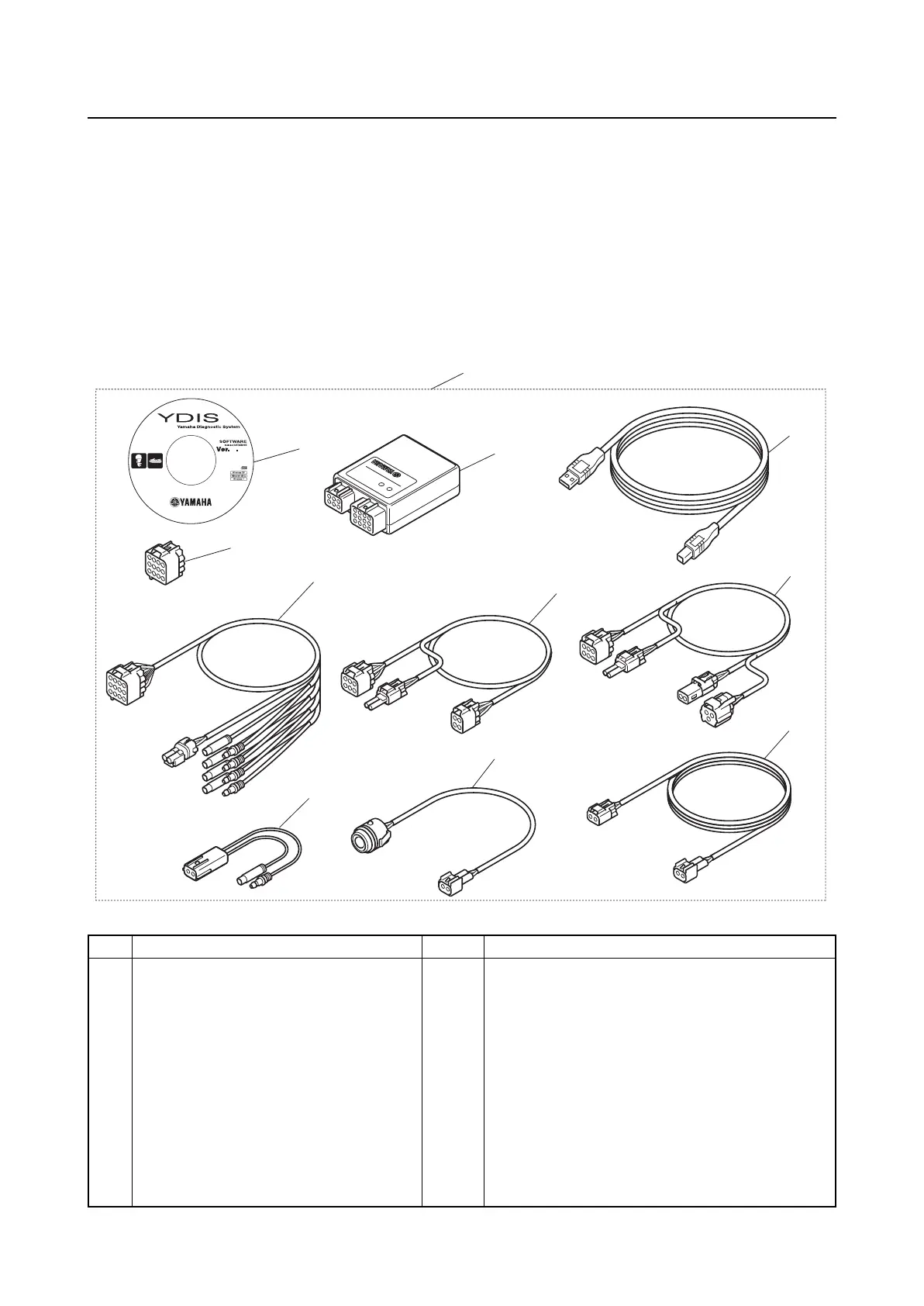

Basic components
No. Part name Q’ty Remarks
1 YDIS 2 starter kit 1 90890-06883
2 CD-ROM 1 Software and instruction manual
3 Adapter 1
4 USB cable 1 5 m (16.4 ft)
5 Adapter cap 1
6
AD harness
1 For external input
7 CAN-Line harness 1
8 K-Line harness 1
9 Power supply harness 1
10 Trigger switch harness 1
11 Trigger switch extension harness 1
******
******
**
*
