Yamaha F150A - Air Hose, Pressure Regulator Hose, and Vapor Gas Hose

6-2
Hose routing
0
1
2
3
4
5
6
7
8
9
10
A

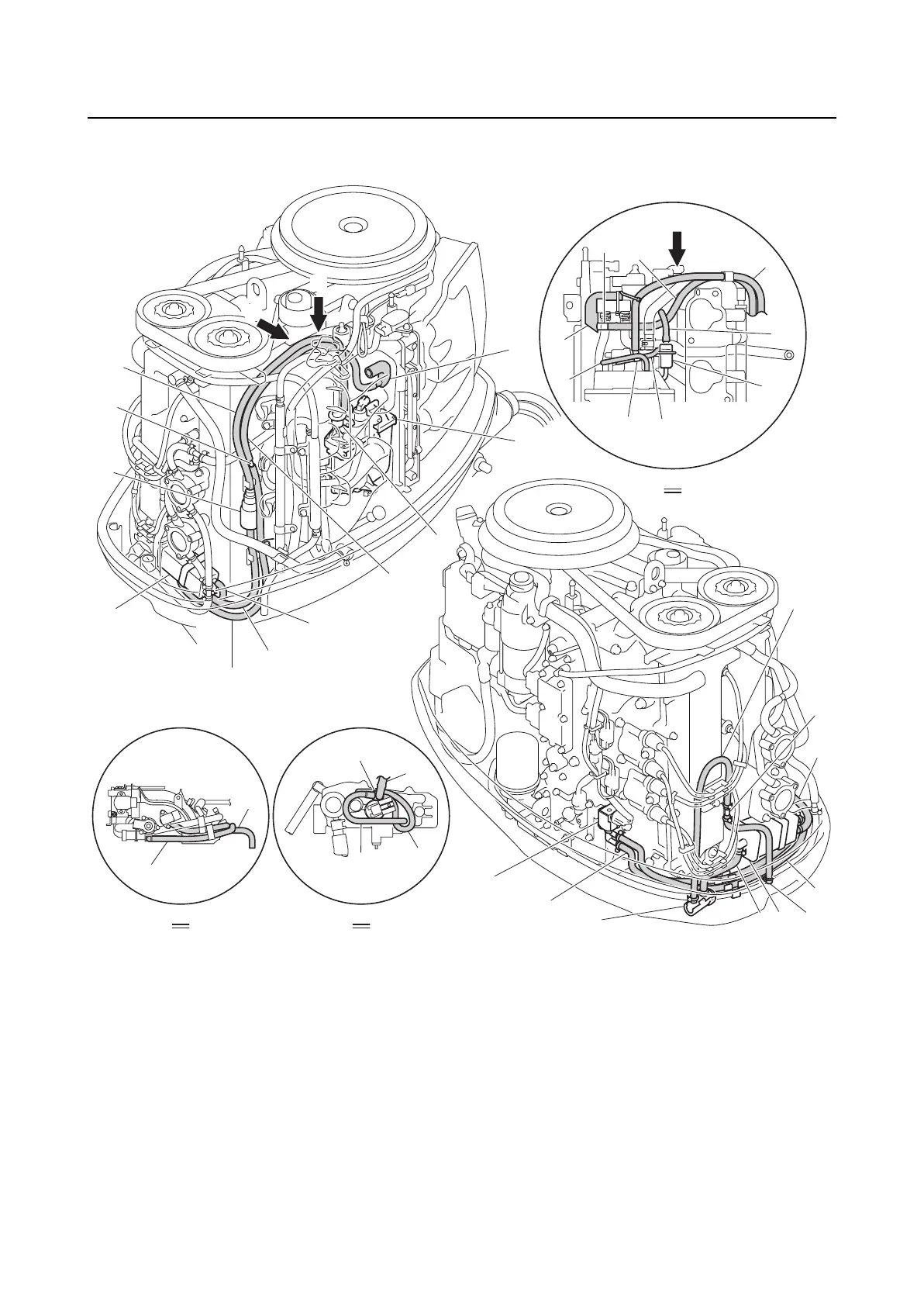

Air hose, pressure regulator hose, and vapor gas hose
1. Vapor gas hose (vapor separator to joint)
2. Vapor gas hose (vapor separator to joint)
3. Vapor gas hose (joint to filter)
4. Vapor gas hose (filter to canister tank
port)
5. Vapor gas hose (canister purge port to
vapor shut-off valve)
6. Vapor gas hose (vapor shut-off valve to
joint)
7. Vapor gas hose (joint to joint)
8. Air hose (joint to intake manifold)
9. Vapor gas hose (canister atmospheric
port to filter)
10. Vapor gas hose (filter to joint)
11. Vapor gas hose (joint to bottom cowling)
12. Pressure regulator hose (intake manifold
to pressure regulator)
a. Vapor separator
b. Joint
c. Filter
d. Canister
e. Vapor shut-off valve
A
B
3
6
a
8
c
4
7
f
m
d
5
A
C
7
1
g
8
2
12
b
3
k
CB
10
m
4
5
d
9
h
6
e
11
7
3
3
b
1
2
