Overview
YDIS version 2.00 retains the functionality of former YDIS versions, while adding new functionality.
The screen has been redesigned, improving ease-of-use.
The CAN-Line transmission method, which enables connection to a hub, has been added to the
conventional transmission method (K-Line). Available functions will differ depending on the connec-
tion method.
TIP:
• There is no compatibility between the YDIS version 2.00 and version 1 series.

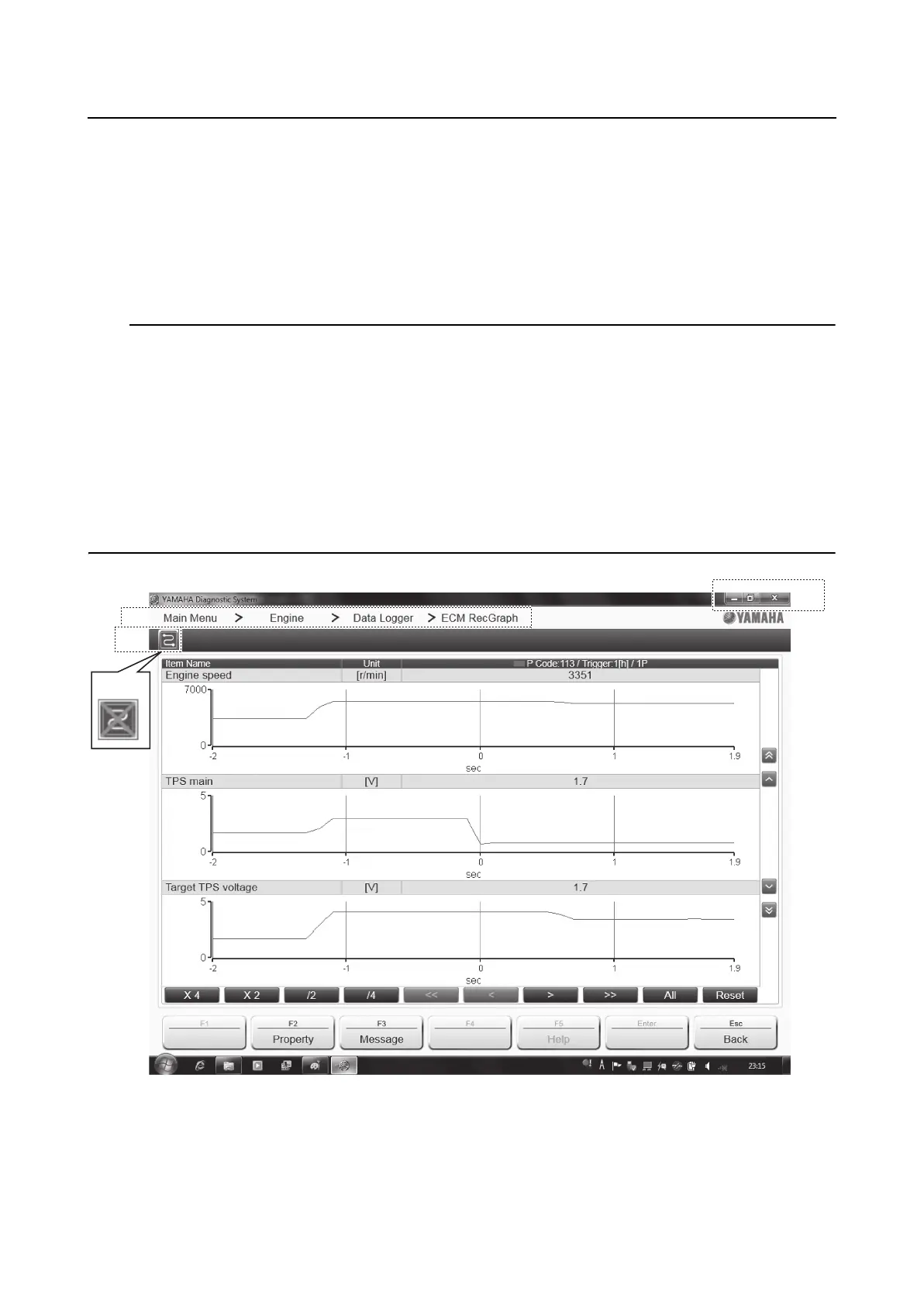

• Use of the Windows function “1” to change the screen size and to end programs is now possible.
• Displays the current level “2”.
• Displays the communications status.
Communicating: “3”
Communications error: “4”
• For connection methods, see “Connecting the communication cable” (4-5).
• For menu levels, see “Function” (4-2).
• For details of operation methods, see the YDIS (Ver. 2.00 or later) instruction manual.
• These tools are restricted for use by Yamaha service technicians of distributors or dealers only.
