Yamaha F150A - Rectifier Regulator and Ignition Coil

7-23
Rectifier Regulator and ignition coil
0
1
2
3
4
5
6
7
8
9
10
A

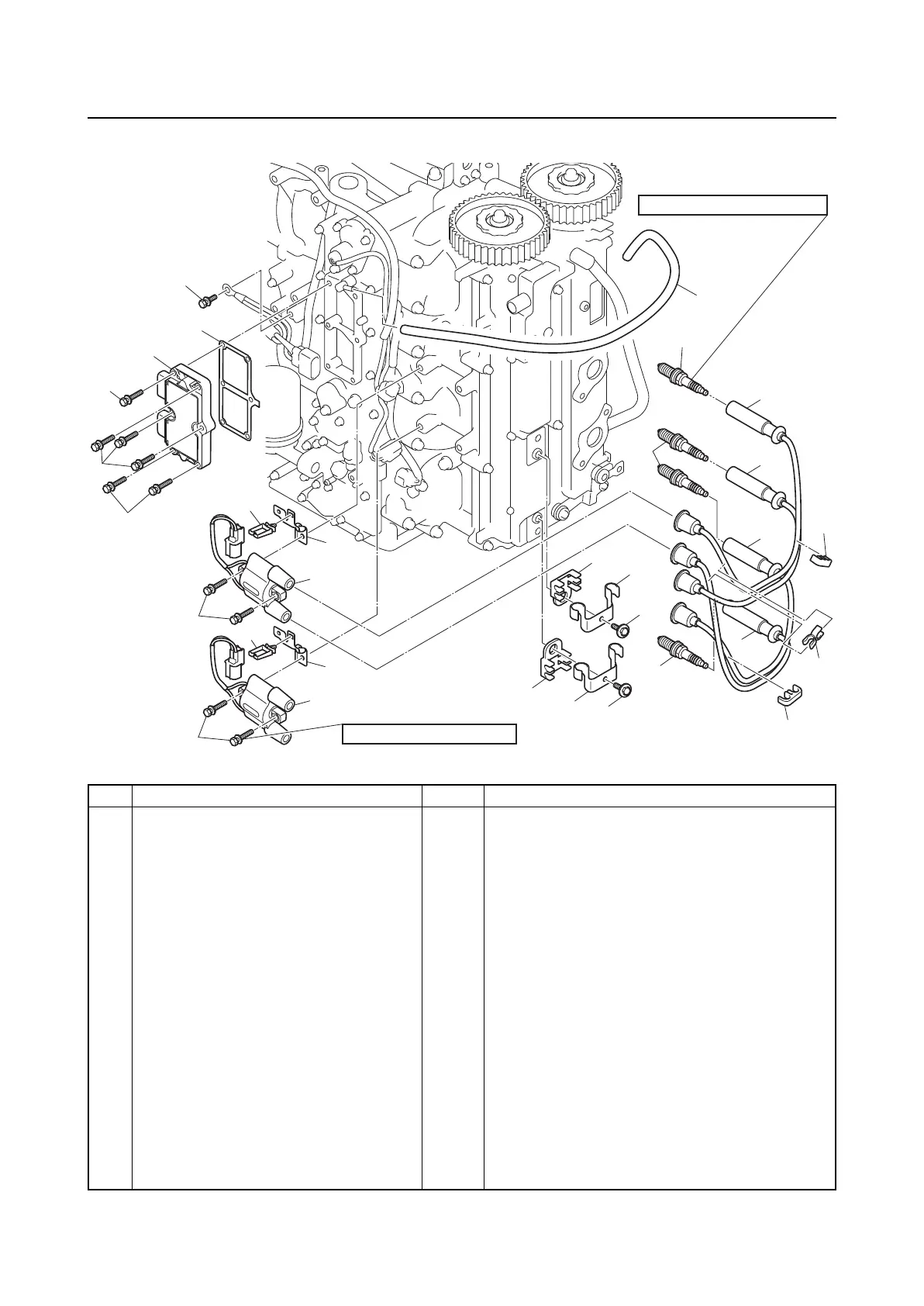

Rectifier Regulator and ignition coil
No. Part name Q’ty Remarks
1 Rectifier Regulator 1
2 Gasket 1 Not reusable
3Bolt 6 M6 × 30 mm
4Bolt 1 M6 × 16 mm
5 Spark plug wire #1 1
6 Spark plug wire #2 1
7 Spark plug wire #3 1
8 Spark plug wire #4 1
9 Holder 2
10 Holder 2
11 Bolt 2 M6 × 10 mm
12 Holder 2
13 Holder 1
14 Ignition coil 2
15 Bracket 2
16 Holder 2
17 Bolt 4 M6 × 25 mm
18
19
9
13
9
19
19
11
10
12
12
17
10
11
17
14
15
15
16
16
14
3
3
3
1
2
4
8
7
6
5
7 N·m (0.7 kgf·m, 5.2 ft·lb)
25 N·m (2.5 kgf·m, 18.4 ft·lb)
