Yamaha F150A - Removing the Drive Shaft; Disassembling the Drive Shaft Housing; Disassembling the Forward Gear

8-21

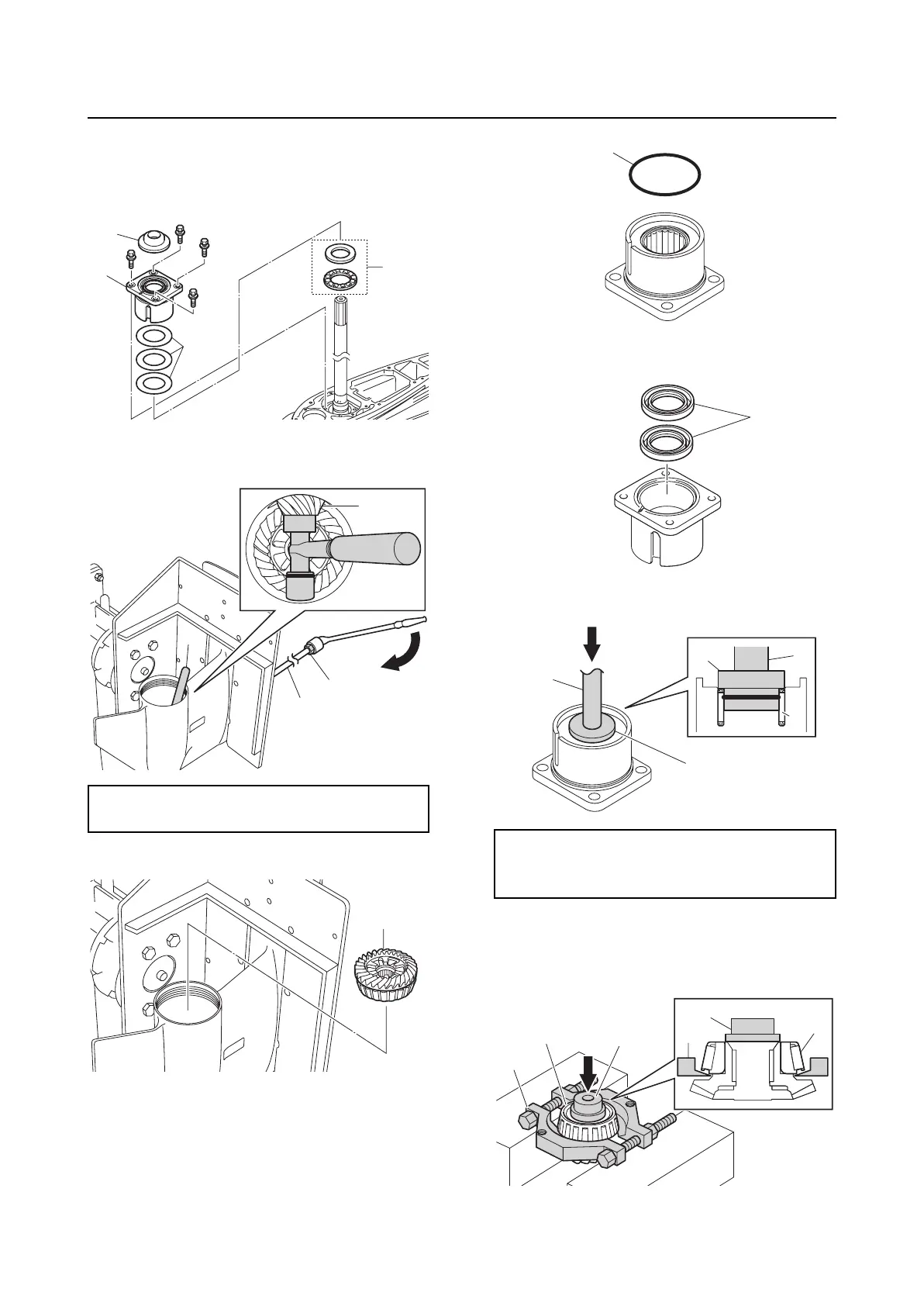

Drive shaft and lower case (regular rotation model)
Removing the drive shaft
1. Remove the cover “1”, drive shaft hous-
ing “2”, pinion shims “3”, and thrust bear-
ing “4”.
2. Loosen the pinion nut, and then remove
the pinion “1”, drive shaft “2”, and sleeve.
3. Remove the forward gear assembly “1”.
Disassembling the drive shaft
housing
1. Remove the O-ring “1”.
2. Remove the oil seals “1”.
3. Remove the needle bearing “1”.
Disassembling the forward gear
1. Remove the taper roller bearing inner
race “1”.
Drive shaft holder 6 “3”: 90890-06520
Pinion nut holder “4”: 90890-06715
1
2
3
4
1
2
3
4
1
Needle bearing attachment “2”:
90890-06610
Driver rod L3 “3”: 90890-06652
1
1
1
2
2
3
3
1
1
2
2
3
3
