Yamaha F150A - Rigging Grommet Mounting; Rigging Grommet Description; Installing the Shift Cable

3-9

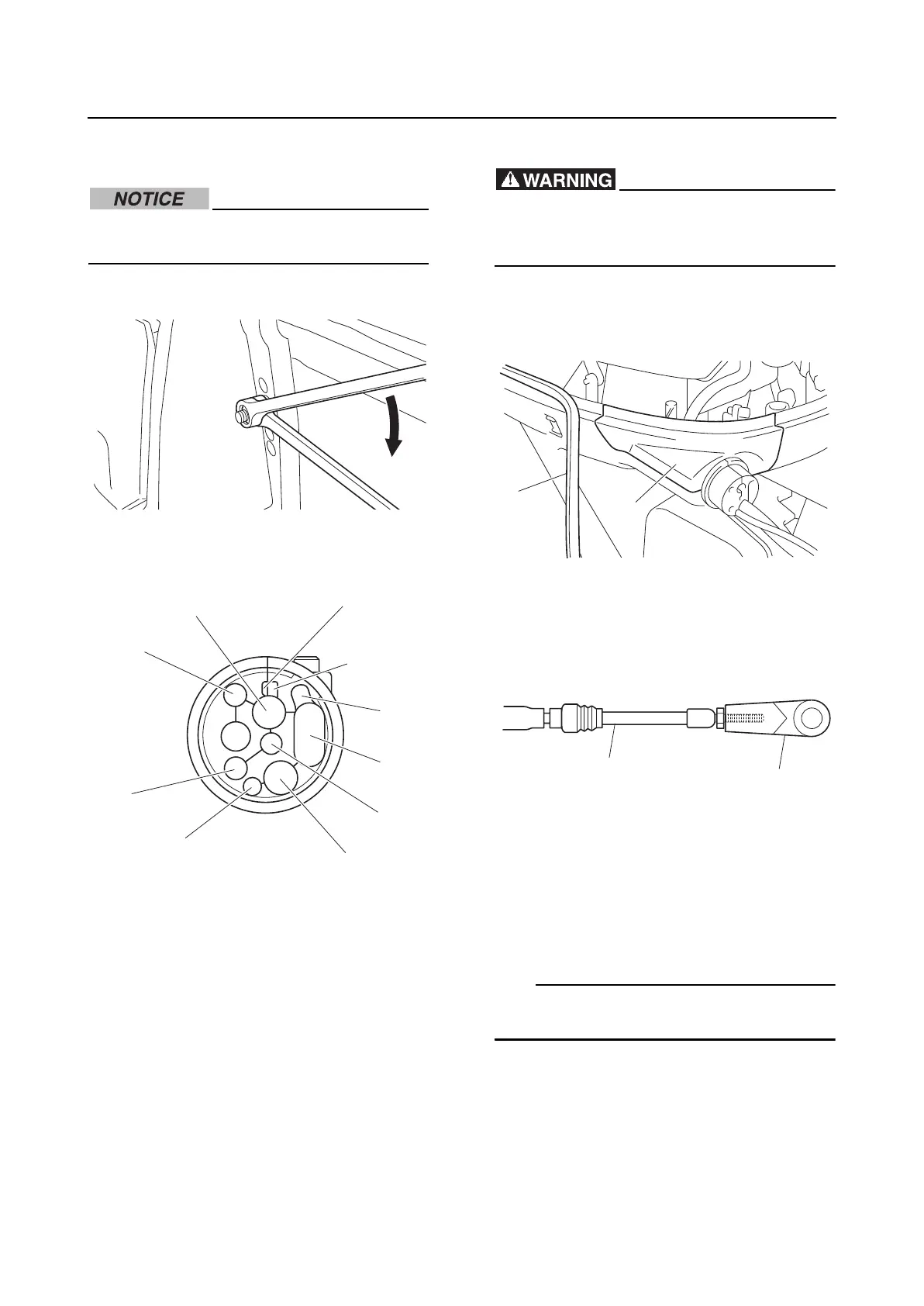

Rigging grommet mounting
7. Install the mounting bolts, and then
tighten the nuts firmly.
Make sure that the clamp brackets do not
bite into the boat transom.
8. Tighten the locknuts firmly.
Rigging grommet mounting
Rigging grommet description
1. Main wiring harness
2. Water temperature lead (optional)
3. Water pressure hose (optional)
4. Isolator lead (optional)
5. Battery cable
6. Gauge harness or 6Y8 Multifunction
Meter harness
7. Fuel hose
8. Speedometer hose
9. Shift cable
10. Throttle cable
Installing the shift cable
Always perform the cable adjustment in
advance, following the procedures in the
remote control operation manual.
1. Remove the rubber seal “1” from the
retaining plate “2”, and then remove the
retaining plate “2”.
2. Fully screw in the shift cable joint “1” to
the shift cable “2”.
3. Move the remote control lever to the N
position.
4. Disengage the holder “1” from the shift
cable holder “2”.
TIP:
Shift cable position can be adjusted using the
shift cable holder “2”.
1
2
3
4
5
6
7
8
9
10
1
2
1
2
