Yamaha F150A - Propeller Shaft Housing (Counter Rotation Model)

8-54

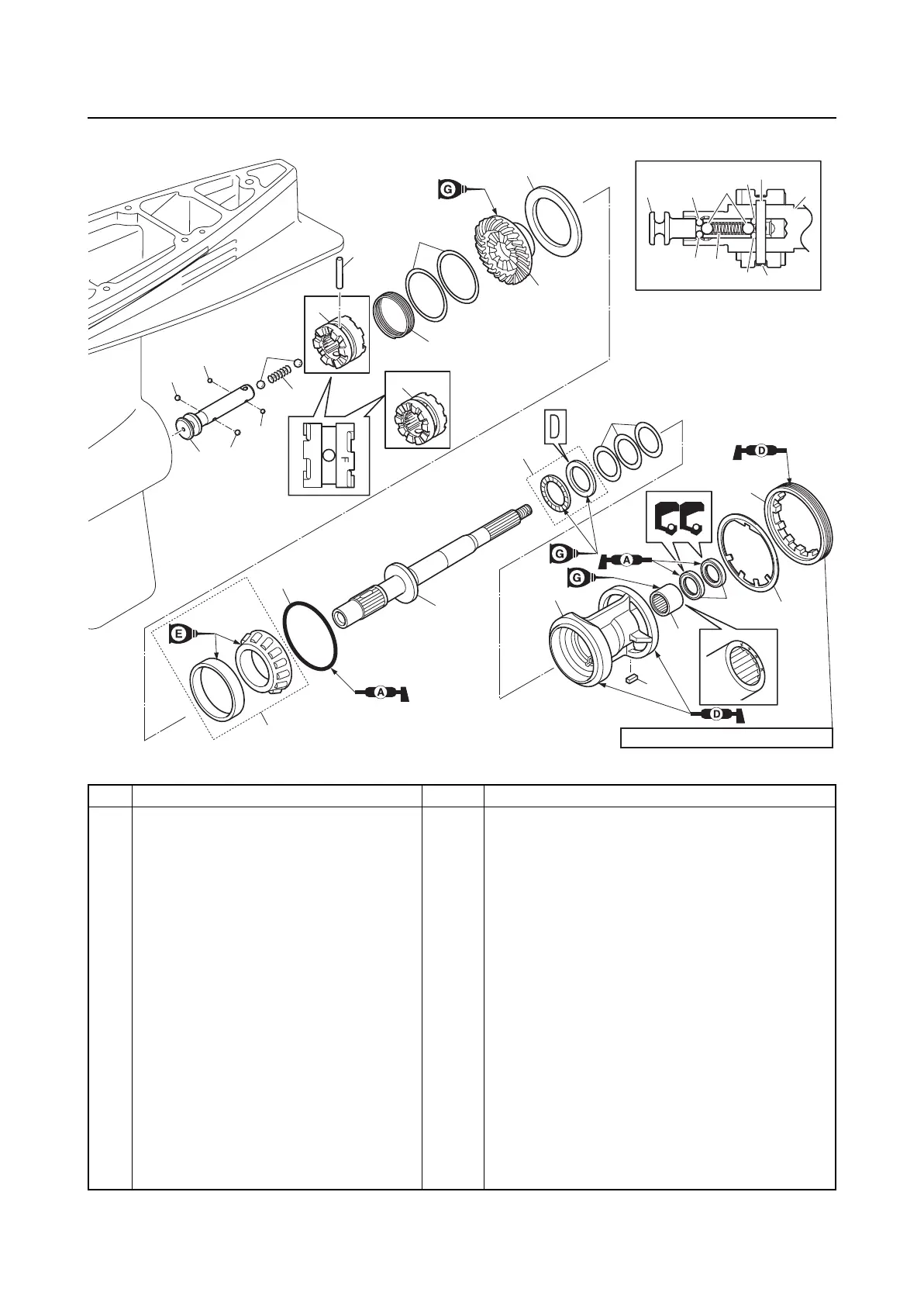

Propeller shaft housing (counter rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
Propeller shaft housing (counter rotation model)
No. Part name Q’ty Remarks
1 Slider 1
2 Ball 2 5.54 mm (0.22 in) (reference data)
3 Ball 2 4.74 mm (0.19 in) (reference data)
4 Ball 2 8.72 mm (0.34 in) (reference data)
5Spring 1
6 Dog clutch 1 FL150A: Six teeth
7 Dog clutch 1 FL150B: Ten teeth
8Cross pin 1
9Spring 1
10 Forward gear shim (T2) —
11 Forward gear 1
12 Thrust washer 1
13 Taper roller bearing 1 Not reusable
14 O-ring 1 Not reusable
15 Propeller shaft 1
16 Thrust bearing 1
17 Propeller shaft shim (T4) —
9
15
11
12
13
14
18
16
17
21
22
23
12
25
4
3
8
15
3
9
19
10
20
1
2
2
3
5
3
4
6
8
7
145 N·m (14.5 kgf·m, 106.9 ft·lb)
