Yamaha F150A - Drive Shaft and Lower Case (Regular Rotation Model)

8-19

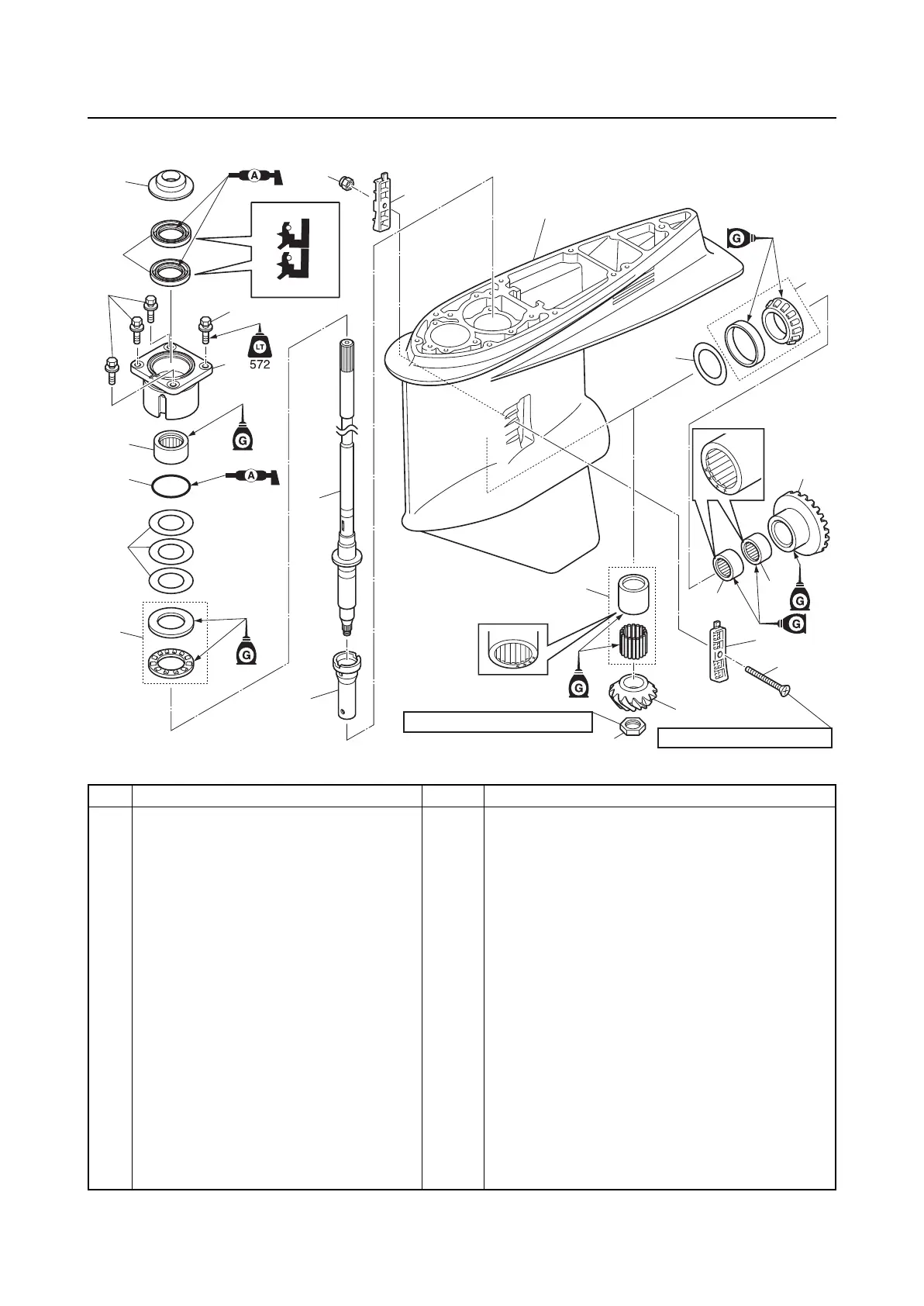

Drive shaft and lower case (regular rotation model)
Drive shaft and lower case (regular rotation model)
No. Part name Q’ty Remarks
1 Thrust bearing 1
2 Pinion shim (T3) —
3 O-ring 1 Not reusable
4 Needle bearing 1 Not reusable
5 Drive shaft housing 1
6Bolt 4 M8 × 25 mm
7 Oil seal 2 Not reusable
8Cover 1
9 Self-locking nut 1
10 Water inlet cover (STBD) 1
11 Drive shaft 1
12 Sleeve 1
13 Lower case 1
14 Forward gear shim (T1) —
15 Taper roller bearing 2 Not reusable
16 Needle bearing 2 Not reusable
17 Forward gear 1
9
10
18
19
1 N·m (0.1 kgf·m, 0.7 ft·lb)
8
7
6
5
4
3
2
1
6
12
95 N·m (9.5 kgf·m, 70.1 ft·lb)
11
13
14
15
17
16
16
20
21
22
