2-13
Fuel system
Fuel system

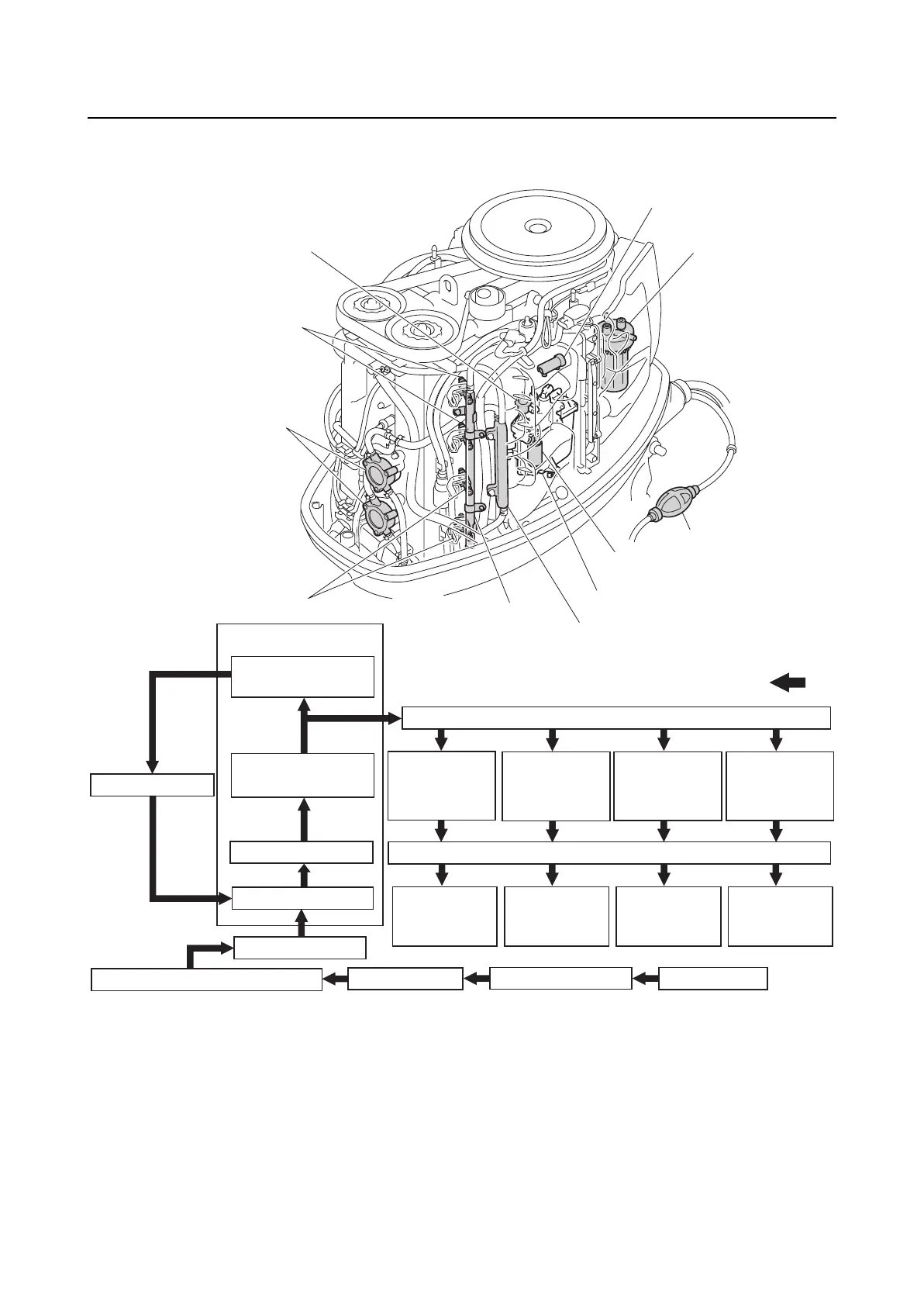

Fuel diagram
1. Fuel tank
2. Primer pump
3. Fuel filter
4. Low-pressure fuel pump
5. Filter
6. Vapor separator
7. Float chamber
8. Filter
9. High-pressure fuel pump
10. Pressure regulator
11. Fuel rail
12. Fuel injector
13. Intake manifold
14. Combustion chamber
15. Fuel cooler
A. Fuel flow
4. Low-pressure fuel pump
10. Pressure
regulator
2. Primer pump 1. Fuel tank
3. Fuel filter
8. Filter
5. Filter
7. Float chamber
9. High-pressure
fuel pump
11. Fuel rail
12.
Fuel injector
#1
14.
Combustion
chamber #1
14.
Combustion
chamber #2
14.
Combustion
chamber #3
14.
Combustion
chamber #4
13. Intake manifold
6. Vapor separator
2
11
15. Fuel cooler
12.
Fuel injector
#2
12.
Fuel injector
#3
12.
Fuel injector
#4
9
6
5
10
4
12
12
3
15
A
