Yamaha F150A - Starter Motor

7-20

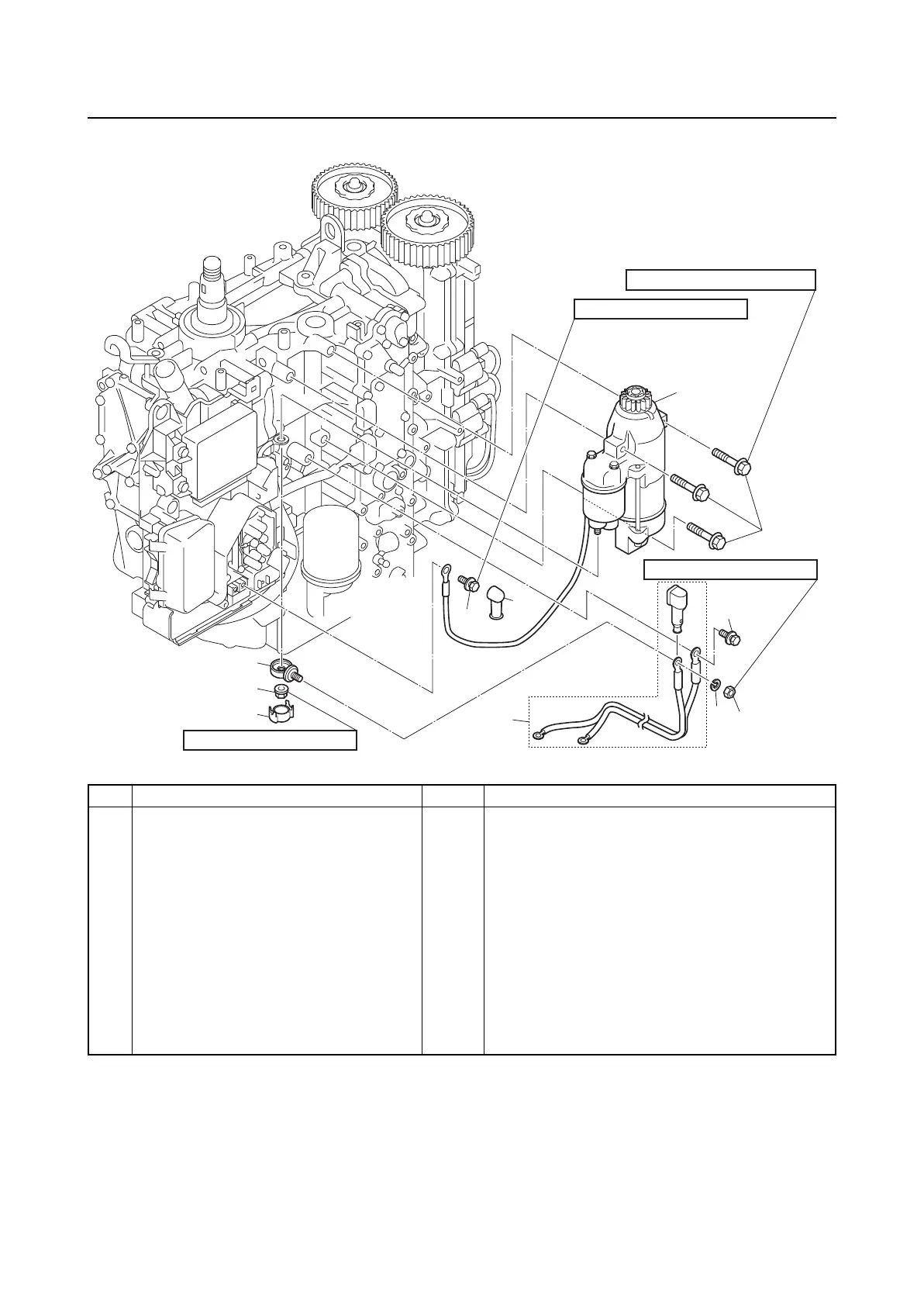

Starter motor
Starter motor
No. Part name Q’ty Remarks
1Cap 1
2Nut 1
3 Terminal 1
4 Starter motor 1
5Bolt 3 M8 × 45 mm
6Cap 1
7Bolt 1 M6 × 10 mm
8 Battery cable 1
9Bolt 1 M8 × 16 mm
10 Spring washer 1
11 Nut 1
7
10
9
5
4
9 N·m (0.9 kgf·m, 6.6 ft·lb)
3
2
1
6
9 N·m (0.9 kgf·m, 6.6 ft·lb)
8
4 N·m (0.4 kgf·m, 3.0 ft·lb)
11
30 N·m (3.0 kgf·m, 22.1 ft·lb)
