Yamaha F150A - Power Unit Assembly

7-5
Power unit assembly
0
1
2
3
4
5
6
7
8
9
10
A

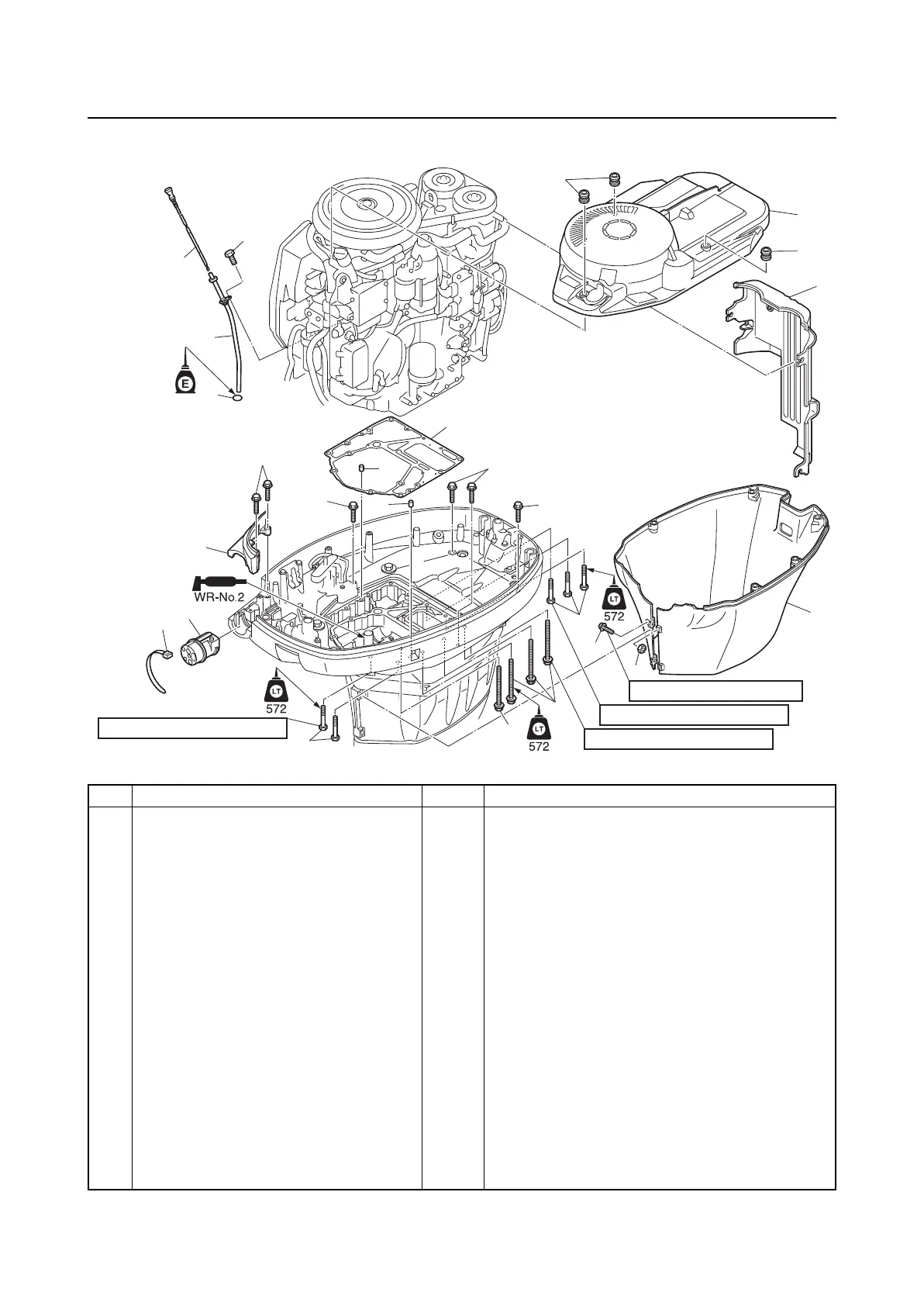

Power unit assembly
No. Part name Q’ty Remarks
1Grommet 3
2Cover 1
3Cover 1
4 Apron 1
5Nut 2
6Screw 2 M6 × 40 mm
7Bolt 3 M8 × 35 mm
8 Bolt 8 M10 × 140 mm
9 Bolt 4 M10 × 35 mm
10 Bolt 4 M6 × 16 mm
11 Rigging grommet 1
12 Plastic tie 1
13 Retaining plate 1
14 Bolt 2 M6 × 30 mm
15 Dowel 2
16 Gasket 1 Not reusable
17 O-ring 1 Not reusable
1
1
2
3
4
5
6
7
9
10
10
10
11
12
13
14
15
15
16
17
18
19
20
8
8
4 N·m (0.4 kgf·m, 3.0 ft·lb)
42 N·m (4.2 kgf·m, 31.0 ft·lb)
42 N·m (4.2 kgf·m, 31.0 ft·lb)
20 N·m (2.0 kgf·m, 14.8 ft·lb)
