Yamaha F150A - Cylinder Block (F150 A, FL150 A)

7-52

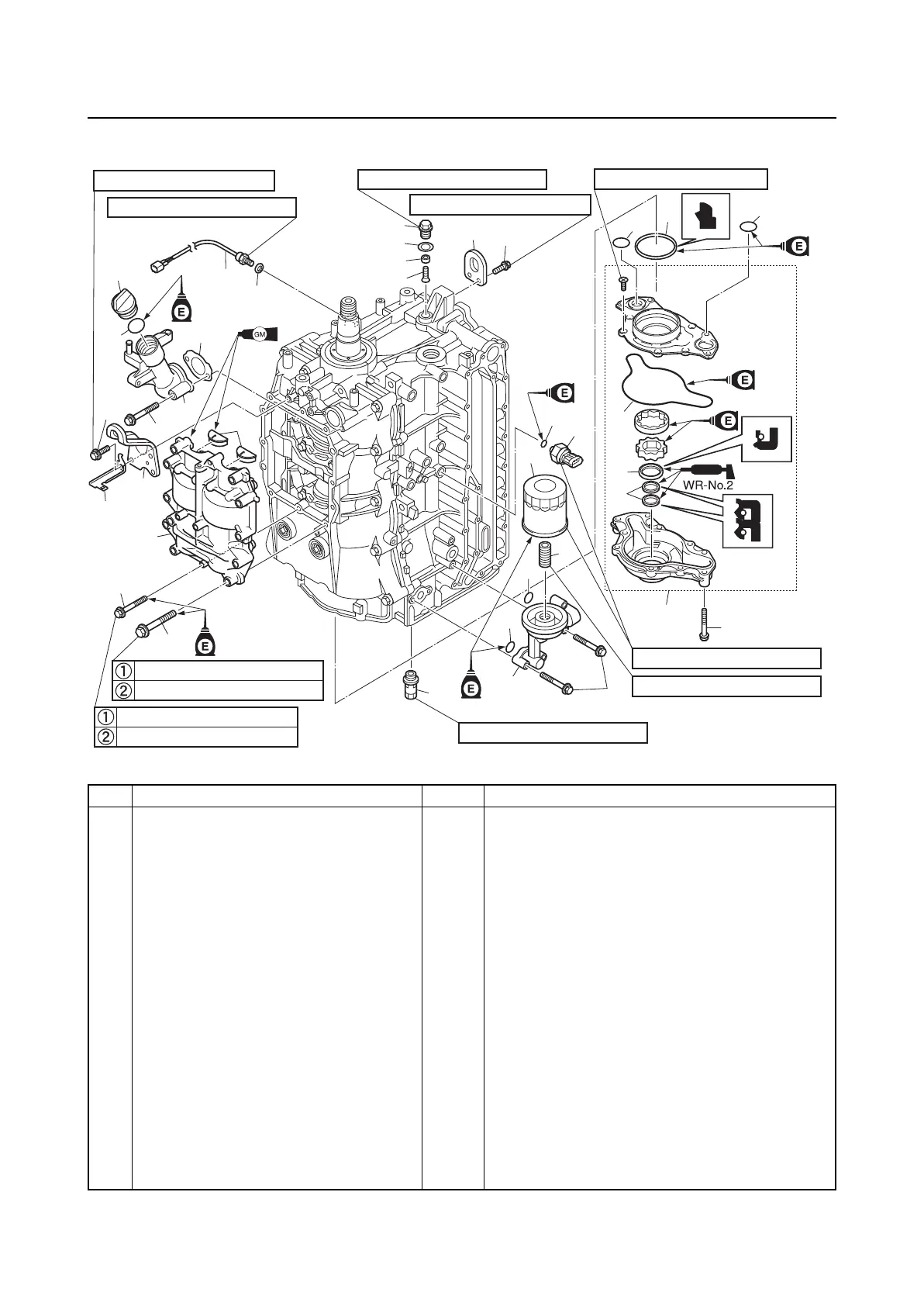

Cylinder block (F150A, FL150A)
Cylinder block (F150A, FL150A)
No. Part name Q’ty Remarks
1Bolt 10 M8 × 55 mm
2Bolt 2 M6 × 40 mm
3 Balancer assembly 1
4 Seal 2 Not reusable
5 Bracket 1
6 Engine hanger 1
7Bolt 5 M6 × 20 mm
8Bolt 2 M6 × 45 mm
9 Oil filler neck 1
10 Gasket 1 Not reusable
11 O-ring 1 Not reusable
12 Oil filler cap 1
13 Engine temperature sensor 1
14 Washer 1
15 Screw 1 M5 × 12 mm
16 Anode 1
17 Gasket 1 Not reusable
13
14
18
17
16
15
19
7
21
20
22
23
27
26
24
24
25
1
3
2
10
8
9
11
12
7
6
34
33
33
32
31
30
28
29
5
4
15 N·m (1.5 kgf·m, 11.1 ft·lb)
23 N·m (2.3 kgf·m, 17.0 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
34 N·m (3.4 kgf·m, 25.1 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
13 N·m (1.3 kgf·m, 9.6 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
31 N·m (3.1 kgf·m, 22.9 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
32 N·m (3.2 kgf·m, 23.6 ft·lb)
