Yamaha F150A - Upper Case

9-17

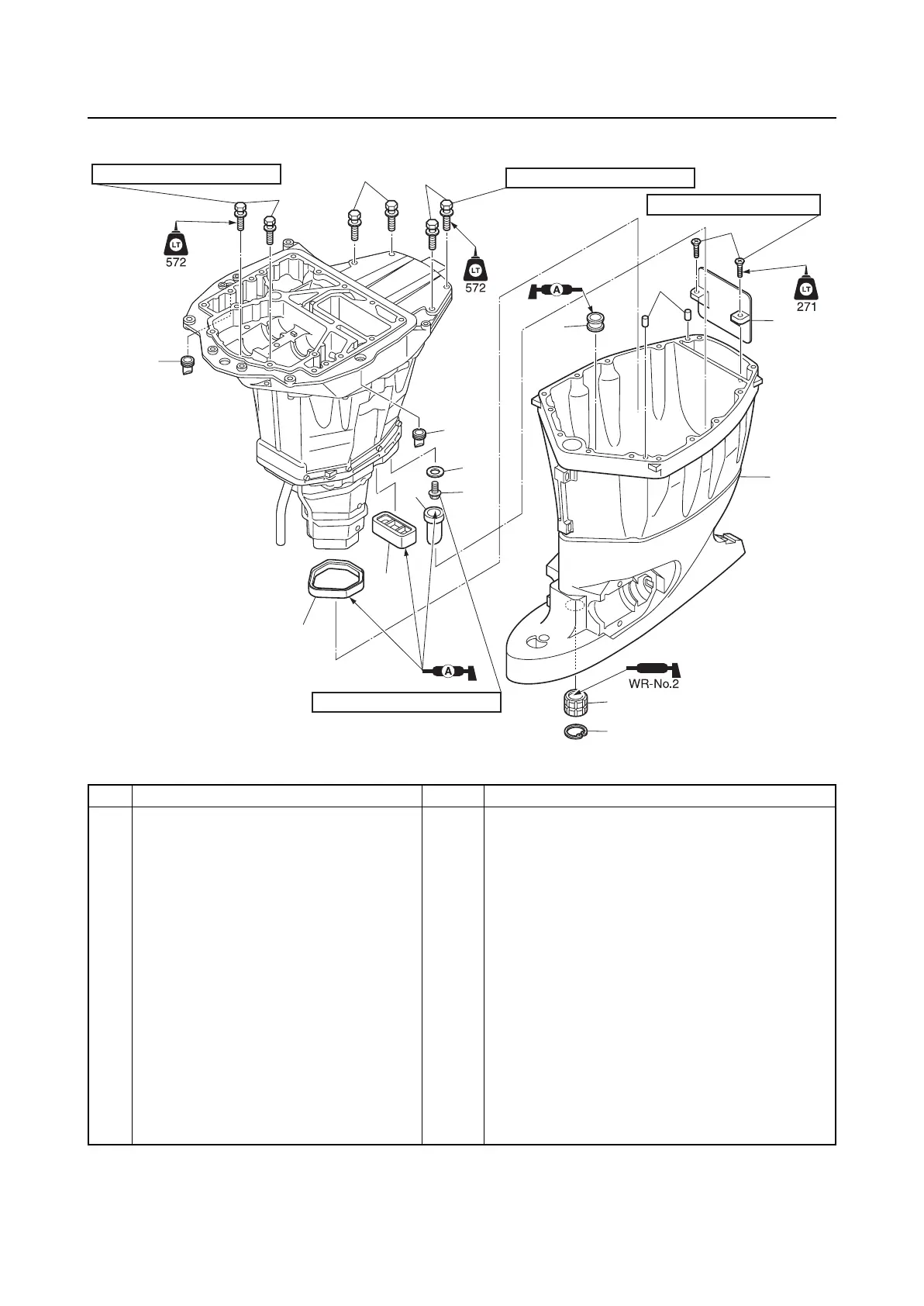

Upper case
Upper case
No. Part name Q’ty Remarks
1 Upper case 1
2 Circlip 1
3 Bushing 1
4 Rubber seal 1
5Dowel 2
6Screw 2 M6 × 15 mm
7 Baffle plate 1
8Bolt 2 M8 × 30 mm
9 Bolt 4 M10 × 45 mm
10 Grommet 2
11 Gasket 1 Not reusable
12 Drain bolt 1
13 Damper 1
14 Rubber seal 1
15 Rubber seal 1 Not reusable
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
4 N·m (0.4 kgf·m, 3.0 ft·lb)
42 N·m (4.2 kgf·m, 31.0 ft·lb)
20 N·m (2.0 kgf·m, 14.8 ft·lb)
28 N·m (2.8 kgf·m, 20.7 ft·lb)
