Yamaha F150A - Page 403

9-16
Upper case and mounts
0
1
2
3
4
5
6
7
8
9
10
A

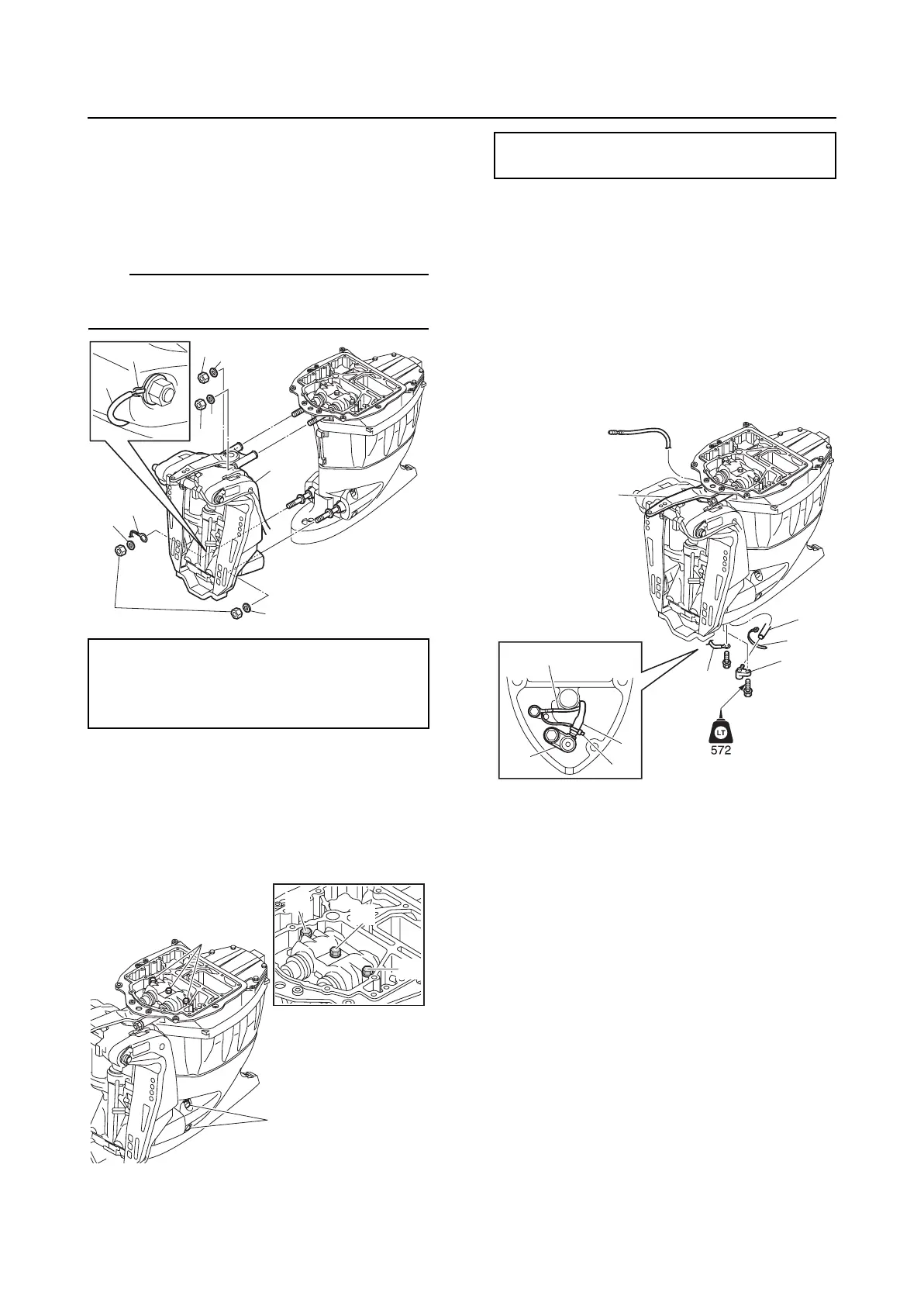

6. Install the ground lead (STBD) “2”, wash-
ers “3”, upper mounting nuts “4”, and
lower mounting nuts “5”, and then tighten
the upper mounting nuts “4” and lower
mounting nuts “5” to the specified torque.
TIP:
Fit the ground lead “2” into the groove “a” in
the steering yoke.
7. Tighten the upper mount bolts “1” to the
specified torque in the order [1], [2], and
so on.
8. Tighten the lower mount bolts (PORT
and STBD) “2”.
9. Connect the ground lead “1”.
10. Pass the speedometer hose “2” through
the steering arm “3”.
11. Connect the speedometer hose “2” to the
adapter “4”, and then fasten it using the
plastic tie “5”.
12. Install the adapter “4” to the upper case.
Upper mounting nut “4”:
72 N·m (7.2 kgf·m, 53.1 ft·lb)
Lower mounting nut “5”:
72 N·m (7.2 kgf·m, 53.1 ft·lb)
1
3
4
3
4
3
3
5
a
2
2
2
1
[1]
[2]
[3]
Upper mount bolt “1”:
55 N·m (5.5 kgf·m, 40.6 ft·lb)
1
3
4
2
5
1
2
4
5
