Yamaha F150A - Checking Y-COP; Checking the Buzzer; Checking the Y-COP Main Wiring Harness

5-30
Y-COP (standard for European market and optional for Oceanian market)
0
1
2
3
4
5
6
7
8
9
10
A

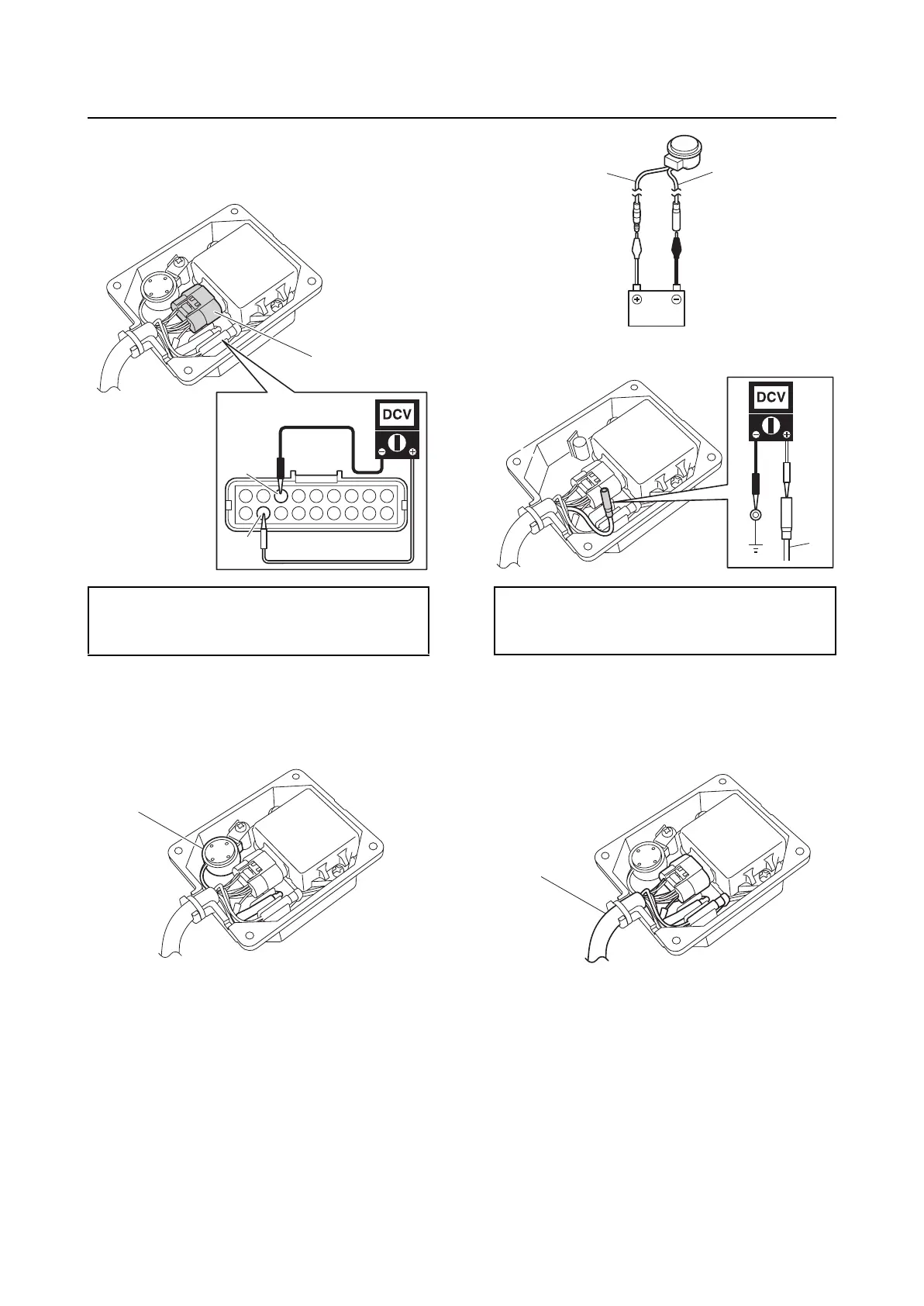

Checking Y-COP
1. Disconnect the Y-COP coupler “a”, and
then measure the Y-COP input voltage.
2. Connect the Y-COP coupler.
Checking the buzzer
1. Remove the Y-COP buzzer “1”.
2. Connect the battery leads to the Y-COP
buzzer connectors, and then check that
the Y-COP buzzer comes on. Replace
the Y-COP buzzer if it does not come on.
3. Measure the Y-COP buzzer input voltage.
Checking the Y-COP main wiring
harness
1. Remove the Y-COP main wiring harness
“1”.
Y-COP input voltage:
Red (R)–Black (B)
12 V (battery voltage)
R
B
a
1
Y-COP buzzer input voltage:
Yellow (Y)–Ground
12 V (battery voltage)
YP
Y
1
