Yamaha F150A - Installing the 6 Y8 Multifunction Meter Harness; Installing the Conventional Gauge Harness

3-12
Rigging grommet mounting
0
1
2
3
4
5
6
7
8
9
10
A

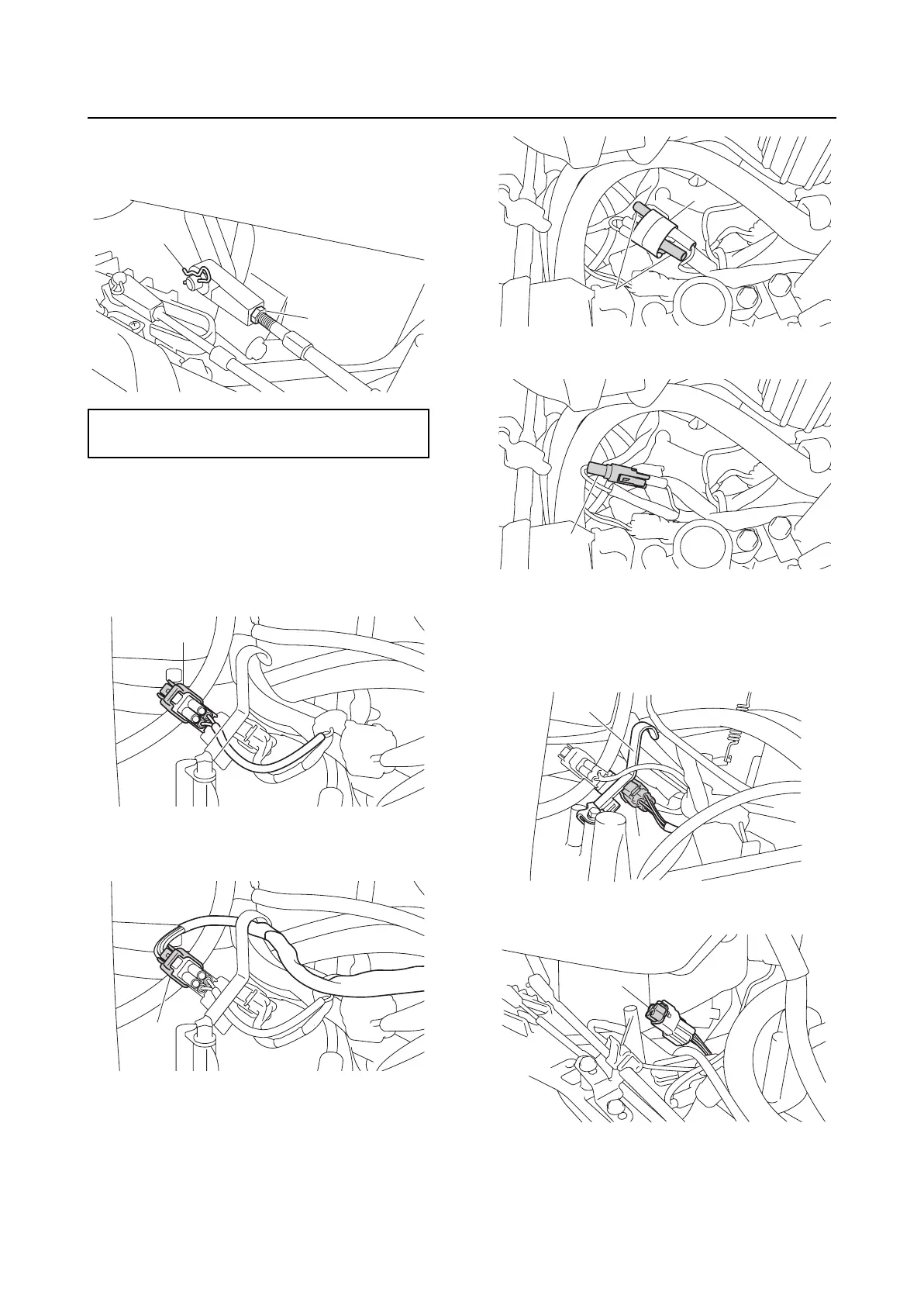

6. Install the clip “1”, and then tighten the
throttle cable locknut “2” to the specified
torque.
7. Check the throttle cable for proper opera-
tion.
Installing the 6Y8 Multifunction
Meter harness
1. Remove the cap “1”.
2. Connect the 6Y8 Multifunction Meter har-
ness coupler “a”.
3. Remove the yellow tape “1” and caps “2”.
4. Connect the trim sensor coupler “a”.
Installing the conventional gauge
harness
1. Remove the gauge harness coupler “a”
from the bracket “1”.
2. Remove the cap “1”.
3. Connect the gauge harness coupler “a”.
Throttle cable locknut “2”:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
1
2
1
a
2
1
a
1
a
1
