Yamaha F150A - Installing the Propeller Shaft Housing Assembly

8-26
Drive shaft and lower case (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
5. Tighten the pinion nut “1” to the specified
torque.
6. Check that the drive shaft turns smoothly.

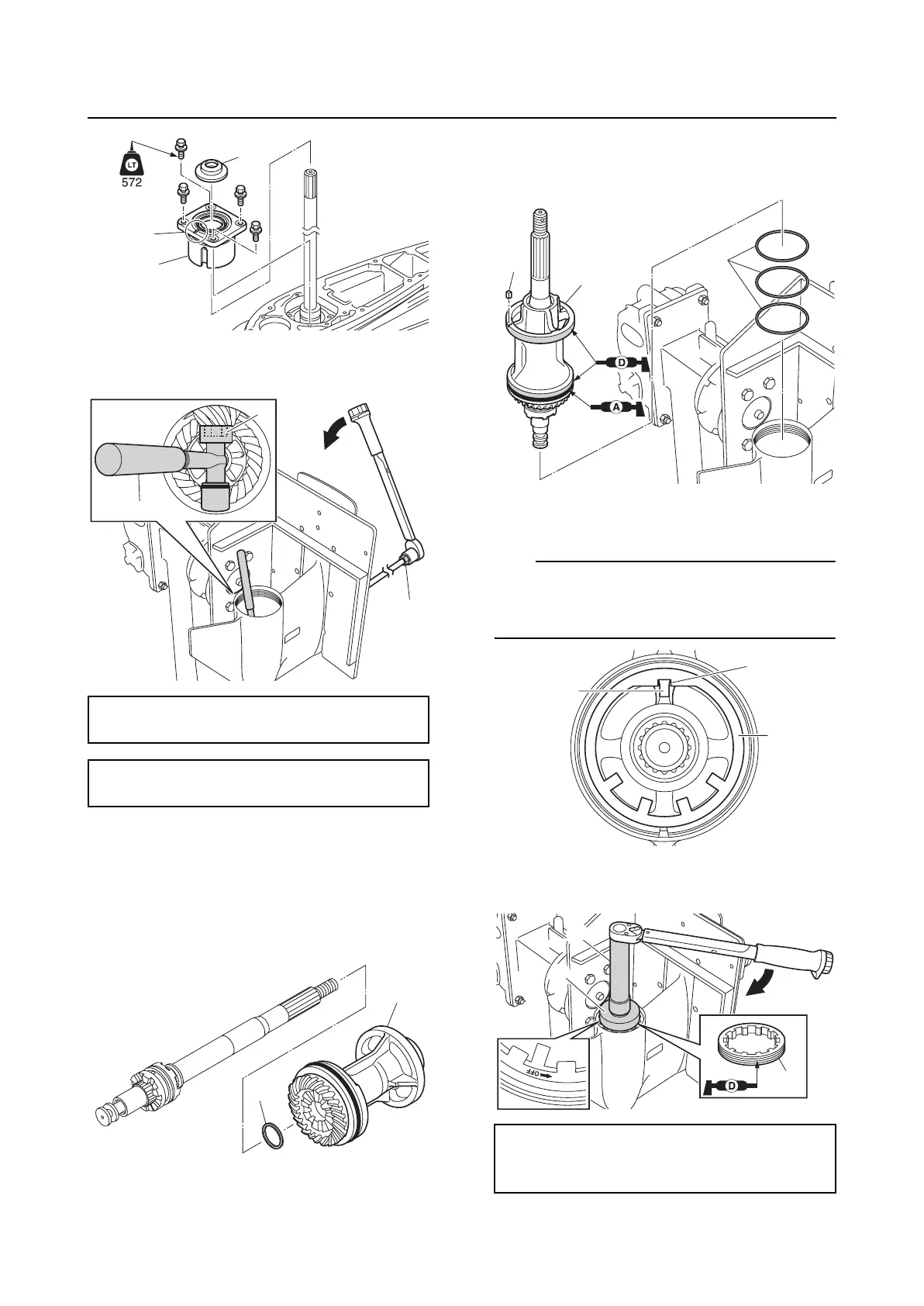

Installing the propeller shaft housing
assembly
1. Install the washer “1” and propeller shaft
housing assembly “2”.
2. Install the original reverse gear shims “1”,
propeller shaft housing assembly “2”, and
key “3”.
3. Install the claw washer “1”.
TIP:
Make sure to fit the protrusion “a” on the pro-
peller shaft housing into the slot “b” in the
claw washer “1”.
4. Install the ring nut “1”, and then tighten it
to the specified torque.
Drive shaft holder 6 “2”: 90890-06520
Pinion nut holder “3”: 90890-06715
Pinion nut “1”:
95 N·m (9.5 kgf·m, 70.1 ft·lb)
2
1
a
1
2
3
1
2
Ring nut wrench extension “2”:
90890-06513
Ring nut wrench 4 “3”: 90890-06512
1
2
3
1
a
b
1
2
3
