Yamaha F150A - Cylinder Block (F150 B, FL150 B)

7-58

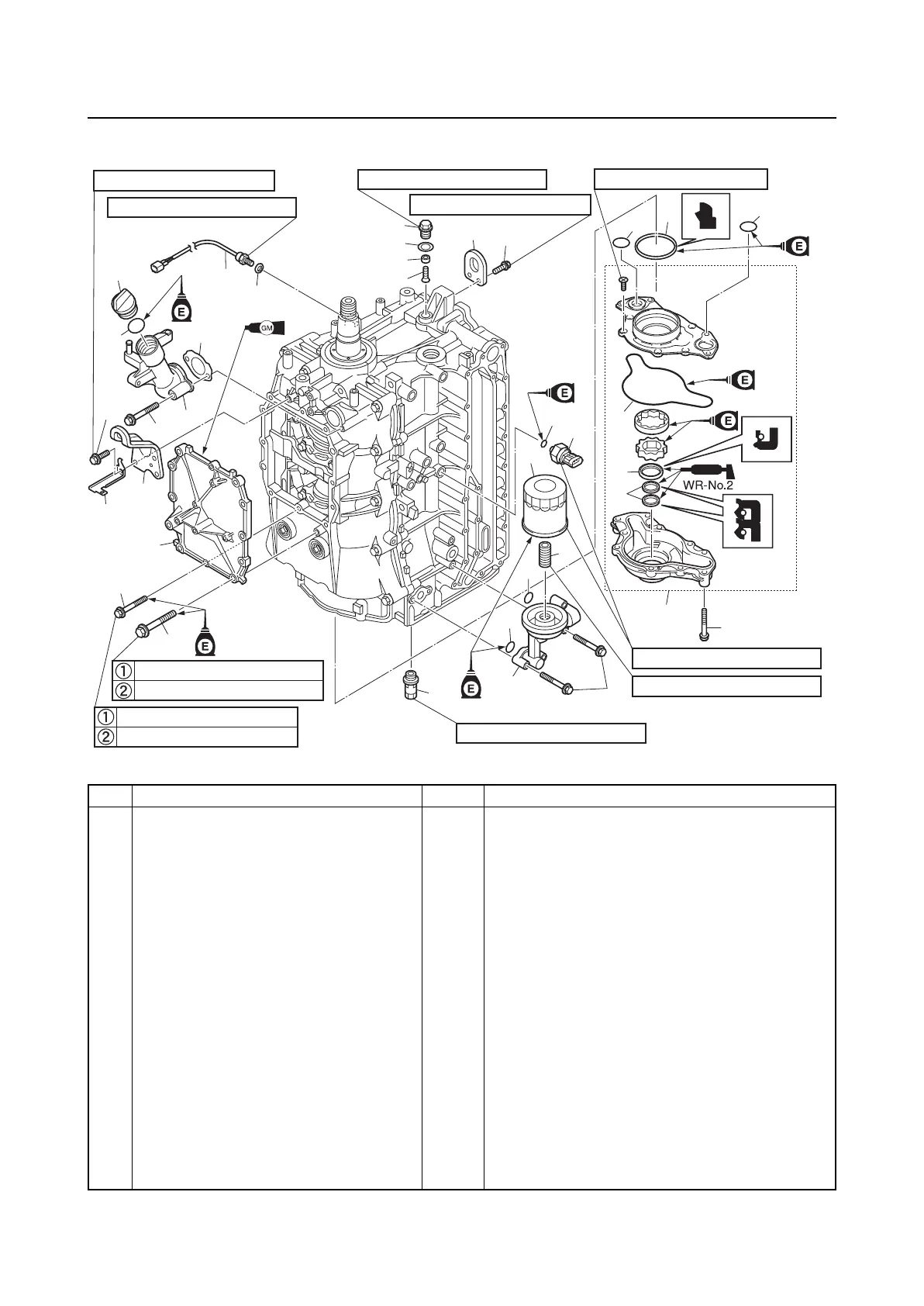

Cylinder block (F150B, FL150B)
Cylinder block (F150B, FL150B)
No. Part name Q’ty Remarks
1Bolt 10 M8 × 35 mm
2Bolt 2 M6 × 25 mm
3 Crankcase cover 1
4 Bracket 1
5 Engine hanger 1
6Bolt 5 M6 × 20 mm
7Bolt 2 M6 × 45 mm
8 Oil filler neck 1
9 Gasket 1 Not reusable
10 O-ring 1 Not reusable
11 Oil filler cap 1
12 Engine temperature sensor 1
13 Washer 1
14 Screw 1 M5 × 12 mm
15 Anode 1
16 Gasket 1 Not reusable
17 Plug 1 M14 × 12 mm
12
13
17
16
15
14
18
6
20
19
21
22
26
25
23
23
24
1
3
2
9
7
8
10
11
6
5
33
32
32
31
30
29
27
28
4
15 N·m (1.5 kgf·m, 11.1 ft·lb)
23 N·m (2.3 kgf·m, 17.0 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
34 N·m (3.4 kgf·m, 25.1 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
13 N·m (1.3 kgf·m, 9.6 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
31 N·m (3.1 kgf·m, 22.9 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
32 N·m (3.2 kgf·m, 23.6 ft·lb)
