Yamaha F150A - Timing Belt

7-16

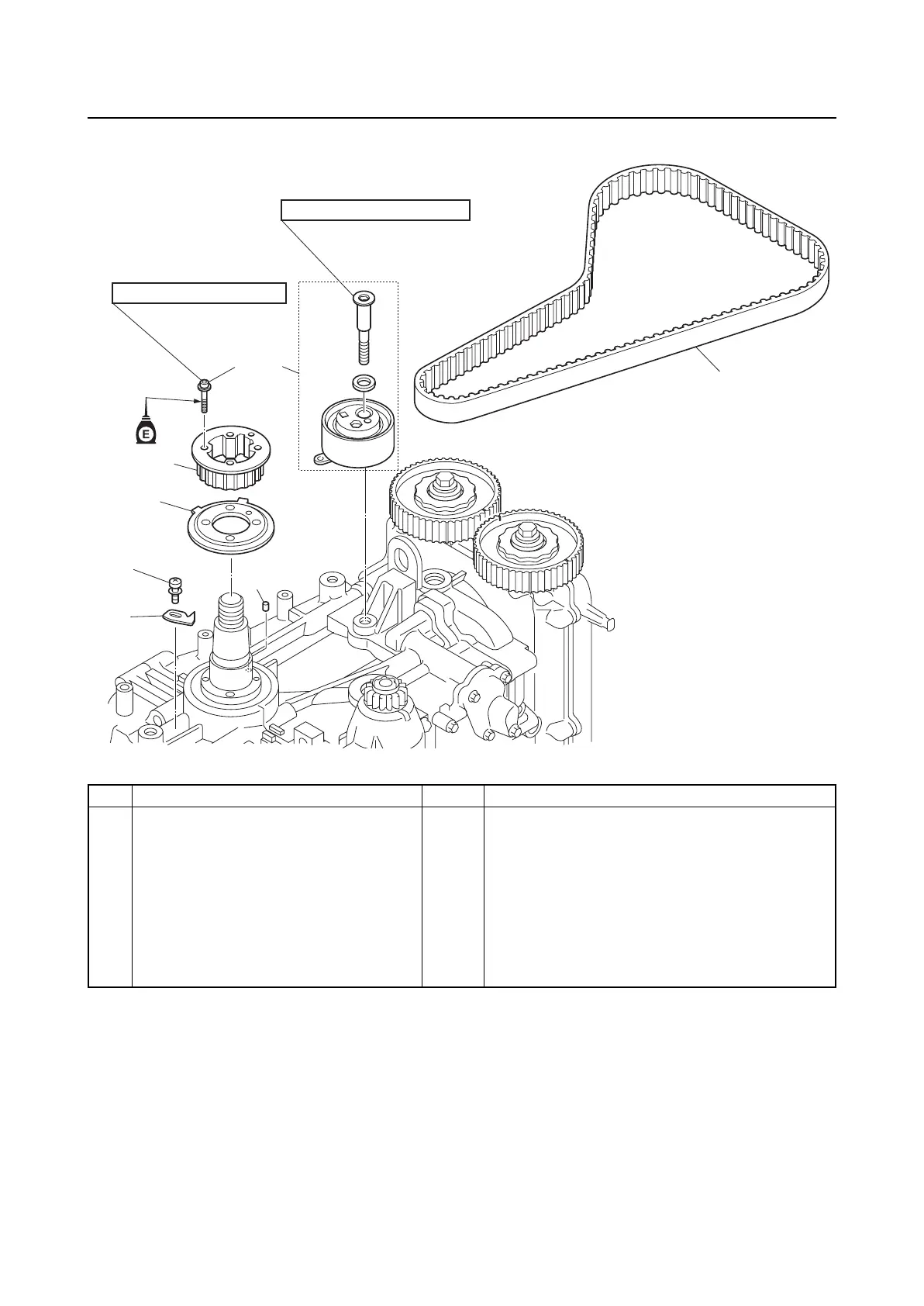

Timing belt
Timing belt
No. Part name Q’ty Remarks
1 Timing belt 1
2 Timing belt tensioner 1
3Plate 1
4Dowel 1
5Screw 1 M6 × 10 mm
6Plate 1
7 Drive sprocket 1
8Bolt 4 M5 × 40 mm
7 N·m (0.7 kgf·m, 5.2 ft·lb)
39 N·m (3.9 kgf·m, 28.8 ft·lb)
1
2
8
7
6
5
3
4
