Yamaha F150A - Flywheel Magnet

7-12

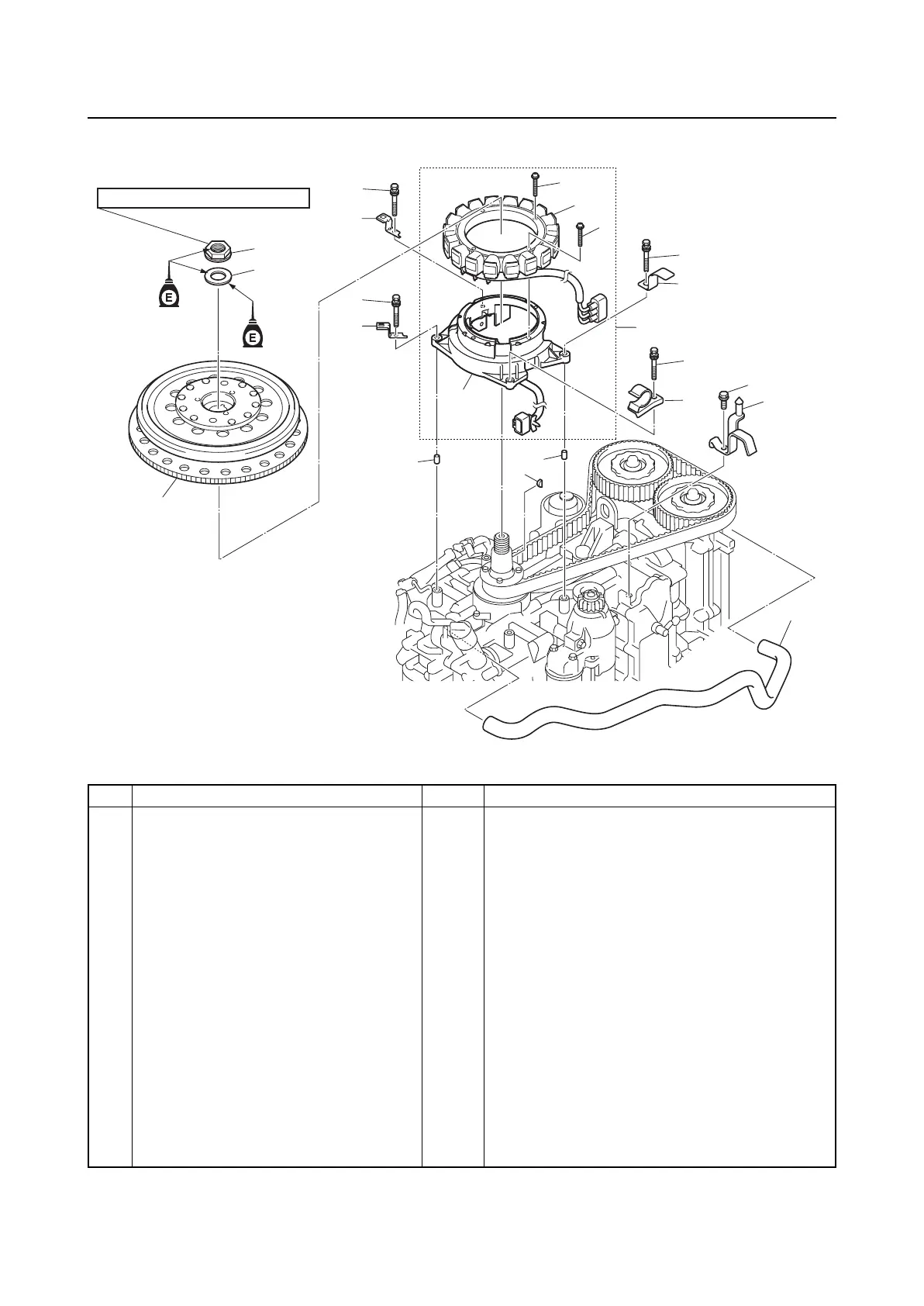

Flywheel magnet
Flywheel magnet
No. Part name Q’ty Remarks
1 Nut 1 Width across flats: 36 mm
2 Washer 1 Apply oil on both sides of the washer.
3 Base assembly 1
4Screw 4 M6 × 30 mm
5 Stator assembly 1
6 Pulser coil 1
7 Holder 1
8 Bracket 2
9Bolt 4 M6 × 35 mm
10 Holder 1
11 Dowel 2
12 Flywheel magnet 1
13 Woodruff key 1
14 Bolt 1 M6 × 16 mm
15 Bracket 1
16 Blowby hose 1
1
2
3
4
4
5
6
7
8
8
9
9
9
9
10
11
11
12
13
14
15
16
270 N·m (27.0 kgf·m, 199.1 ft·lb)
