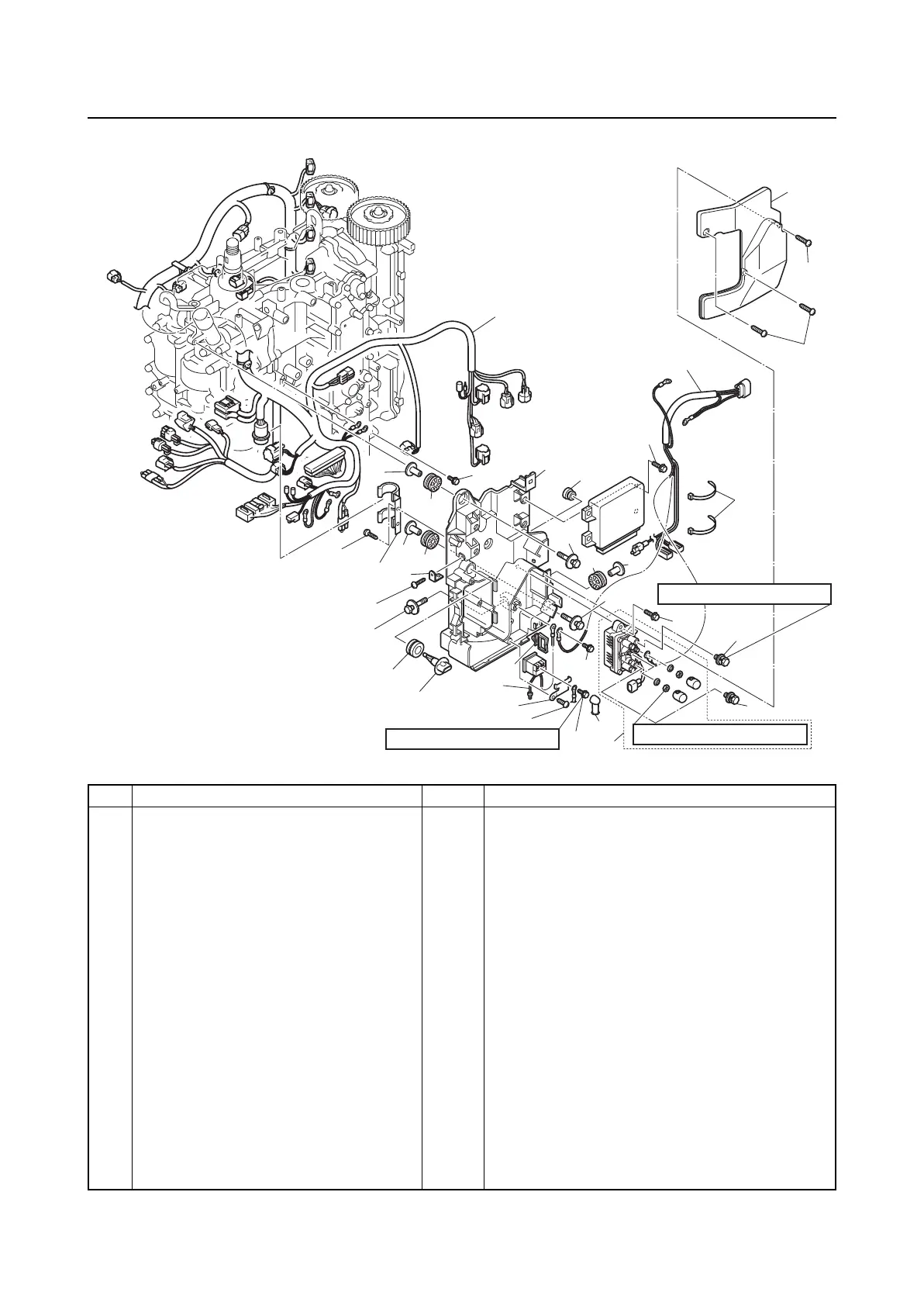

Yamaha F150A - Wiring Harness

7-28
Wiring harness
Wiring harness
No. Part name Q’ty Remarks
1 Wiring harness 1
2Cover 1
3Screw 3 ø6 × 19 mm
4 Wiring harness 1
5Bolt 4 M6 × 16 mm
6 Plastic tie 2
7Bolt 2 M6 × 20 mm
8Bolt 2 M6 × 10 mm
9 PTT relay 1
10 Cap 1
11 Bolt 1 M6 × 10 mm
12 Screw 1 ø6 × 19 mm
13 Bracket 1
14 Starter relay 1
15 Holder 1
16 Bolt 1 M6 × 12 mm
17 Bolt 3 M6 × 35 mm
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
22
21
20
17
18
19
17
16
10
7
8
8
4
1
5
6
3
2
18
24
23
19
18
26
25
17
19
11
12
13
14
28
27
15
9
3
4 N·m (0.4 kgf·m, 3.0 ft·lb)
