Yamaha F150A - Vapor Separator and High-Pressure Fuel Pump

6-42
Vapor separator and high-pressure fuel pump
0
1
2
3
4
5
6
7
8
9
10
A

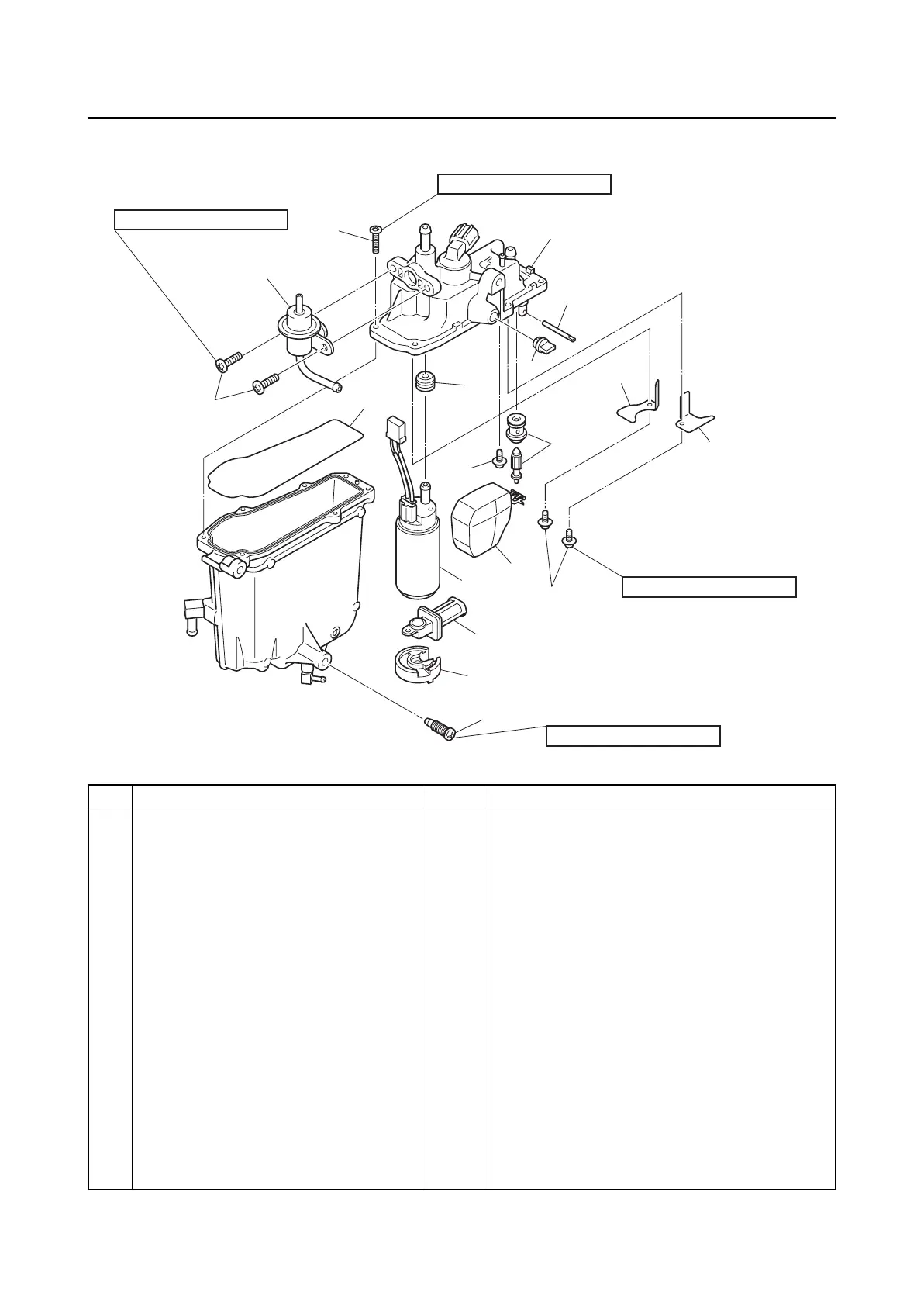

Vapor separator and high-pressure fuel pump
No. Part name Q’ty Remarks
1Screw 2 M6
× 12 mm
2 Pressure regulator 1
3Screw 7 M4
× 16 mm
4 Cover assembly 1
5 Gasket 1 Not reusable
6Pin 1
7Cap 1
8Grommet 1
9Plate 1
10 Plate 1
11 Screw 3 M4
× 8mm
12 Needle valve assembly 1
13 Float 1
14 High-pressure fuel pump 1
15 Filter 1
16 Filter holder 1
17 Drain screw 1
5
1
2
3
4
6
7
8
9
10
11
11
12
13
14
15
16
17
2 N·m (0.2 kgf·m, 1.5 ft·lb)
2 N·m (0.2 kgf·m, 1.5 ft·lb)
2 N·m (0.2 kgf·m, 1.5 ft·lb)
5 N·m (0.5 kgf·m, 3.7 ft·lb)
