Yamaha F150A - Fuel Filter

6-7

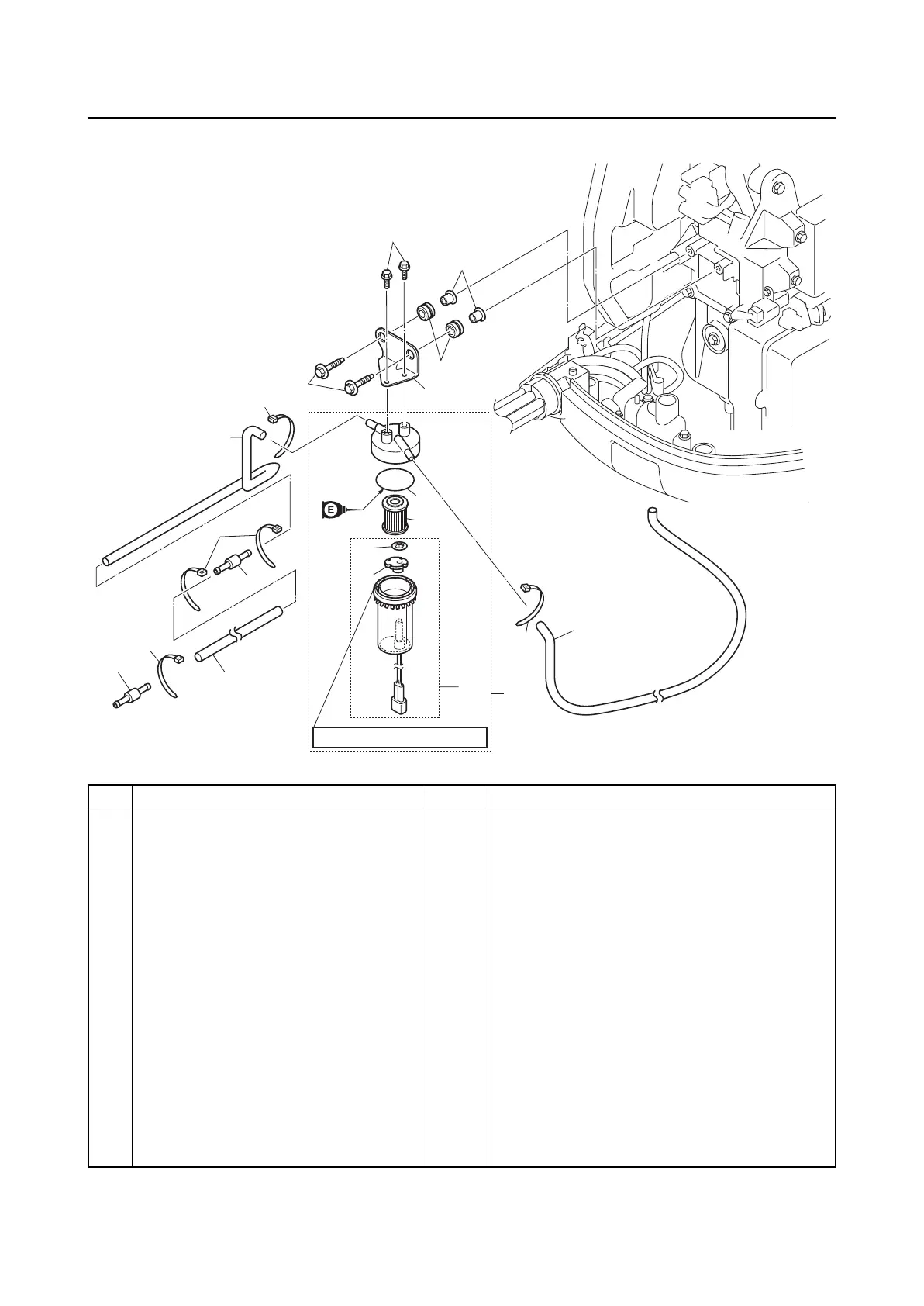

Fuel filter
Fuel filter
No. Part name Q’ty Remarks
1 Joint 2
2 Plastic tie 5
3 Hose 1 Joint to joint
4 Hose 1 Joint to fuel filter assembly
5Bolt 2 M6 × 30 mm
6Bolt 2 M6 × 14 mm
7 Collar 2
8Grommet 2
9 Bracket 1
10 Hose 1 Fuel filter assembly to joint
11 Fuel filter assembly 1
12 O-ring 1 Not reusable
13 Fuel filter element 1
14 Fuel cup assembly 1
15 Clip 1
16 Float 1
2
2
4
6
8
9
10
5
7
11
13
15
16
14
12
1
2
1
2
3
5 N·m (0.5 kgf·m, 3.7 ft·lb)
