9-3

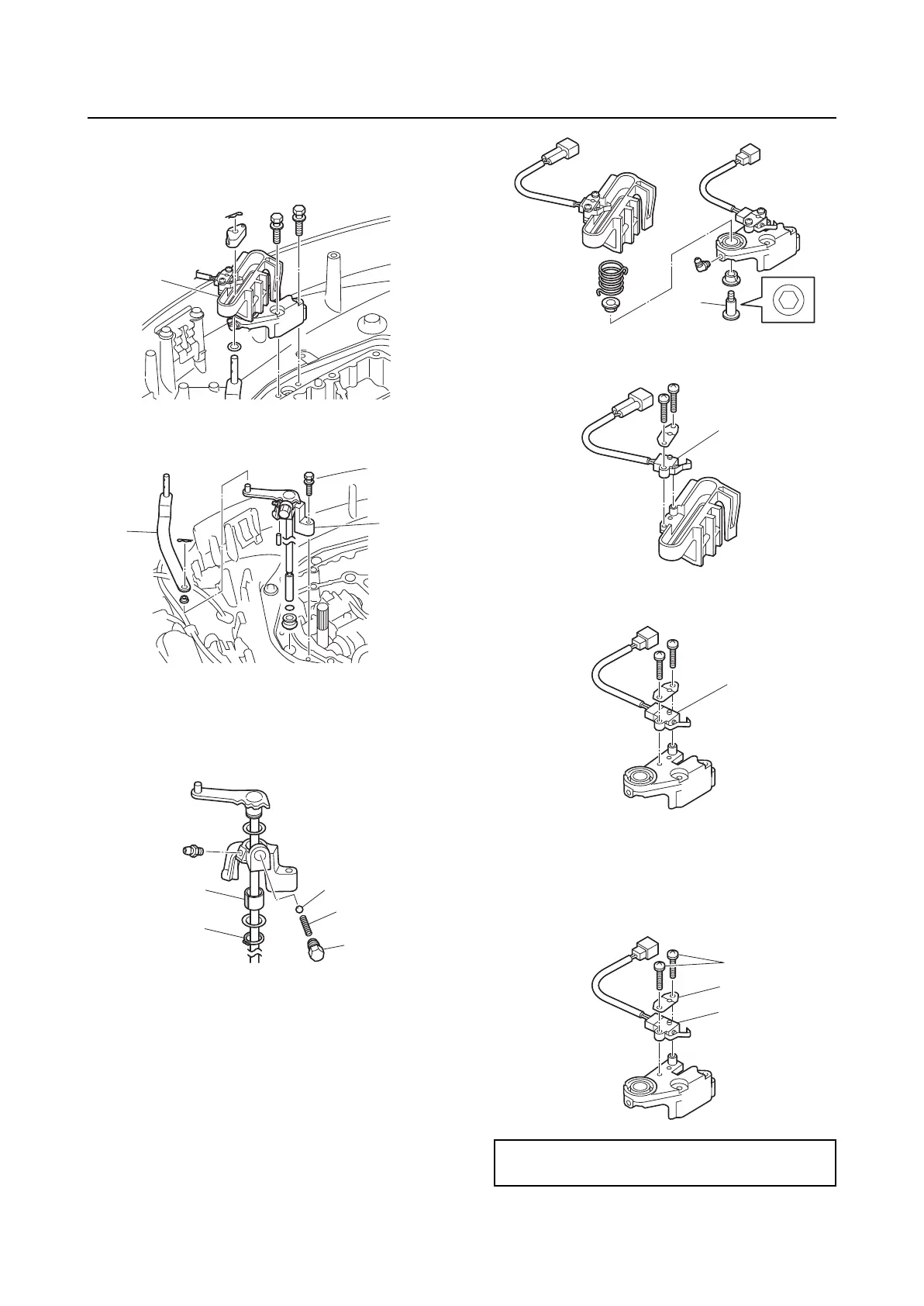

Shift rod and shift bracket
Removing the shift rod and shift
bracket
1. Remove the shift bracket assembly “1”.
2. Remove the shift lever “1” and shift rod
assembly “2”.
3. Remove the shift rod detent bolt “1”,
spring “2”, and ball “3”.
4. Remove the circlip “4” and bushing “5”.
Disassembling the shift bracket
1. Remove the bolt “1”, and then disassem-
ble the shift bracket assembly.
2. Remove the shift position switch “1”.
3. Remove the shift cut-off switch “1”.
Assembling the shift bracket
1. Install the shift cut-off switch “1” and plate
“2”, and then tighten the shift cut-off
switch screws “3” to the specified torque.
1
1
2
1
2
3
4
5
Shift cut-off switch screw “3”:
2.5 N·m (0.25 kgf·m, 1.84 ft·lb)
1
1
1
1
3
2
To Next Page
