5-1
Electrical component and wiring harness routing

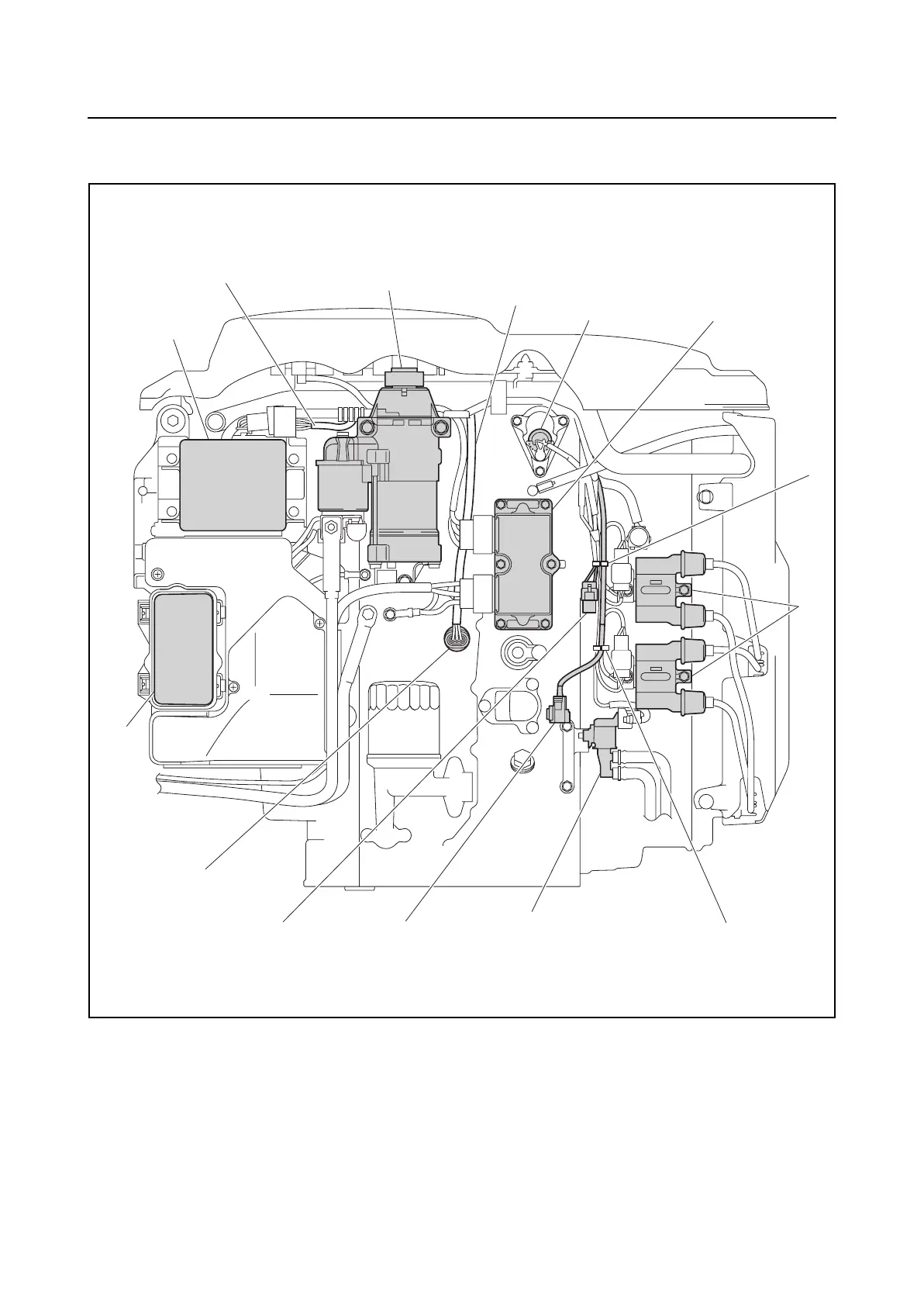

Electrical component and wiring harness routing
Port
1. Engine ECM
2. Starter motor
3. Thermoswitch
4. Rectifier Regulator
5. Ignition coil
6. Vapor shut-off valve
7. Speed sensor coupler
8. Water pressure sensor coupler
9. Oil pressure sensor
10. Fuse holder
A. Run the pulser coil lead under the
breather hose and the wiring harness.
B. Run the oil pressure sensor lead behind
the Rectifier Regulator coupler.
1
2
3
4
5
D
B
A
E
6
7
8
9
10
