Shimming (counter rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
Shimming procedure
• Before selecting the forward gear shims (T2) and reverse gear shims (T1), make sure to select the
pinion shims (T3).
• When assembling the lower unit to measure the backlash after selecting the pinion shims (T3), do
not apply gear oil, grease, or sealant to the parts.
• When assembling the lower unit after shimming is completed, make sure to apply gear oil, grease,
and sealant to the specified areas.

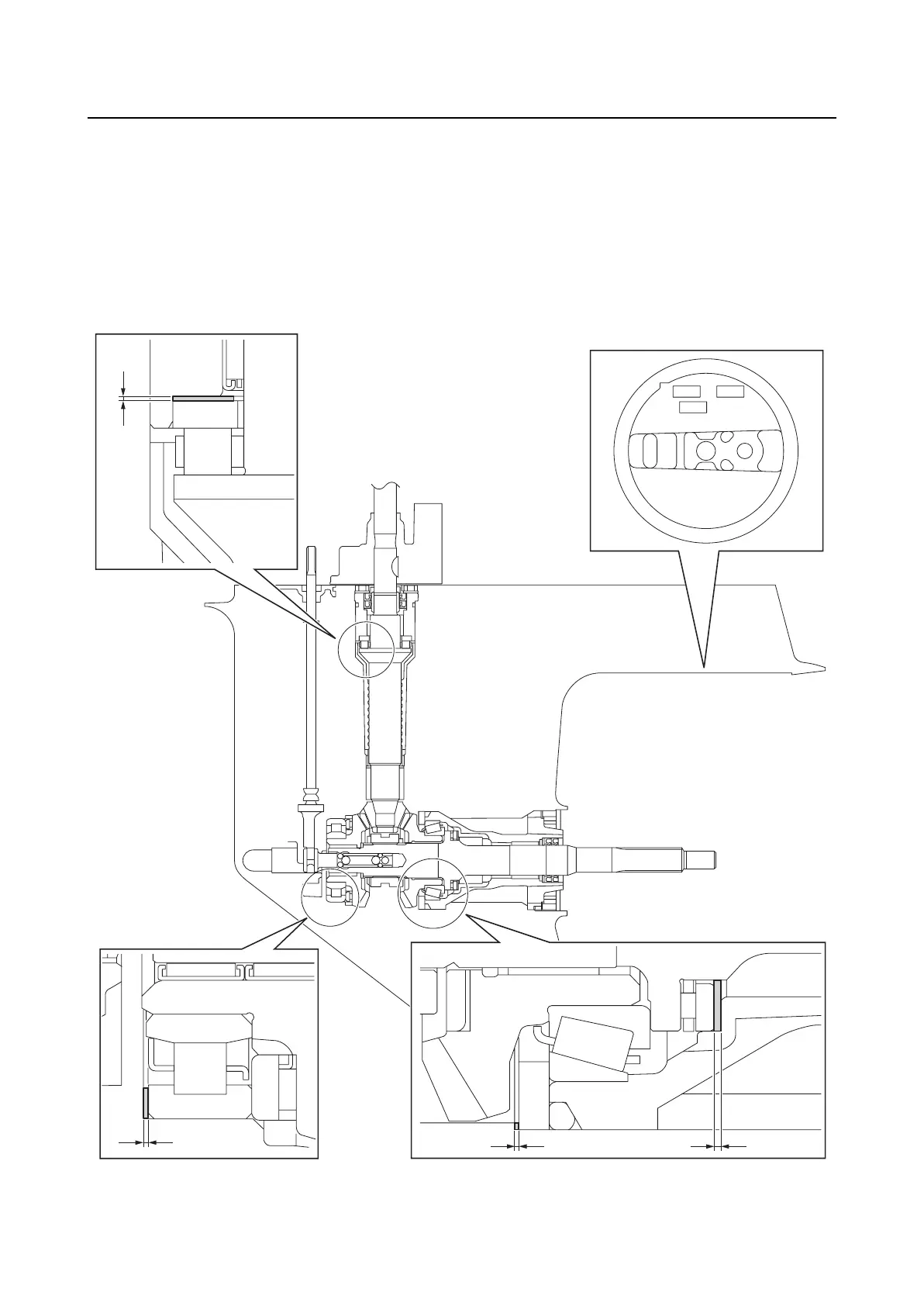

Shim location
T1
P
FR
T3
T2
T4
To Next Page
