Yamaha F150A - Exhaust Cover

7-48

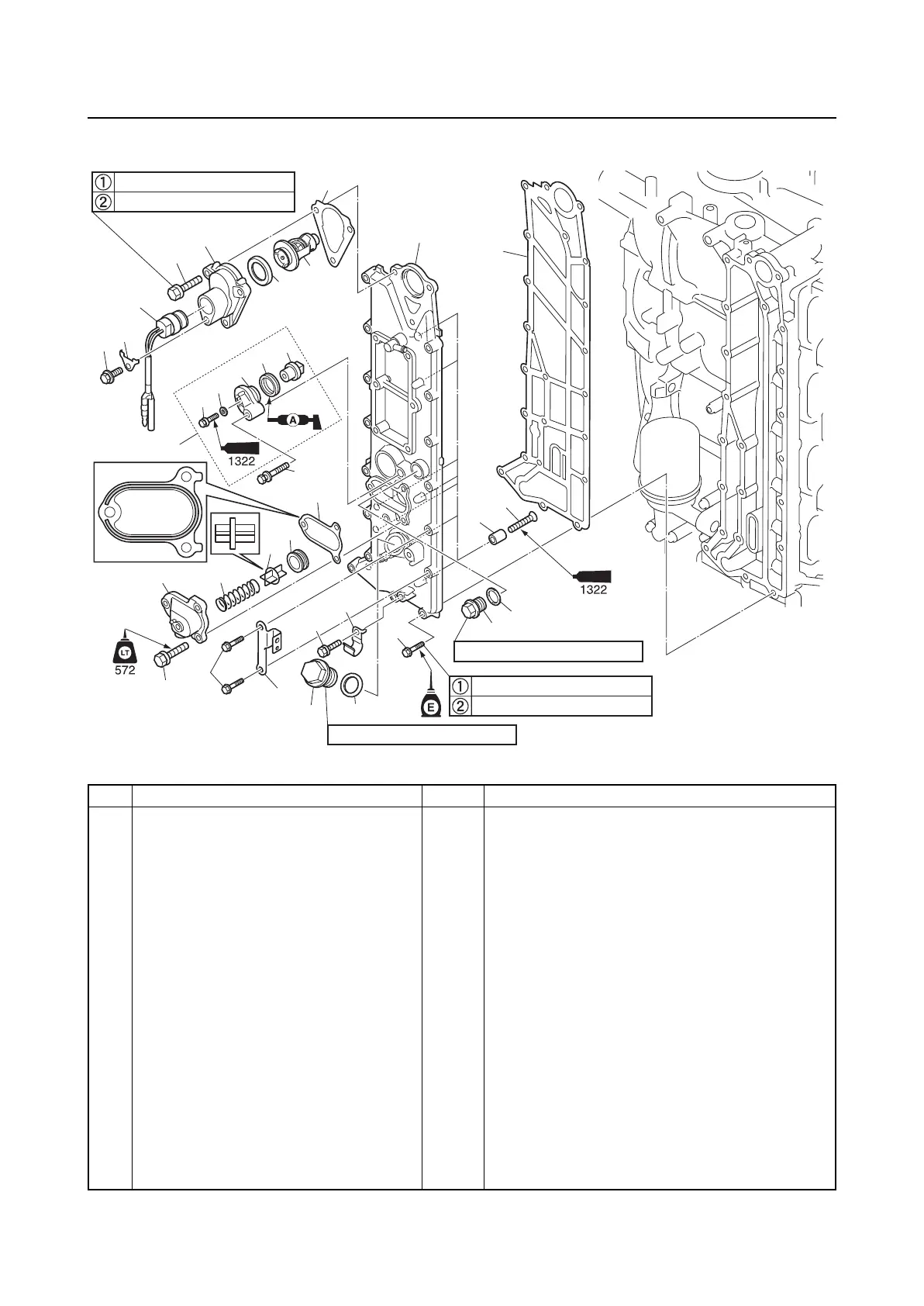

Exhaust cover
Exhaust cover
No. Part name Q’ty Remarks
1Bolt 1 M6 × 16 mm
2 Holder 1
3Thermoswitch 1
4Bolt 3 M6 × 30 mm
5Cover 1
6 Gasket 1 Not reusable
7Thermostat 1
8 Gasket 1 Not reusable
9 Anode assembly 1
10 Bolt 1 M6 × 20 mm
11 Gasket 1 Not reusable
12 Cover 1
13 Grommet 1
14 Anode 1
15 Bolt 1 M8 × 40 mm
16 Bolt 3 M6 × 20 mm
17 Cover 1
30
31
32
33
25
24
29
28
21
20
19
18
17
16
27
22
26
22
23
4
5
7
8
6
3
1
2
15
14
13
12
11
10
9
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
56 N·m (5.6 kgf·m, 41.3 ft·lb)
23 N·m (2.3 kgf·m, 17.0 ft·lb)
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
