Yamaha F150A - Clamp Bracket

3-6

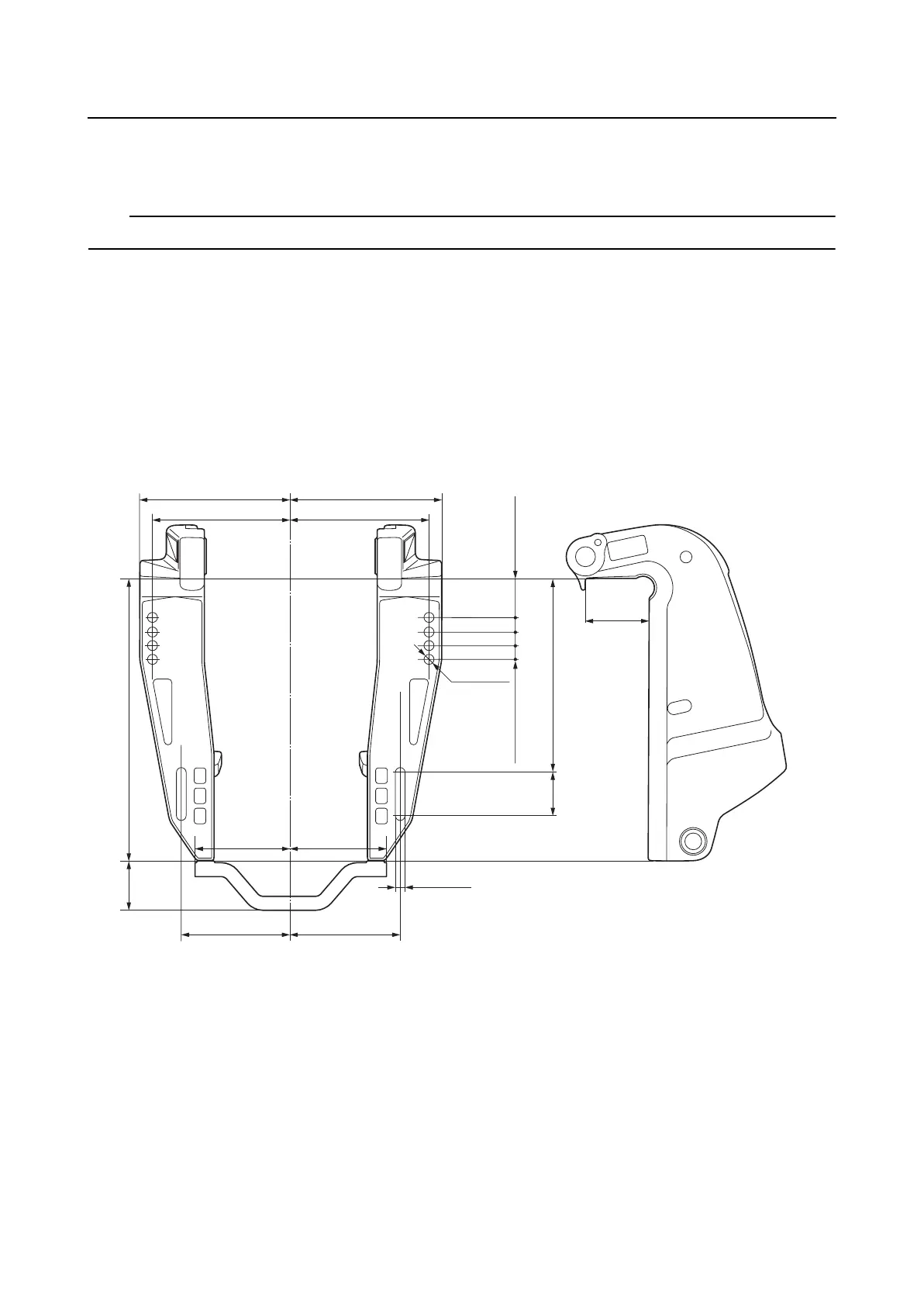

External dimensions
0
1
2
3
4
5
6
7
8
9
10
A
Clamp bracket
TIP:
The dimension values may include reference values.
82 (3.2)
13 (0.5)
180 (7.1)
163.5 (6.4)
254 (10.0)
55.5 (2.2)
367 (14.4)
52 (2.0)
163.5 (6.4)
125.4 (4.9)125.4 (4.9)
102 (4.9) 102 (4.9)
180 (7.1)
13 (0.5)
50.8 (2.0)
18.5 (0.7)
mm (in)
