Crate handling

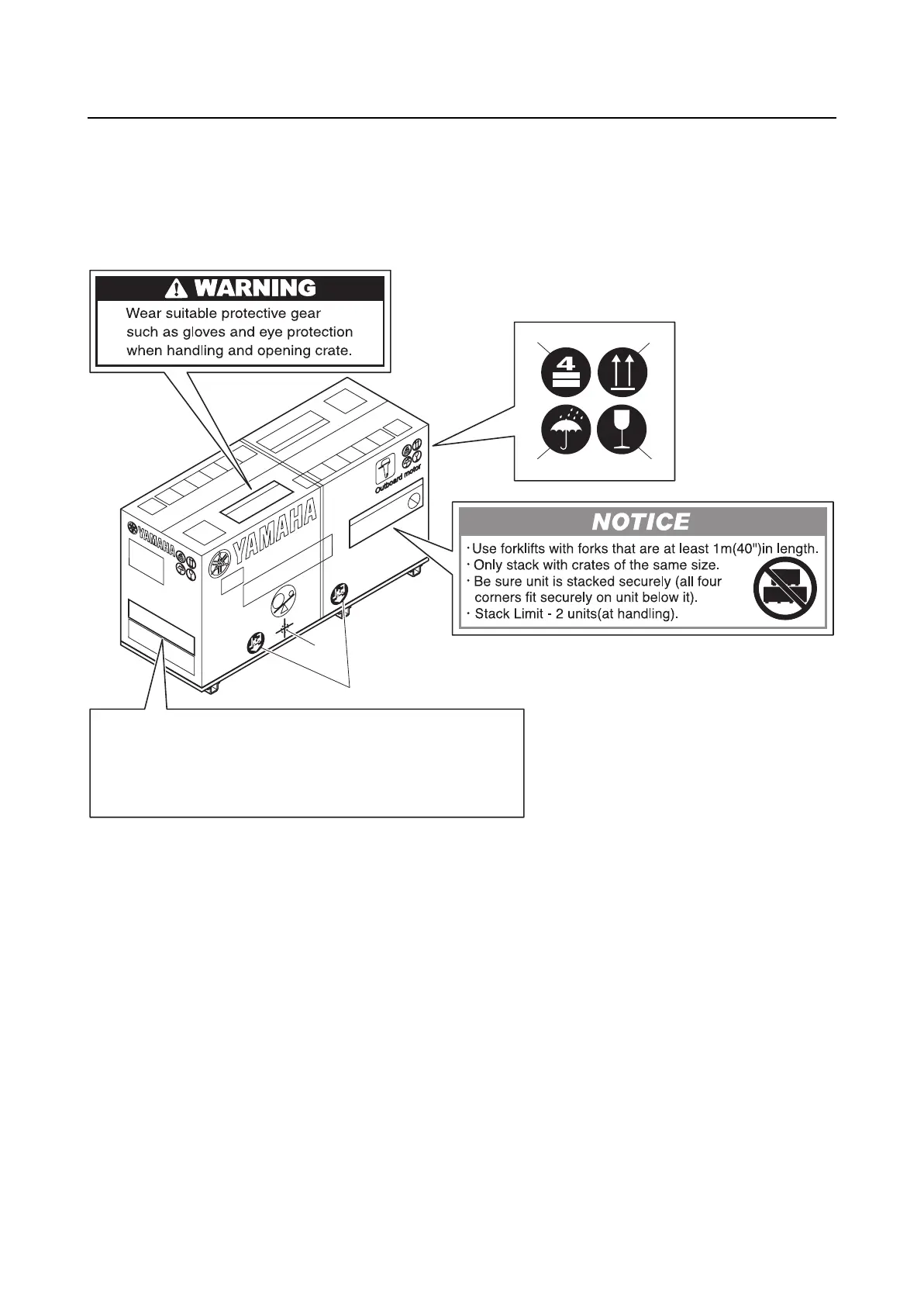

Crate top cover pictograph description
The following pictographs are important when handling the crate.
Read the notice and understand what each pictograph means to prevent damage to the outboard
motor when handling, transporting, and storing the crate.
1. !WARNING
Wear suitable protective gear such as
gloves and eye protection when handling
and opening crate.
2. NOTICE
• Use forklifts with forks that are at least
1 m (40 in) in length.
• Only stack with crate of the same size.
• Be sure unit is stacked securely (all four
corners fit securely on unit below it).
• Stack Limit - 2 units (at handling).
3. IMPORTANT
This unit delivered to carrier in a good
condition.
For protection against loss due to dam-
age, inspect thoroughly.
If damage is noted, make note on freight
bill.
Shipper assumes no further liability to
the transportation company.
Your claim should be filed against carrier
for damage of any nature.
4. Lifting fork insert position
5. Product barycentric position
6. Stack limit: Maximum 4 units for storage
7. Upward indication
8. Care handling indication
9. Water avoidance indication
IMPORTANT
This unit delivered to carrier in a good condition.
For protection against loss due to damage, inspect thoroughly.
If damage is noted, make note on freight bill.
Shipper assumes no further liability to the transportation company.
Your claim should be filed against carrier for damage of any nature.
