Yamaha F150A - Starter Motor

5-33

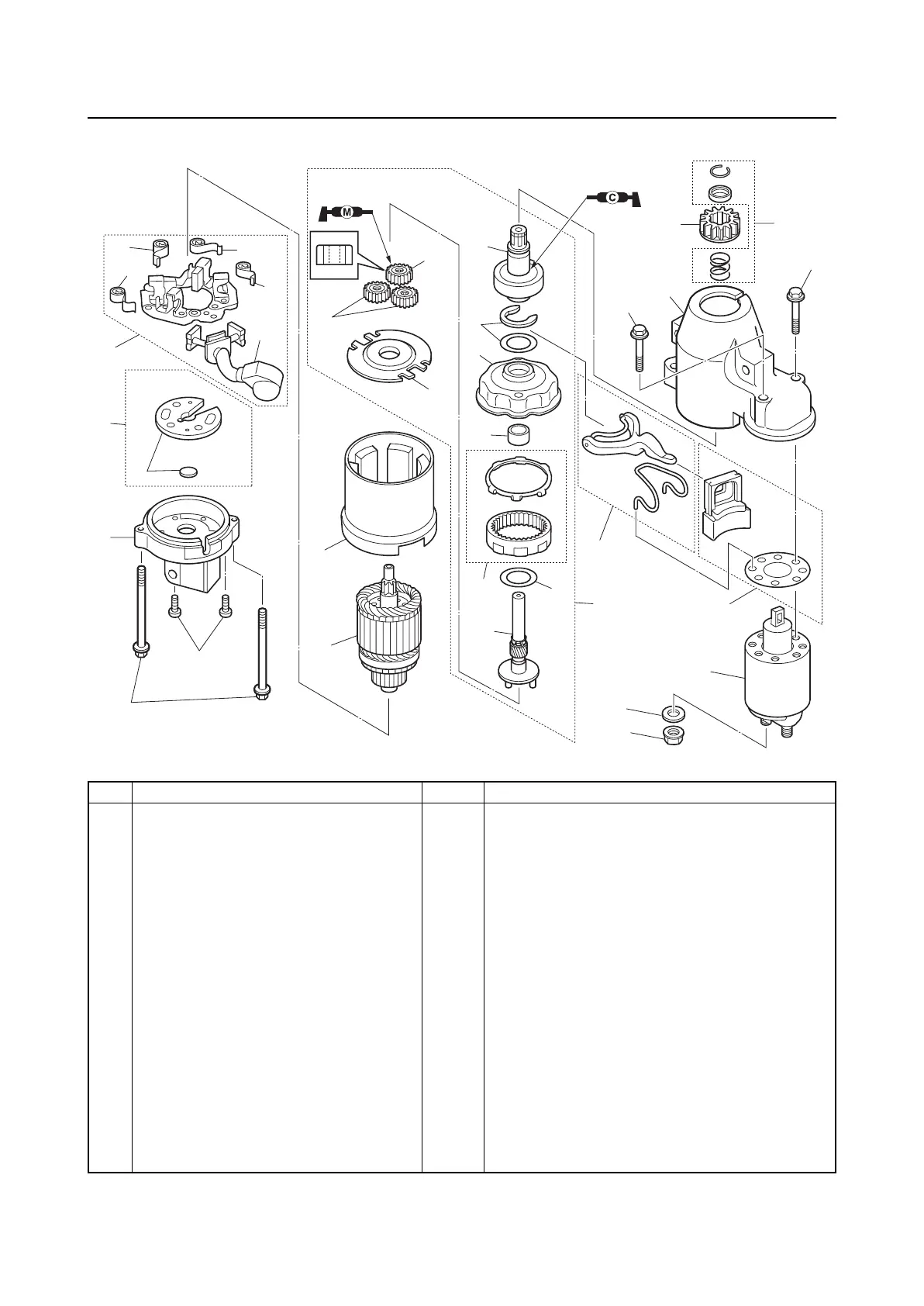

Starter motor
Starter motor
No. Part name Q’ty Remarks
1 Brush spring 4
2 Brush assembly 1
3 Brush holder assembly 1
4 Starting motor gear assembly 1
5 Washer set 1
6 Bracket 1
7Bolt 2 M6  117 mm
8Screw 2 M4  16 mm
9 Planetary gear 3
10 Plate 1
11 Stator 1
12 Armature 1
13 Clutch assembly 1
14 Washer set 1
15 Bracket 1
16 Bracket 1
17 Outer gear 1
17
18
12
7
8
6
5
14
3
1
1
1
1
2
9
9
10
11
14
25
26
27
24
23
16
15
13
14
21
22
21
19
20
4
