Yamaha F150A - Propeller Shaft Housing (Regular Rotation Model)

8-13

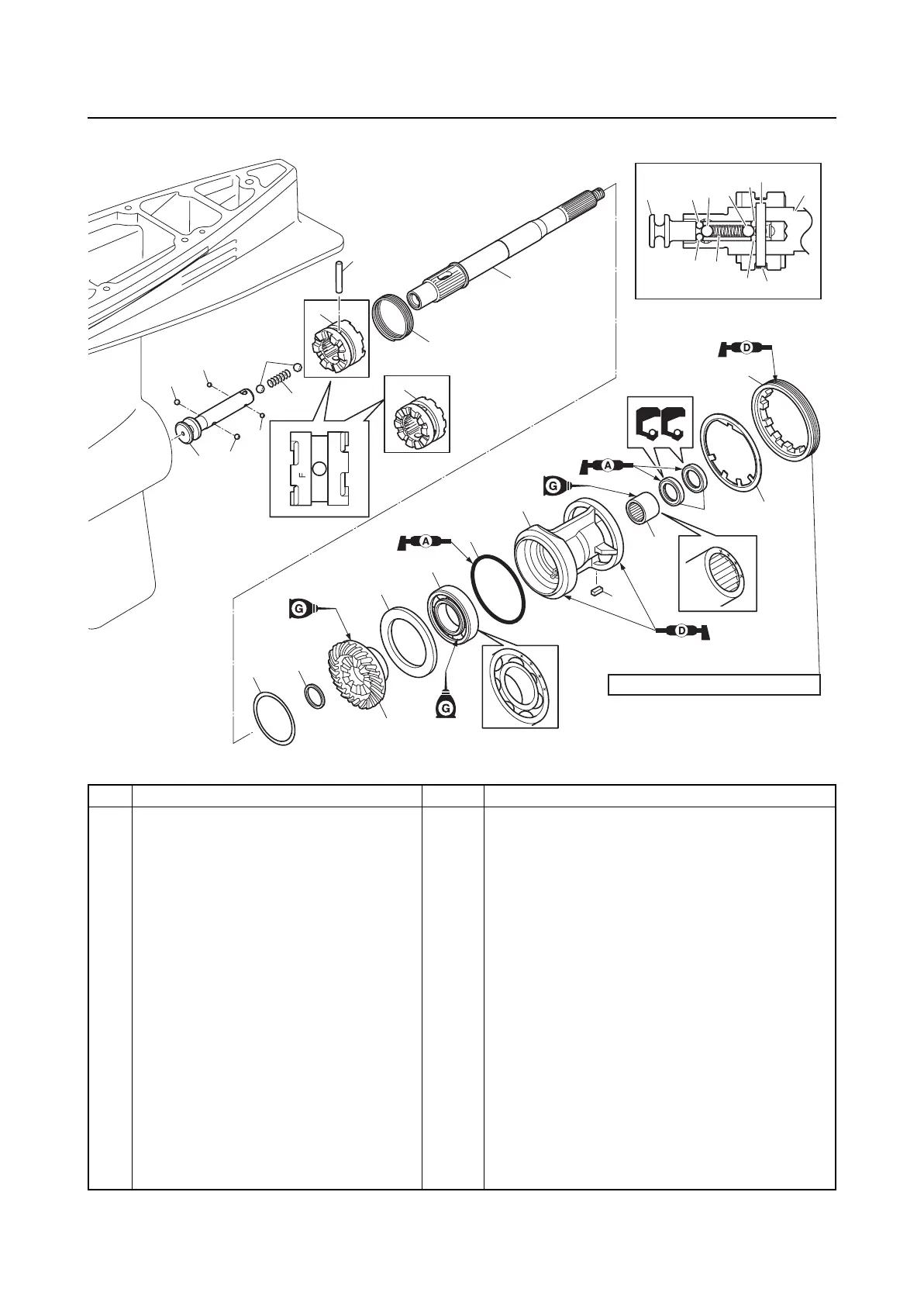

Propeller shaft housing (regular rotation model)
Propeller shaft housing (regular rotation model)
No. Part name Q’ty Remarks
1 Slider 1
2 Ball 2 5.54 mm (0.22 in) (reference data)
3 Ball 2 4.74 mm (0.19 in) (reference data)
4 Ball 2 8.72 mm (0.34 in) (reference data)
5Spring 1
6 Dog clutch 1 F150A: Six teeth
7 Dog clutch 1 F150B: Ten teeth
8Cross pin 1
9Spring 1
10 Propeller shaft 1
11 Reverse gear shim (T2) —
12 Washer 1
13 Reverse gear 1
14 Thrust washer 1
15 Ball bearing 1 Not reusable
16 O-ring 1 Not reusable
17 Propeller shaft housing 1
1
2
2
3
5
3
4
6
8
9
10
11
13
14
15
16
17
20
21
22
12
25
4
3
8
10
3
9
4
18
12
19
7
145 N·m (14.5 kgf·m, 106.9 ft·lb)
