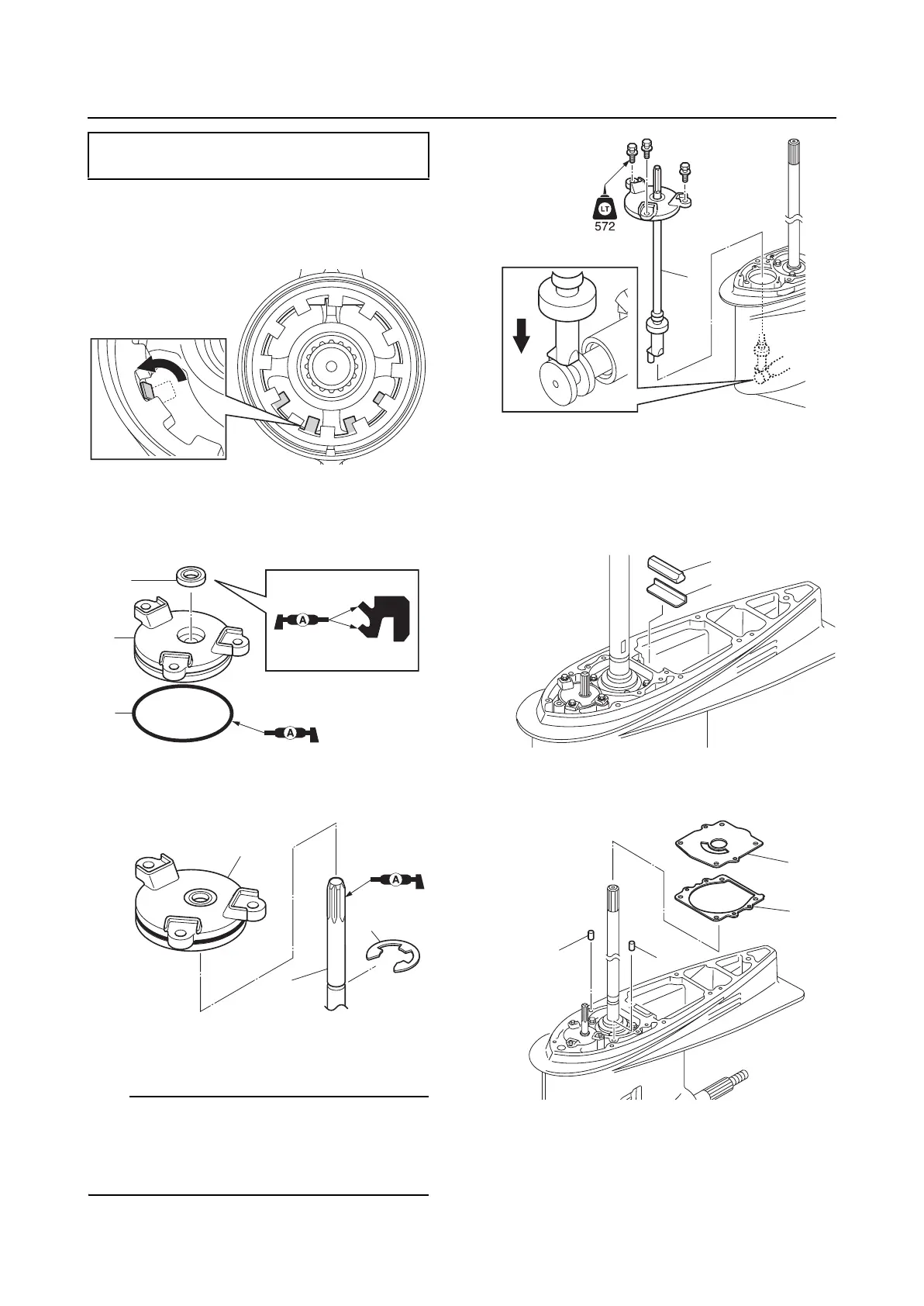

Yamaha F150A - Installing the Shift Rod; Installing the Water Pump

8-27
Drive shaft and lower case (regular rotation model)
5. Bend one of the 4 tabs on the claw
washer outward, and then bend the other
3 tabs inward.
Installing the shift rod
1. Install a new O-ring “1” and a new oil seal
“2” to the plate “3”.
2. Install the E-clip “1” and plate “2” to the
shift rod “3”.
3. Install the shift rod “1”.
TIP:
Make sure to install the shift rod “1” in the
proper orientation. Installation orientation is
different between the counter rotation model
and the regular rotation model.
4. Check that the shift rod operates
smoothly.
Installing the water pump
1. Install the plate “1” and rubber seal “2”.
2. Install the dowels “1”, a new gasket “2”,
and the outer plate cartridge “3”.
3. Install the Woodruff key “1”.
Ring nut “1”:
145 N·m (14.5 kgf·m, 106.9 ft·lb)
1
2
3
1
2
3
1
1
2
1
1
2
3
